FLEXシリーズ 拡張温度に対応したシステム向け、Core i3-8100T, Pentium Gold G5400T搭載
特長
■幅357×高さ88×奥行230ｍｍ 7．23リットル
■Core i3-8100T / Pentium Gold G5400T 3.1GHz CPU
■チップセット Q370
■PCIe3.0[x8] x 2, PCIe3.0[x4] x 2
■2.5" SATA HDD ベイ(Hot-Swappable) x 4
■M.2 2280( PCIe Gen 3.0 x4 NVMe SSD対応) x 2
■拡張動作温度 -20 ～ 50℃ (SSD搭載)
■Wall/Rack取付対応
仕様
■CPU Core i3-8100T 3.1GHz / Pentium Gold G5400T 3.1GHz
■チップセット Q370
■メモリ 288pin DDR4 2666/2400 MHz U-DIMM x 2 (最大64GB)
■ストレージ 2.5" SATA HDD ベイ x 4
■拡張スロット
PCIe3.0[x8] x 2 , PCIe3.0[x4] x 2 (対応サイズ：68 x 167mm(最大))
M.2 2280(PCIe3.0[x4] NVMe SSD) x 2
■I/Oコネクタ
10/100/1000Base-T x 2 (RJ-45), USB3.0 x 6, RS-232 x 2, HDMI x 1,オーディオ Mic In / Line out
■入力電源 ATX 250W AC入力 115~230V
■寸法/重量
357mm(W) x 88mm(H) x 230mm(D) / 4kg
■動作温度 -20 ～ 50℃ (拡張温度SSD使用時)
■衝撃 10G (11ms)
■振動 1.5G
このカタログについて
| ドキュメント名 | IEI ファンレス組込みPC FLEX-BX200-Q370 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 573.4Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

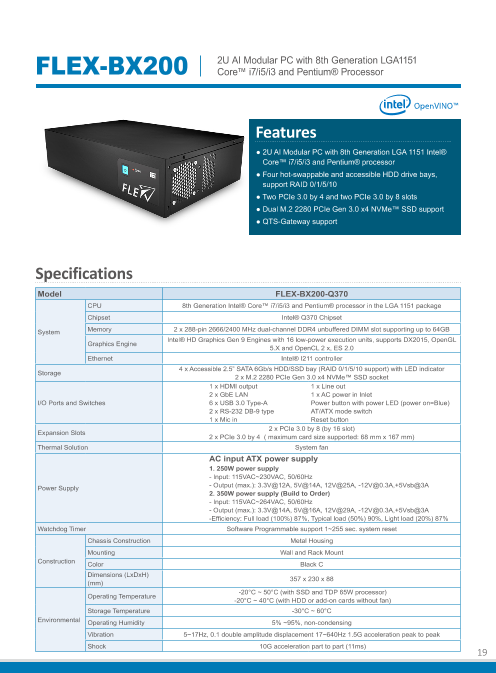

Page1
FLEX-BX200 2U AI Modular PC with 8th Generation LGA1151 Core™ i7/i5/i3 and Pentium® Processor
Features
● 2U AI Modular PC with 8th Generation LGA 1151 Intel®
Core™ i7/i5/i3 and Pentium® processor
● Four hot-swappable and accessible HDD drive bays,
support RAID 0/1/5/10
● Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
● Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
● QTS-Gateway support
Specifications
Model FLEX-BX200-Q370
CPU 8th Generation Intel® Core™ i7/i5/i3 and Pentium® processor in the LGA 1151 package
Chipset Intel® Q370 Chipset
System Memory 2 x 288-pin 2666/2400 MHz dual-channel DDR4 unbuffered DIMM slot supporting up to 64GB
Graphics Engine Intel® HD Graphics Gen 9 Engines with 16 low-power execution units, supports DX2015, OpenGL 5.X and OpenCL 2 x, ES 2.0
Ethernet Intel® I211 controller
Storage 4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support) with LED indicator2 x M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD socket
1 x HDMI output 1 x Line out
2 x GbE LAN 1 x AC power in Inlet
I/O Ports and Switches 6 x USB 3.0 Type-A Power button with power LED (power on=Blue)
2 x RS-232 DB-9 type AT/ATX mode switch
1 x Mic in Reset button
Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm)
Thermal Solution System fan
AC input ATX power supply
1. 250W power supply
- Input: 115VAC~230VAC, 50/60Hz
Power Supply - Output (max.): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A
2. 350W power supply (Build to Order)
- Input: 115VAC~264VAC, 50/60Hz
- Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A
-Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87%
Watchdog Timer Software Programmable support 1~255 sec. system reset
Chassis Construction Metal Housing
Mounting Wall and Rack Mount
Construction Color Black C
Dimensions (LxDxH)
(mm) 357 x 230 x 88
Operating Temperature -20°C ~ 50°C (with SSD and TDP 65W processor) -20°C ~ 40°C (with HDD or add-on cards without fan)
Storage Temperature -30°C ~ 60°C
Environmental Operating Humidity 5% ~95%, non-condensing
Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Shock 10G acceleration part to part (11ms)
19
W
NE
Page2
I/O Interface
HDD status LED
Power button with power LED
GbE LAN
2 x PCIe 3.0 x8 (x16 slot)
2 x PCIe 3.0 x4 (x4 slot)
AC Inlet
4 x Hot swappable 2.5”HDD HDMI 2.0 output 2 x RS-232
6 x USB 3.0 Audio (Mic-in, Line-out)
Dimensions (Unit: mm)
20
Page3
Ordering Information
Part No. Description
FLEX-BX200-Q370-P/25-R10 2U AI Modular Box PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
FLEX-BX200-Q370-i3/25-R10 2U AI Modular Box PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
FLEX-BX200-Q370-i5/25-R10* 2U AI Modular Box PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
Power button with power LED
FLEX-BX200-Q370-i7/25-R10* 2U AI Modular Box PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10
FLEX-BX200-Q370-P/35-R10* 2U AI Modular Box PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10
FLEX-BX200-Q370-i3/35-R10* 2U AI Modular Box PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10
FLEX-BX200-Q370-i5/35-R10* 2U AI Modular Box PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10
FLEX-BX200-Q370-i7/35-R10* 2U AI Modular Box PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 350W PSU, R10
DDR4-LO-4GB 4GB DDR4 (288-pin)
DDR4-LO-8GB 8GB DDR4 (288-pin)
HDD-25-1TB 1TB 2.5” HDD
*Build to order
Options
Part No. Description
FLEX-QTS-R10 QTS Gateway DOM with USB signal
FLEX-BXRK-R10 Rack mount kit
Packing List
Item Q’ty Description
32702-000200-100-RS 1 European power cord, 1830mm
41020-0521C2-00-RS 2 wall mount kit, black
44035-040062-RS 4 M4*6 oval head screw for wall mount kit, black
1 Key for HDD cover
21
