DINレール組込みシステム向け、Atom x5-E3930搭載、ファンレス小型組込PC
特長
■幅58.75×高さ174×奥行130ｍｍ 1．33リットル
■Atom x5-E3930 1.3GHz CPU ファンレス
■2 GbE / 4 USB3.0 / 4 COM / 1 DIO / 2 CAN
■2.5" SATA HDD x 1 / mSATA x 1
■ワイドDC入力12V～24V
■拡張動作温度 -20 ～ 60℃
■DIN-rail取付可能
仕様
■CPU Atom x5-E3930 1.3GHz
■チップセット SoC
■メモリ DDR3L SODIMM x 1 (最大8GB)
■ハードディスク 2.5" SATA HDD x 1, mSATA x 1
■拡張スロット
PCIe Mini x 1
■I/Oコネクタ
10/100/1000Base-T x 2 (RJ-45), USB3.0 x 4,
RS-232/422/485 x 4, HDMI 1.4b x 2, 8bit DIO x 1 (4bit in/out),
CAN-bus x 2 (D-Sub9 x1, 2.5kV絶縁保護)
■入力電源 12 ～ 24VDC入力
■寸法/重量 58.75mm(W) x 174mm(H) x 130mm(D) / 1.4kg
■動作温度 -20 ～ 60℃ (拡張温度SSD使用時)
■衝撃 半弦波振動 5G; 11ms; 100軸
■振動 MIL-STD-810G 514.6 C-1
■認証 CE , FCC
このカタログについて
| ドキュメント名 | IEI ファンレス組込みPC DRPC-130-AL |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 406.8Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

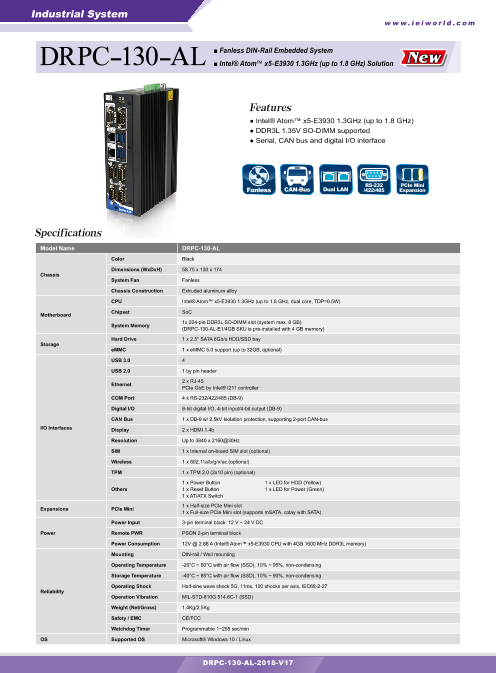

Page1
Industrial System
w w w . i e i w o r l d . c o m
DRPC-130-AL ■ Fanless DIN-Rail Embedded System■ Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz) Solution
Features
● Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
● DDR3L 1.35V SO-DIMM supported
● Serial, CAN bus and digital I/O interface
RS-232 PCIe Mini
Fanless CAN-Bus Dual LAN /422/485 Expansion
Specifications
Model Name DRPC-130-AL
Color Black
Dimensions (WxDxH) 58.75 x 130 x 174
Chassis
System Fan Fanless
Chassis Construction Extruded aluminum alloy
CPU Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
Motherboard Chipset SoC
System Memory 1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB)
(DRPC-130-AL-E1/4GB SKU is pre-installed with 4 GB memory)
Hard Drive 1 x 2.5'' SATA 6Gb/s HDD/SSD bay
Storage
eMMC 1 x eMMC 5.0 support (up to 32GB, optional)
USB 3.0 4
USB 2.0 1 by pin header
Ethernet 2 x RJ-45
PCIe GbE by Intel® I211 controller
COM Port 4 x RS-232/422/485 (DB-9)
Digital I/O 8-bit digital I/O, 4-bit input/4-bit output (DB-9)
CAN Bus 1 x DB-9 w/ 2.5kV Isolation protection, supporting 2-port CAN-bus
I/O Interfaces Display 2 x HDMI 1.4b
Resolution Up to 3840 x 2160@30Hz
SIM 1 x Internal on-board SIM slot (optional)
Wireless 1 x 802.11a/b/g/n/ac (optional)
TPM 1 x TPM 2.0 (2x10 pin) (optional)
1 x Power Button 1 x LED for HDD (Yellow)
Others 1 x Reset Button 1 x LED for Power (Green)
1 x AT/ATX Switch
Expansions PCIe Mini 1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
Power Input 3-pin terminal block: 12 V ~ 24 V DC
Power Remote PWR PSON 2-pin terminal block
Power Consumption 12V @ 2.88 A (Intel® Atom™ x5-E3930 CPU with 4GB 1600 MHz DDR3L memory)
Mounting DIN-rail / Wall mounting
Operating Temperature -20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing
Storage Temperature -40°C ~ 85°C with air flow (SSD), 10% ~ 90%, non-condensing
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
Reliability
Operation Vibration MIL-STD-810G 514.6C-1 (SSD)
Weight (Net/Gross) 1.4Kg/2.5Kg
Safety / EMC CE/FCC
Watchdog Timer Programmable 1~255 sec/min
OS Supported OS Microsoft® Windows 10 / Linux
DRPC-130-AL-2018-V17
Page2
Industrial System
w w w . i e i w o r l d . c o m
Fully Integrated I/O
Front View Top View
2 x CAN-bus isolated DIO
Power switch
12V~24V DC in
Reset
2 x GbE LAN 4 x USB 3.0
PS On
AT/ATX mode
2 x HDMI
4 x RS-232/422/485
Dimensions (Unit: mm)
18 #6-32
a a
a
58.75 130 DRPC-130-AL
Ordering Information
Part No. Description
DRPC-130-AL-E1-R11 Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), two HDMI, 8 CH DIO, CAN-Bus, COM, 12~24V DC and RoHS
DRPC-130-AL-E1/4GB-R11 Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 4GB DDR3L pre-installed memory, two HDMI, 8 CH DIO, 12V ~ 24V DC and RoHS
Options
Item Part No. Description
Adapter 63040-010036-210-RS Adapter Power;FSP;FSP036-RHBN3;9NA0362707;;Vin:90~264VAC;36W;Dim:37.8*89.8*27.0mm;Plug=7.5mm;Cable=1500mm;Erp(NO LOAD 0.075W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS
Power Cable 32102-026500-100-RS Power cable 200mm, (A) DC jack to (B) 3-pin terminal block P=3.5
Power Cord 32702-000200-100-RS POWER CORD; EUROPEAN CODE(VDE); 2; 1830MM; (A)PLUG:SH-005(16A 250V); (B)CONNECTOR:C13(SH-006,10A250V); Self-Man; CCL; RoHS
Wireless Kit EMB-WIFI-KIT01-R20 1T1R Wi-Fi module kit for embedded system, IEEE802.11a/b/g/n/ac Wi-Fi with Bluetooth 4.0/3.0+HS, 1 x Wi-Fi module, 2 x 250mm RF cable, 2 x Antenna, RoHS
TPM Module TPM-IN02-R20 20-pin Infineon TPM2.0 module, software mangement tool, firmware v5.5
DIN-Rail Mounting Kit DK-DRPC-R10 Rugged DIN-rail mounting kit for DPRC series only
OS:Windows Embedded 10 DRPC-130-W10E64-E-R10 OS Image with Windows® 10 IoT Enterprise Entry 64-bit for DRPC-130-AL Series, with DVD-ROM, RoHS
Packing List
1x Din-rail mounting kit 1 x Screw kit
DRPC-130-AL-2018-V15
174
8
