デジタルサイネージ向け、Celeron N3160(Braswell)搭載
特長
■幅241×高さ39×奥行160ｍｍ １．５リットル
■Celeron N3160 1.6GHz CPUファンレス
■2 GbE / 4 USB3.0 / 2 COM / 3 HDMI
■2.5" SATA HDD x 1
■壁掛け取付可能
仕様
■CPU Celeron N3160 1.6GHz
■チップセット SoC
■メモリ DDR3L-SODIMM x 1 (4GB搭載, 最大8GB)
■ハードディスク 2.5" SATA HDD/SSD x 1, Mini PCIe Full size x 1 (mSATA)
■拡張スロット Mini PCIe Half size x 1
■I/Oコネクタ
10/100/1000Base-T x 2 (RJ-45), USB3.0 x 4, HDMI x 3
■入力電源 12V DC入力
■寸法/重量 241 x 39 x 160mm(WxHxD) / 1.8kg
■動作温度 -20～60℃ (SSD 気流有)
■衝撃 半弦波振動 5G; 11ms; 3軸
■振動 MIL-STD-810F 514.5 C-1 (HDD) , MIL-STD-810F 514.5C-2 (SSD)
■認証 CE , FCC
このカタログについて
| ドキュメント名 | IEI ファンレス組込みPC IDS-300-BW |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 538.7Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

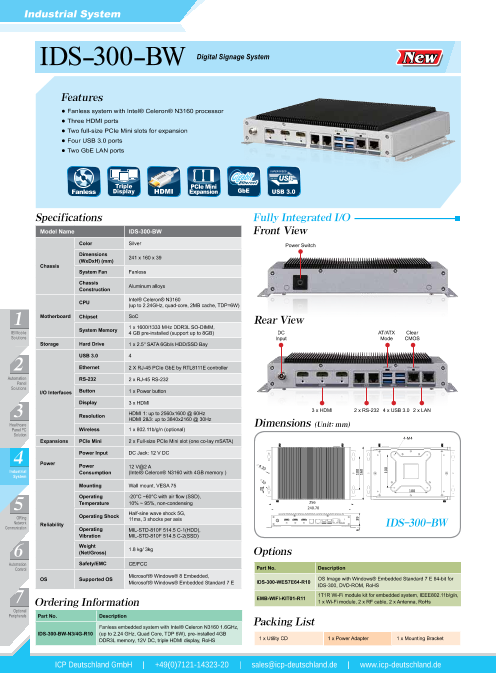

Page1
Industrial System
IDS-300-BW Digital Signage System
Features
● Fanless system with Intel® Celeron® N3160 processor
● Three HDMI ports
● Two full-size PCIe Mini slots for expansion
● Four USB 3.0 ports
● Two GbE LAN ports
USB
Triple PCIe Mini
Fanless Display HDMI Expansion GbE USB 3.0
Specifications Fully Integrated I/O
Model Name IDS-300-BW Front View
Color Silver Power Switch
Dimensions
(WxDxH) (mm) 241 x 160 x 39
Chassis
System Fan Fanless
Chassis
Construction Aluminum alloys
CPU Intel® Celeron® N3160 (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
1 Motherboard Chipset SoC Rear View
1 x 1600/1333 MHz DDR3L SO-DIMM,
IEIMobile System Memory 4 GB pre-installed (support up to 8GB) DC AT/ATX Clear
Solutions Input Mode CMOS
Storage Hard Drive 1 x 2.5'' SATA 6Gb/s HDD/SSD Bay
USB 3.0 4
2 Ethernet 2 X RJ-45 PCIe GbE by RTL8111E controller
Automation RS-232 2 x RJ-45 RS-232
Panel
Solutions
I/O Interfaces Button 1 x Power button
Display 3 x HDMI
3 3 x HDMI 2 x RS-232 4 x USB 3.0 2 x LANResolution HDMI 1: up to 2560x1600 @ 60Hz HDMI 2&3: up to 3840x2160 @ 30Hz
Healthcare Dimensions (Unit: mm)
Panel PC Wireless 1 x 802.11b/g/n (optional)
Solution
Expansions PCIe Mini 4-M42 x Full-size PCIe Mini slot (one co-lay mSATA)
4 Power Input DC Jack: 12 V DCPower Power 12 V@2 A 4.20
Industrial Consumption (Intel® Celeron® N3160 with 4GB memory )
System
10
Mounting Wall mount, VESA 75
100
Operating -20°C ~60°C with air flow (SSD),
5 Temperature 10% ~ 95%, non-condensing 256240.70
Operating Shock Half-sine wave shock 5G, ORing 11ms, 3 shocks per axis
Network Reliability IDS-300-BW
Communication Operating MIL-STD-810F 514.5 C-1(HDD),
Vibration MIL-STD-810F 514.5 C-2(SSD)
6 Weight (Net/Gross) 1.8 kg/ 3kg Options
Automation Safety/EMC CE/FCC
Control Part No. Description
OS Supported OS Microsoft® Windows® 8 Embedded,
Microsoft® Windows® Embedded Standard 7 E IDS-300-WES7E64-R10
OS Image with Windows® Embedded Standard 7 E 64-bit for
IDS-300, DVD-ROM, RoHS
7 EMB-WIFI-KIT01-R11 1T1R Wi-Fi module kit for embedded system, IEEE802.11b/g/n, Ordering Information 1 x Wi-Fi module, 2 x RF cable, 2 x Antenna, RoHs
Optional
Peripherals Part No. Description
Packing List
Fanless embedded system with Intel® Celeron N3160 1.6GHz,
IDS-300-BW-N3/4G-R10 (up to 2.24 GHz, Quad Core, TDP 6W), pre-installed 4GB
DDR3L memory, 12V DC, triple HDMI display, RoHS 1 x Utility CD 1 x Power Adapter 1 x Mounting Bracket
ICP Deutschland GmbH | +49(0)7121-14323-20 | sales@icp-deutschland.de | www.icp-deutschland.de
20
6 39 100
160
100
