第3世代 Core i7-3610QE/i5-3610ME/i3-3120ME CPU搭載、拡張温度対応ファンレス組込みPC
特長
■幅370×高さ122×奥行246ｍｍ 11．1リットル
■第3世代 Core i7/i5/i3 CPU、ファンレス動作
■DDR3 1333/1600MHz x 2 (最大16GB)
■2 x 2.5" SATA HDD/SSD
■1 x Mini PCIe, 1 x PCI, 1 x PCIe[x1] 拡張スロット
■マルチディスプレイ 1 x VGA, 1 x DVI-D, 1 x HDMI
■拡張温度対応 -40～70℃(UT)
■ワイドDC入力 9V～24V
仕様
■CPU
Core i7-3610QE 2.3GHz (6M Cache, 45W)
Core i5-3610ME 2.7GHz (3M Cache, 35W)
Core i3-3120ME 2.4GHz (3M Cache, 35W)
■チップセット QM77
■メモリ DDR3 1333/1600MHz(Non-ECC) x 2 (最大16GB)
■拡張スロット Mini PCIe x 1, PCI x 1, PCIe[x1] x 1
■ハードディスク 2.5" SATA HDD/SSD x 2
■Ｉ／Ｏコネクタ
10/100/1000 Base-T x 2
USB3.0 x 4, USB2.0 x 4
RS232 x 3, RS232/422/485 x 2
VGA x 1, DVI-D x 1, HDMI x 1
オーディオ Mic-in, Line-out
■入力電源 DC 9 ～ 24V入力 (ターミナルブロック)
■寸法/重量 370 x 122 x 246mm
■動作温度 -20～60℃(ET) / -40～70℃(UT)
このカタログについて
| ドキュメント名 | ファンレス組込みPC PERFECTRON PER535A |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 6.8Mb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

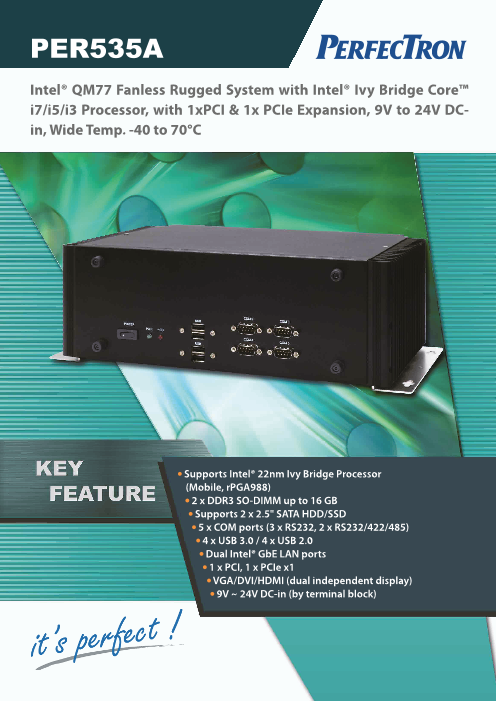

Page1
PER535A
Intel® QM77 Fanless Rugged System with Intel® Ivy Bridge Core™
i7/i5/i3 Processor, with 1xPCI & 1x PCIe Expansion, 9V to 24V DC-
in, Wide Temp. -40 to 70°C
Supports Intel® 22nm Ivy Bridge Processor
(Mobile, rPGA988)
2 x DDR3 SO-DIMM up to 16 GB
Supports 2 x 2.5" SATA HDD/SSD
5 x COM ports (3 x RS232, 2 x RS232/422/485)
4 x USB 3.0 / 4 x USB 2.0
Dual Intel® GbE LAN ports
1 x PCI, 1 x PCIe x1
VGA/DVI/HDMI (dual independent display)
9V ~ 24V DC-in (by terminal block)
Page2
PER535A
Intel® QM77 Fanless Rugged System with Intel® Ivy Bridge Core™ i7/i5/i3 Processor,
with 1xPCI & 1x PCIe Expansion, 9V to 24V DC-in, Wide Temp. -40 to 70°C
Main Features
• Supports Intel® 22nm Ivy Bridge Processor (Mobile, rPGA988)
• 2 x DDR3 SO-DIMM up to 16 GB
• Supports 2 x 2.5" SATA HDD/SSD
• 5 x COM ports (3 x RS232, 2 x RS232/422/485)
• 4 x USB 3.0 / 4 x USB 2.0
• Dual Intel® GbE LAN ports
• 1 x PCI, 1 x PCIe x1
• VGA/DVI/HDMI (dual independent display)
• 9V ~ 24V DC-in (by terminal block)
System Rear I/O
CPU Intel® 22nm Ivy Bridge Processor (Mobile) socket VGA 1
(rPGA988) DVI-D 1
Core™ i7-3610QE 2.3 GHz (6M Cache, 45W)
Core™ i5-3610ME 2.7 GHz (3M Cache, 35W) HDMI 1
Core™ i3-3120ME 2.4 GHz (3M Cache, 35W) Ethernet 2 x RJ45
Chipset Intel® QM77 Audio Mic-in, Line-in, Line-out
Memory 2 x 204-pin SO-DIMM support up to 16 GB dual COM 1x RS232/422/485 with 5V/12V selectable
channel DDR3 1333/1600, Non-ECC USB 4 x USB 3.0
Expansion Slot 1 x Mini-PCIe Antenna Reserved two antenna holes
1 x PCI
1 x PCIe x1 Power Input 9V to 24V DC-in (by terminal block)
Storage Device 2 x 2.5" SATA HDD/SSD
Mechanical & Environment
Front I/O Power 9V to 24V DC-in
Power Button Yes Requirement
Power LED Yes Dimension 370 x 122 x 246 mm
(W x H x D) (14.57" x 4.8" x 9.69")
HDD LED Yes
Operating Temp. -40 to 70°C
COM 2 x RS232/with 5V/12V selectable
1 x RS232 Storage Temp. -20 to 80°C
1 x RS232/422/485 Relative Humidity 10% to 90%, non-condensing
USB 4 x USB 2.0
www.perfectron.com
Page3
Fanless Rugged System - PER535A
Mechanical Drawing
336.60
278.20
305.00
353.00
370.00
www.perfectron.com www.perfectron.com
*All specifications and photos are subject to change without notice. *All specifications and photos are subject to change without notice.
245.10
221.00
18.00
190.00
Page4
Packing List Ordering Information
• PER535A Fanless Rugged System Modules
• Driver CD
Model Number Description
PER5335A-ET Intel® QM77 Fanless Rugged System with Intel® Ivy
Optional Accessories Bridge Core™ i7/i5/i3 Processor, with 1xPCI & 1x
PCIe Expansion, 9V to 24V DC-in, Wide Temp.
Power Adapter (-20 to 60°C)
19V, 120W, AC/DC power adapter w/o power cord (0 to 40°C, PER535A-UT Intel® QM77 Fanless Rugged System with Intel® Ivy
FSP) Bridge Core™ i7/i5/i3 Processor, with 1xPCI & 1x
24V, 160W, AC/DC power adapter w/o power cord (-30 to 70°C, PCIe Expansion, 9V to 24V DC-in, Wide Temp.
Meanwell) (-40 to 70°C, optional)
0C0181118306C00L Intel® i7-3610QE (45W)
0C0181115901C00L Intel® i5-3610ME (35W)
Memory
0C0181117902C00L Intel® i3-3120ME (35W)
DDR3 1333/1600, Non-ECC SO-DIMM, W/T
Applications
www.perfectron.com
*All specifications and photos are subject to change without notice.
