産業用PoEスイッチPLANET IGS-10020HPT

製品カタログ

L2+ 8ポート10/100/1000T 802.3at PoE + 2ポート 00/1000X SFP マネージドスイッチ

特長
■8〜10 / 100 / 1000BASE-TとギガビットイーサネットRJ45ポートIEEE 802.3atののPoE +インジェクタ
■SFPタイプ自動検出用2 100 / 1000BASE-X mini-GBIC / SFPスロット
■基本的な管理とセットアップのための1つのRJ45コンソールインターフェイス
■IEEE 802.3at PoE +エンド・スパンPSEに準拠
■最大8つのIEEE 802.3af / 802.3atデバイスの電源供給
■PoEポートごとに最大36ワットのPoE電力をサポート
■受電装置(PD)の自動検出
■回路保護により、ポート間の電力干渉防止
■100mまでの遠隔給電
■IP30アルミケース
■DINレールと壁掛け設計
■48V DCリダンダント電源(極性逆保護機能付き)
■電源ライン用6000 VDCのEFT保護
■6000V DCイーサネットESD保護
■-40〜75℃の動作温度

仕様
■インターフェイス
 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
 Compatible with 100BASE-FX SFP
■電源
 48V DC
■メカニカル
 IP30アルミケース
 152mm(W) x 107mm(D) x 72mm(H)、1684g
■環境
 動作温度 -40~75℃
 保存温度 -40~85℃
■認証
 安全:FCC Part 15 Class A , CE
 衝撃:IEC60068-2-27
 振動:IEC60068-2-6
 自由落下:IEC60068-2-32

このカタログについて

ドキュメント名 産業用PoEスイッチPLANET IGS-10020HPT
ドキュメント種別 製品カタログ
ファイルサイズ 3.3Mb
登録カテゴリ
取り扱い企業 サンテックス株式会社 (この企業の取り扱いカタログ一覧)

この企業の関連カタログ

小型液晶モニター FEELWORLD F570
製品カタログ

サンテックス株式会社

小型液晶モニター XENARC 1029GNH
製品カタログ

サンテックス株式会社

小型液晶モニター NEWAY CK1014-2K
製品カタログ

サンテックス株式会社

このカタログの内容

Page1

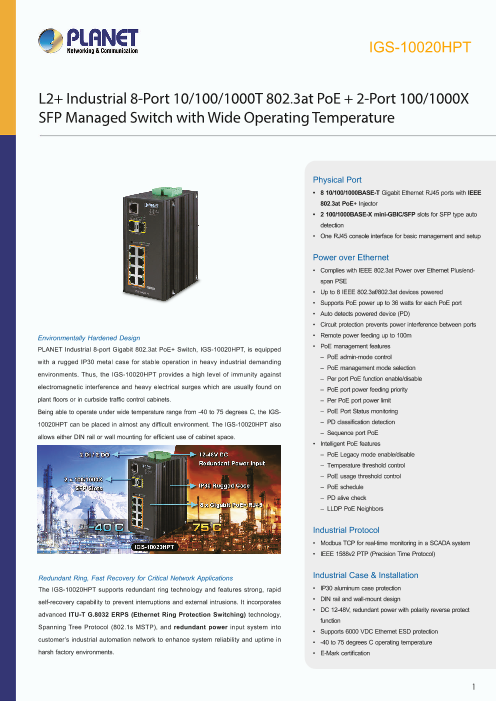

IGS-10020HPT L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch with Wide Operating Temperature Physical Port • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector • 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection • One RJ45 console interface for basic management and setup Power over Ethernet • Complies with IEEE 802.3at Power over Ethernet Plus/end- span PSE • Up to 8 IEEE 802.3af/802.3at devices powered • Supports PoE power up to 36 watts for each PoE port • Auto detects powered device (PD) • Circuit protection prevents power interference between ports Environmentally Hardened Design • Remote power feeding up to 100m PLANET Industrial 8-port Gigabit 802.3at PoE+ Switch, IGS-10020HPT, is equipped • PoE management features – PoE admin-mode control with a rugged IP30 metal case for stable operation in heavy industrial demanding – PoE management mode selection environments. Thus, the IGS-10020HPT provides a high level of immunity against – Per port PoE function enable/disable electromagnetic interference and heavy electrical surges which are usually found on – PoE port power feeding priority plant floors or in curbside traffic control cabinets. – Per PoE port power limit Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS- – PoE Port Status monitoring 10020HPT can be placed in almost any difficult environment. The IGS-10020HPT also – PD classification detection allows either DIN rail or wall mounting for efficient use of cabinet space. – Sequence port PoE • Intelligent PoE features – PoE Legacy mode enable/disable – Temperature threshold control – PoE usage threshold control – PoE schedule – PD alive check – LLDP PoE Neighbors Industrial Protocol • Modbus TCP for real-time monitoring in a SCADA system • IEEE 1588v2 PTP (Precision Time Protocol) Redundant Ring, Fast Recovery for Critical Network Applications Industrial Case & Installation The IGS-10020HPT supports redundant ring technology and features strong, rapid • IP30 aluminum case protection self-recovery capability to prevent interruptions and external intrusions. It incorporates • DIN rail and wall-mount design • DC 12-48V, redundant power with polarity reverse protect advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, function Spanning Tree Protocol (802.1s MSTP), and redundant power input system into • Supports 6000 VDC Ethernet ESD protection customer’s industrial automation network to enhance system reliability and uptime in • -40 to 75 degrees C operating temperature harsh factory environments. • E-Mark certification 1
