小型組込みシステム向け、Atom E3845 CPU搭載
■幅106×高さ66×奥行150ｍｍ 1．05リットル
■幅106×高さ86×奥行150ｍｍ(SPC-xxxxRS) 1．37リットル
■Atom Quad Core E3845 1.91GHz、ファンレス動作
■DDR3L-1333MHz (最大8GB)
■2 Mini PCIe拡張スロット
■1 2.5"HDD フロントアクセス (SPC-xxxxRS)
■2 PoE GbE, 4 USB3.0, 4 COM, 8 DIO (SPC-2845)
■2 GbE, 4 USB3.0, 4 COM, 8 DIO (SPC-2145)
■拡張温度対応 -25～70℃
■ワイドDC入力6～36Ｖ
■リモート電源ON/OFF
■鉄道規格 EN50155 認証
このカタログについて
| ドキュメント名 | 産業用PC VECOW SPC-2845/2145 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 409.7Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

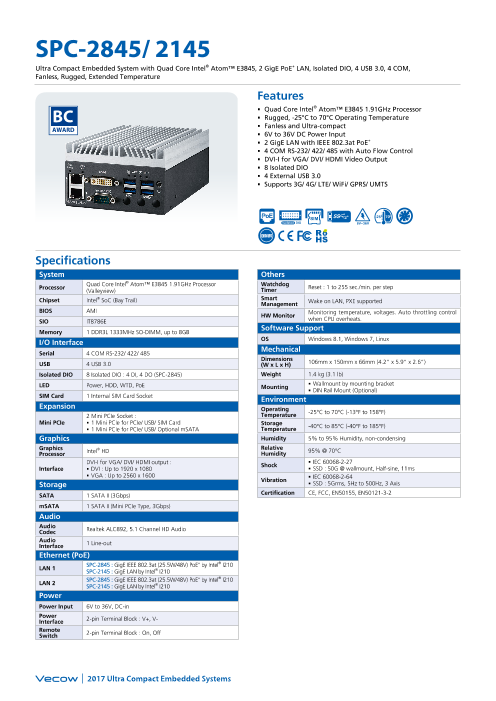

Page1
SPC-2845/ 2145
Ultra Compact Embedded System with Quad Core Intel® Atom™ E3845, 2 GigE PoE+ LAN, Isolated DIO, 4 USB 3.0, 4 COM,
Fanless, Rugged, Extended Temperature
Features
Quad Core Intel® Atom™ E3845 1.91GHz Processor
Rugged, -25°C to 70°C Operating Temperature
Fanless and Ultra-compact
6V to 36V DC Power Input
2 GigE LAN with IEEE 802.3at PoE+
4 COM RS-232/ 422/ 485 with Auto Flow Control
DVI-I for VGA/ DVI/ HDMI Video Output
8 Isolated DIO
4 External USB 3.0
Supports 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
SIM -25º 70º
Isolated DIO 6V~36V
Specifications
System Others
®
Processor Quad Core Intel Atom™ E3845 1.91GHz Processor Watchdog Timer Reset : 1 to 255 sec./min. per step(Valleyview)
Chipset Intel® SoC (Bay Trail) Smart
Management Wake on LAN, PXE supported
BIOS AMI
HW Monitor Monitoring temperature, voltages. Auto throttling control
SIO IT8786E when CPU overheats.
Software Support
Memory 1 DDR3L 1333MHz SO-DIMM, up to 8GB
I/O Interface OS Windows 8.1, Windows 7, Linux
Mechanical
Serial 4 COM RS-232/ 422/ 485
Dimensions
USB 4 USB 3.0 (W x L x H) 106mm x 150mm x 66mm (4.2” x 5.9” x 2.6”)
Isolated DIO 8 Isolated DIO : 4 DI, 4 DO (SPC-2845) Weight 1.4 kg (3.1 lb)
LED Power, HDD, WTD, PoE Mounting Wallmount by mounting bracket
DIN Rail Mount (Optional)
SIM Card 1 Internal SIM Card Socket Environment
Expansion Operating -25°C to 70°C (-13°F to 158°F)
2 Mini PCIe Socket : Temperature
Mini PCIe 1 Mini PCIe for PCIe/ USB/ SIM Card Storage
1 Mini PCIe for PCIe/ USB/ Optional mSATA Temperature -40°C to 85°C (-40°F to 185°F)
Graphics Humidity 5% to 95% Humidity, non-condensing
Graphics Intel® HD Relative Processor Humidity 95% @ 70°C
DVI-I for VGA/ DVI/ HDMI output : Shock IEC 60068-2-27
Interface DVI : Up to 1920 x 1080 SSD : 50G @ wallmount, Half-sine, 11ms
VGA : Up to 2560 x 1600
Vibration IEC 60068-2-64
Storage SSD : 5Grms, 5Hz to 500Hz, 3 Axis
SATA 1 SATA II (3Gbps) Certification CE, FCC, EN50155, EN50121-3-2
mSATA 1 SATA II (Mini PCIe Type, 3Gbps)
Audio
Audio
Codec Realtek ALC892, 5.1 Channel HD Audio
Audio
Interface 1 Line-out
Ethernet (PoE)
LAN 1 SPC-2845 : GigE IEEE 802.3at (25.5W/48V) PoE
+ by Intel® I210
SPC-2145 : GigE LAN by Intel® I210
LAN 2 SPC-2845 : GigE IEEE 802.3at (25.5W/48V) PoE
+ by Intel® I210
SPC-2145 : GigE LAN by Intel® I210
Power
Power Input 6V to 36V, DC-in
Power
Interface 2-pin Terminal Block : V+, V-
Remote
Switch 2-pin Terminal Block : On, Off
2017 Ultra Compact Embedded Systems
Page2
Dimensions Unit : mm/ inch
143.0 (5.6”)
128.0 (5.0”)
143.0 (5.6”) 143.0 (5.6”)
106.2 (4.2”) 106.2 (4.2”)
SPC-2845 SPC-2145
F r o n t I / O (SPC-2845) Rear I/O
2 x PoE DVI-I LED Power 4 x COM Line-out DC-in
4 x USB 3.0
Isolated DIO Remote Power Switch
Order Information
SPC-2845 SPC-2000, 2 PoE+ GigE LAN, 4 COM, 4 USB, Isolated DIO, Onboard Quad Core Intel® Atom™ E3845
SPC-2145 SPC-2000, 2 GigE LAN, 4 COM, 4 USB, Onboard Quad Core Intel® Atom™ E3845
DDR3L4G Certified DDR3L-1600 4G RAM
DDR3L8G Certified DDR3L-1600 8G RAM
PWA-60WP2 60W, 24V/2.5A 100V AC to 240V AC Power Adapter for 2-pin 3.5mm Terminal Block
DIN-RAIL DIN Rail Kit
Rack Mount 2U Rackmount Kit
3G Module Mini PCIe 3G/GPS Module with Antenna
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth Module Intel® Mini PCIe WiFi & Bluetooth Module with Antenna
* The rights of all brand names, product names and trademarks belong to their respective owners.
Copyright © 2016-2017 Vecow Co., Ltd. All rights reserved.
