超短パルス深紫外ファイバー・レーザは、ガラス、ダイヤモンド、テフロンなどの材料の切断、穴あけ、テクスチャリング、マーキングだけでなく、マイクロLEDのリフトオフ、転写、修理などの微細加工アプリケーションのための信頼性が高く、費用対効果の高い選択肢です。
このカタログについて
| ドキュメント名 | 深紫外ナノ秒ファイバー・レーザ |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 1.2Mb |
| 登録カテゴリ | |
| 取り扱い企業 | IPGフォトニクスジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

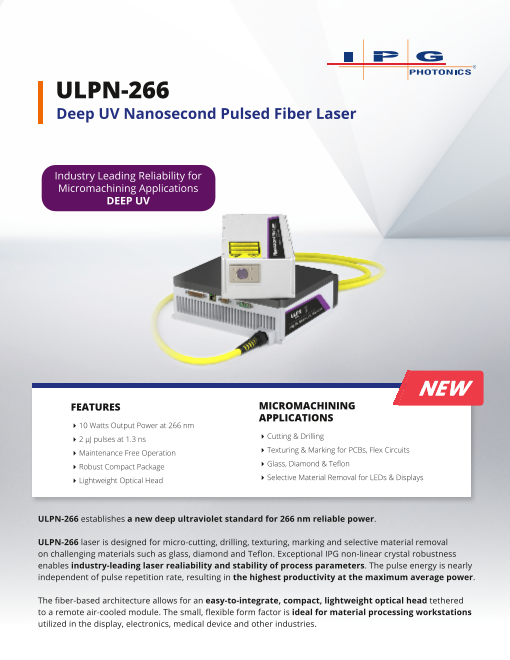

Page1
ULPN-266
Deep UV Nanosecond Pulsed Fiber Laser
Industry Leading Reliability for
Micromachining Applications
DEEP UV
FEATURES MICROMACHINING
APPLICATIONS
10 Watts Output Power at 266 nm
2 μJ pulses at 1.3 ns Cutting & Drilling
Maintenance Free Operation Texturing & Marking for PCBs, Flex Circuits
Robust Compact Package Glass, Diamond & Teflon
Lightweight Optical Head Selective Material Removal for LEDs & Displays
ULPN-266 establishes a new deep ultraviolet standard for 266 nm reliable power.
ULPN-266 laser is designed for micro-cutting, drilling, texturing, marking and selective material removal
on challenging materials such as glass, diamond and Teflon. Exceptional IPG non-linear crystal robustness
enables industry-leading laser realiability and stability of process parameters. The pulse energy is nearly
independent of pulse repetition rate, resulting in the highest productivity at the maximum average power.
The fiber-based architecture allows for an easy-to-integrate, compact, lightweight optical head tethered
to a remote air-cooled module. The small, flexible form factor is ideal for material processing workstations
utilized in the display, electronics, medical device and other industries.
Page2
ULPN-266
Deep UV Nanosecond Pulsed Fiber Laser
Optical Characteristics
Wavelength, nm 266
Mode of Operation Pulsed
Output Power, W Up to 10
Power Tunability, % 10-100
Pulse Energy, µJ Up to 2
Pulse Duration, ns 1.3
Repetition Rate, kHz 100-2700
Beam Mode Quality, M2 <1.2
General Characteristics
OEM Laser Module Dimensions (W × D × H), mm 270 × 256 × 89
Optical Head Dimensions (W × D × H), mm 142 ×345 × 80
Optical Head Weight, kg 5
Cooling Optical Head – Passive Conductive
Laser Module – Forced Air
Supply Voltage, VDC 24
Power Consumption, W <200
Learn More
DANGER - INVISIBLE LASER
MAX. AVERAGE OUTPUT POWER: 20 W RADIATION AVOID EYE OR SKIN
MAX. PEAK POWER: 5 kW EXPOSURE TO DIRECT OR
Contact Us: PULSE DURATION: 1-10 ns SCATTERED RADIATION
PULSE REPETITION RATE: 100-2700 kHz CLASS 4 LASER PRODUCT
WAVELENGTH RANGE: 250-270 nm
IEC 60825-1:2014
