【微細加工】YLPF/YLPPシリーズ（50Wまで）

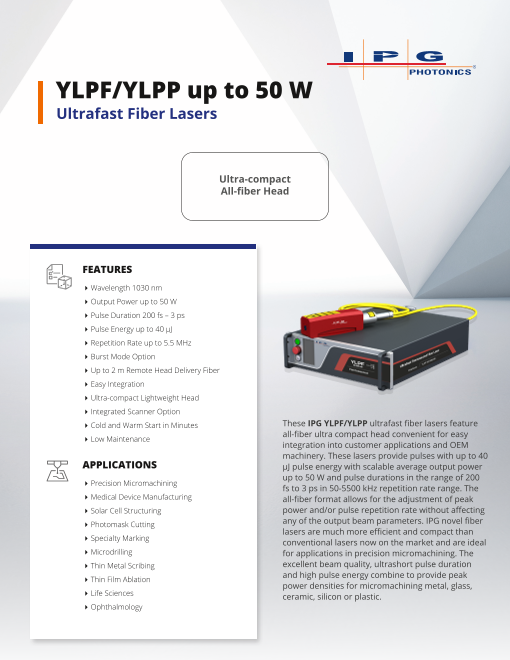

YLPF/YLPP up to 50 W Ultrafast Fiber Lasers Ultra-compact All-fiber Head FEATURES  Wavelength 1030 nm  Output Power up to 50 W  Pulse Duration 200 fs – 3 ps  Pulse Energy up to 40 μJ  Repetition Rate up to 5.5 MHz  Burst Mode Option  Up to 2 m Remote Head Delivery Fiber  Easy Integration  Ultra-compact Lightweight Head  Integrated Scanner Option  Cold and Warm Start in Minutes These IPG YLPF/YLPP ultrafast fiber lasers feature  Low Maintenance all-fiber ultra compact head convenient for easy integration into customer applications and OEM machinery. These lasers provide pulses with up to 40 APPLICATIONS μJ pulse energy with scalable average output power up to 50 W and pulse durations in the range of 200  Precision Micromachining fs to 3 ps in 50-5500 kHz repetition rate range. The  Medical Device Manufacturing all-fiber format allows for the adjustment of peak  Solar Cell Structuring power and/or pulse repetition rate without affecting  Photomask Cutting any of the output beam parameters. IPG novel fiber lasers are much more efficient and compact than  Specialty Marking conventional lasers now on the market and are ideal  Microdrilling for applications in precision micromachining. The  Thin Metal Scribing excellent beam quality, ultrashort pulse duration  Thin Film Ablation and high pulse energy combine to provide peak power densities for micromachining metal, glass,  Life Sciences ceramic, silicon or plastic.  Ophthalmology

YLPF/YLPP up to 50 W Ultrafast Fiber Lasers Optical Characteristics* YLPF-20-250-10 YLPF-40-350-20 YLPP-25-3-50 YLPP-50-1-50** Wavelength, nm 1030 Max. Average Power, W 10 20 50 Pulse Energy, µJ 20 40 25 50 Pulse Duration, ps 0.25 0.35 3 1 Repetition Rate, kHz 50-5500 Beam Quality, M2 <1.4 (1.2 typ.) * This table introduces typical models. Models with custom specifications are available on request. ** The YLPP-50-1-50 model has larger 160×330×100 mm optical head and delivery cable up to 5 m. General Characteristics Control Unit Dimensions (W × D × H), mm 448 × 580 × 132 Optical Head Dimensions (W × D × H), mm 65 × 370 × 70 Cooling Water Supply Voltage, VAC Single-phase 50-60 Hz 100-240 Optical Head Weight, kg 2.2 Power Consumption, W <500 DANGER - INVISIBLE LASER MAX. CONTINUOUS OUTPUT POWER: 100 W RADIATION AVOID EYE OR SKIN PEAK OUTPUT POWER: 150 MW EXPOSURE TO DIRECT OR PULSE DURATION: 200-5 ps SCATTERED RADIATION PULSE REPETITION RATE: 5-5500 kHz sales.us@ipgphotonics.com CLASS 4 LASER PRODUCT WAVELENGTH RANGE: 900-1200 nm IEC 60825-1:2014 www.ipgphotonics.com Legal notices: All product information is believed to be accurate and is subject to change without notice. Information contained herein shall legally bind IPG only if it is specifically incorporated into the terms and conditions of a sales agreement. Some specific combinations of options may not be available. The user assumes all risks and liability whatsoever in connection with use of a 1/25 product or its application. IPG, IPG Photonics, The Power to Transform and IPG Photonics’ logo are trademarks of IPG Photonics Corporation. © 2025 IPG Photonics Corporation. All rights reserved.
