【微細加工】YLPF/YLPPシリーズ（100Wまで）

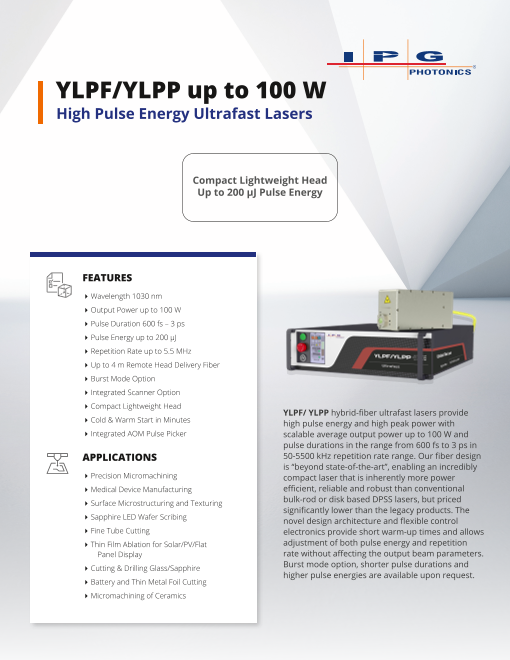

YLPF/YLPP up to 100 W High Pulse Energy Ultrafast Lasers Compact Lightweight Head Up to 200 µJ Pulse Energy FEATURES  Wavelength 1030 nm  Output Power up to 100 W  Pulse Duration 600 fs – 3 ps  Pulse Energy up to 200 μJ  Repetition Rate up to 5.5 MHz  Up to 4 m Remote Head Delivery Fiber  Burst Mode Option  Integrated Scanner Option  Compact Lightweight Head YLPF/ YLPP hybrid-fiber ultrafast lasers provide  Cold & Warm Start in Minutes high pulse energy and high peak power with  Integrated AOM Pulse Picker scalable average output power up to 100 W and pulse durations in the range from 600 fs to 3 ps in APPLICATIONS 50-5500 kHz repetition rate range. Our fiber design is “beyond state-of-the-art”, enabling an incredibly  Precision Micromachining compact laser that is inherently more power  Medical Device Manufacturing efficient, reliable and robust than conventional  Surface Microstructuring and Texturing bulk-rod or disk based DPSS lasers, but priced significantly lower than the legacy products. The  Sapphire LED Wafer Scribing novel design architecture and flexible control  Fine Tube Cutting electronics provide short warm-up times and allows  Thin Film Ablation for Solar/PV/Flat adjustment of both pulse energy and repetition Panel Display rate without affecting the output beam parameters.  Cutting & Drilling Glass/Sapphire Burst mode option, shorter pulse durations and higher pulse energies are available upon request.  Battery and Thin Metal Foil Cutting  Micromachining of Ceramics

YLPF/YLPP up to 100 W High Pulse Energy Ultrafast Lasers Optical Characteristics* YLPF-100-750-100 YLPP-100-1-100 YLPF-200-750-50 YLPP-200-1-50 Wavelength, nm 1030 Max. Average Power, W 100 50 Pulse Energy, µJ 100 200 Pulse Duration, ps 0.75 1 0.75 1 Repetition Rate, kHz 50-5500 Beam Quality, M2 <1.4 (1.2 typ.) General Characteristics Control Unit Dimensions (W × D × H), mm 448 × 580 × 133 Optical Head Dimensions (W × D × H), mm 82 × 271 × 124 Cooling Water Supply Voltage, VAC Single-phase 50-60 Hz 100-240 Optical Head Weight, kg 5.5 Power Consumption, W <1200 DANGER - INVISIBLE LASER MAX. CONTINUOUS OUTPUT POWER: 200 W RADIATION AVOID EYE OR SKIN PEAK OUTPUT POWER: 550 MW EXPOSURE TO DIRECT OR PULSE DURATION: 600 fs-5ps SCATTERED RADIATION PULSE REPETITION RATE: 50-5500 kHz sales.us@ipgphotonics.com CLASS 4 LASER PRODUCT WAVELENGTH RANGE: 900-1200 nm IEC 60825-1:2014 www.ipgphotonics.com Legal notices: All product information is believed to be accurate and is subject to change without notice. Information contained herein shall legally bind IPG only if it is specifically incorporated into the terms and conditions of a sales agreement. Some specific combinations of options may not be available. The user assumes all risks and liability whatsoever in connection with use of a 1/25 product or its application. IPG, IPG Photonics, The Power to Transform and IPG Photonics’ logo are trademarks of IPG Photonics Corporation. © 2025 IPG Photonics Corporation. All rights reserved.
