GLPN-532-QCW High Power

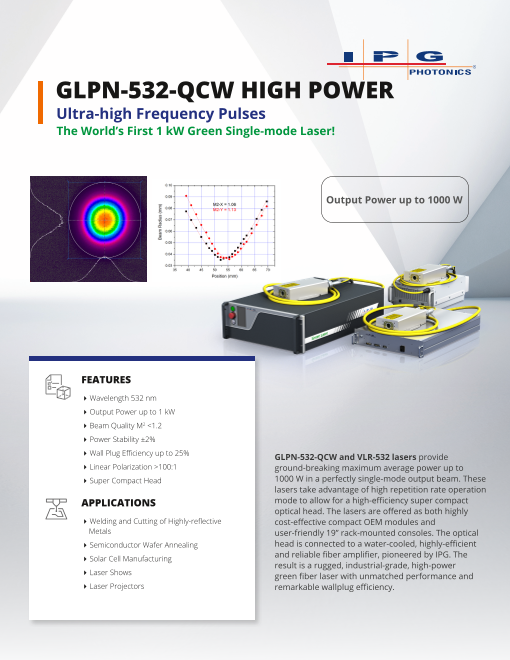

GLPN-532-QCW HIGH POWER Ultra-high Frequency Pulses The World’s First 1 kW Green Single-mode Laser! Output Power up to 1000 W FEATURES  Wavelength 532 nm  Output Power up to 1 kW  Beam Quality M2 <1.2  Power Stability ±2%  Wall Plug Efficiency up to 25% GLPN-532-QCW and VLR-532 lasers provide  Linear Polarization >100:1 ground-breaking maximum average power up to  Super Compact Head 1000 W in a perfectly single-mode output beam. These lasers take advantage of high repetition rate operation APPLICATIONS mode to allow for a high-efficiency super compact optical head. The lasers are offered as both highly  Welding and Cutting of Highly-reflective cost-effective compact OEM modules and Metals user-friendly 19” rack-mounted consoles. The optical  Semiconductor Wafer Annealing head is connected to a water-cooled, highly-efficient  Solar Cell Manufacturing and reliable fiber amplifier, pioneered by IPG. The result is a rugged, industrial-grade, high-power  Laser Shows green fiber laser with unmatched performance and  Laser Projectors remarkable wallplug efficiency.

GLPN-532-QCW HIGH POWER Green Single-mode Fiber Laser Optical Characteristics GLPN-100 GLPN-200 GLPN-500 GLPN-1000 Wavelength, nm 532 Mode of Operation Pulsed/QCW Repetition Rate, MHz ~25 ~50 ~125 ~250 Average Power, W 100 200 500 1000 Power Tunability, % 1-100 Pulse Duration, ns ~1.2 Power Stability*, % ±2 Polarization Linear, >100:1 Beam Quality, M2 <1.2 * Over 8 hours, T= const. General Characteristics Optical Head (W × D × H), mm 114 × 238 × 60 Module Dimensions (W × D × H), mm Air-cooled* Water-cooled 294 × 491 × 149 332 × 527 × 71 Console Dimensions (W × D × H), mm Air-cooled* Water-cooled 448 × 533 × 177 448 × 678 × 176 Module Supply Voltage, VDC 48 VDC 56 VDC Console Supply Voltage, VAC 100-120 VAC, 50-60 Hz 200-240 VAC, 50-60 Hz Power Consumption, W 580 950 2100 3900 * Water-cooled 100 W modules and 3U 19” rack-mounted consoles are available upon request. DANGER - INVISIBLE LASER +1 (508) 373-1100; MAX. AVERAGE OUTPUT POWER: 2000 W RADIATION AVOID EYE OR SKIN MAX. PEAK OUTPUT POWER: 5 kW EXPOSURE TO DIRECT OR PULSE DURATION: ~ 1.5 ns IPGPhotonics.com/contact SCATTERED RADIATION PULSE REPETITION RATE: 2-150 MHz CLASS 4 LASER PRODUCT WAVELENGTH RANGE: 532, 1064 nm www.ipgphotonics.com IEC 60825-1:2014 Legal notices: All product information is believed to be accurate and is subject to change without notice. Information contained herein shall legally bind IPG only if it is specifically incorporated into the terms and conditions of a sales agreement. Some specific combinations of options may not be available. The user assumes all risks and liability whatsoever in connection with use of a product or its application. IPG, IPG Photonics, The Power to Transform and IPG Photonics’ logo are trademarks of IPG Photonics Corporation. © 2023 IPG Photonics Corporation. All rights reserved. 11/23
