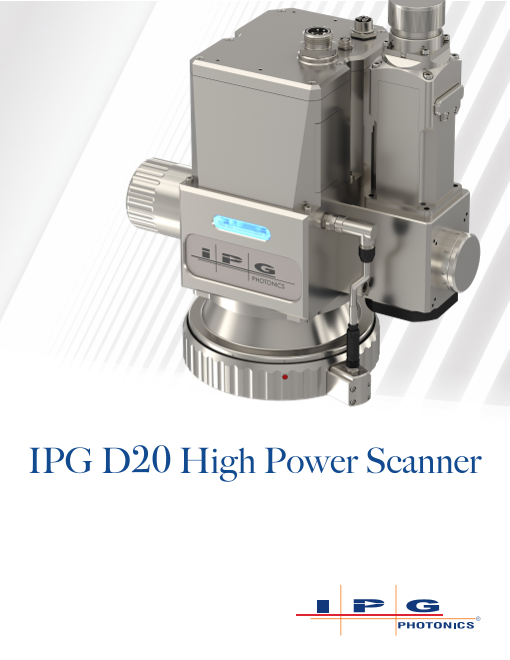

IPG D20 High Power Scanner

COMPACT FORM FACTOR D20 High Power Scanner Substantially reduce motion system costs thanks to the D20-HPS compact form factor and reduced payload. The IPG D20 2D High-Power Scanner is a revolutionary product offering by IPG for remote laser welding. With the cost of manufacturing footprint continuously on the rise, the compact form factor of the D20-HPS enables users to reduce system foot print and save on premium manufacturing space. Greater savings can be achieved thanks to the scanners reduced weight, which allows for low payload robotic and gantry motion systems. Despite the compact form factor, the D20-HPS was designed with the most grueling manufacturing environments in- mind. Built-in contamination sensing easily allows users to be notified when it is time to change Protective Windows. The D20-HPS industrial design ensures continuous system operation and total quality assuance. As the world leader in Fiber Laser technology, IPG has set a new standard with the D20-HPS where exceptional process performance comes at a reduced cost. Capable of wobble frequencies up to 1.2 kHz, the D20-HPS enables users to process at higher travel speeds than previously Industrial Design possible. With IPGScan software, users can easily setup On-The-Fly processes and optimize Designed for the most rugged product throughput. Combined with the patented process monitoring technology of LDD, users environments, D20 High-Power Scanners feature industrial can rest assured that parts coming off of the production line are of the highest possible quality. IP67 tested enclosures BUILT IN PROTECTION Ultimately, the IPG D20-HPS provides outstanding features at a reduced cost. Protect the process and equipment by setting Warning and Abort Thresholds • IPGScan software allows users to configure remote laser welding applications in minutes. within IPGScan to notify the system • Complete scanning solution designed with the EV Battery, Automotive, Aerospace, and when it is time to change Protective Quick Exchange Windows due to contamination from General Fabrication markets in-mind. Window Assembly process spatter. • Compatible with YLS, YLS-AMB, YLR, and YLPN Series IPG Lasers. Reduce production down-time for • Compatible with industry leading LDD Process Monitoring technology for total quality Protective Window change-out thanks to the quick exchange assurance. Window Assembly design IPGScan Software Industrial Connectors Plug and play architecture utilizing industrial connectors allows for quick installation and easy integration NO SOFTWARE Eliminate excessive license and renewal fees with IPGScan remote scanning LICENSES software, which is available for download at any time. CONFIGURE REMOTE LASER IPGScan Process & Timing Visualization WELDING APPLICATIONS IN MINUTES PROCESS By importing STL models, users can create realistic process simulations in VISUALIZATION IPGScan. This functionality allows users to develop precise process timings IPGScan is a powerful software suite that provides users with process parameters specifically tailored to the application and ensure beam angles will not clip expensive fixturing. and laser being utilized. Within IPGScan, users have the ability to import CAD models, place process objects (e.g. welds), create simulated motion paths, and optimize process timings using advanced timeline functionality. Advanced Timeline functionality allows users to reduce process cycle time Graphical display of the laser beam emitting from the scan head helps to ensure that expensive fixturing will not be OTF LASER by providing detailed process timings and easy to use tools for making clipped by the beam. These powerful features enable users to visualize the complete process before equipment ever hits WELDING process parameter changes. the shop floor. When equipment is set up, users can easily transition from programming in the offline world to the real world with a few quick calibrations. Loaded with powerful software features, IPGScan allows users to develop complete process solutions while reducing overall costs.

Specifications Compatible Laser Series YLS, YLS-AMB, YLR, YLPN Max Multi-Mode CW Power (kW) 6.0 Max Single-Mode CW Power (kW) 3.0 Available Fiber Adapters HLC-8, HLC-8 with Rotary, LCA Optical Specifications Wavelength (nm) 1065 – 1075 Clear Aperture (mm) 20 Focus Lens Name F260 SM F500 SM Focal Length (mm) 260 500 Nominal Working Distance (mm) 329 604 Square Field Size ([X]mm x [Y]mm) 1 112 x 112 250 x 250 Galvo Long-Term Drift (µm)2 <30 <60 Galvo Positioning Repeatability (µm)3 <8 <15 Collimator Options (mm) 50, 60, 85, 100, 120, 160 Mechanical Specifications IP Rating IP67 Tested Scanner Dimensions [LxWxH] (mm) 100 x 264 x 300 Scanner Weight (kg)4 8.9-11.1 Available Accessories Linear and Circular Air Knife For Spatter and Process Control Through the Lens Vision Cameras Ethernet, HDMI Integration Control Center Complete solution containing power supplies, Scanner Fieldbus Interface, and appropriate cables External Interfaces for Automated Systems Integration Scanner Fieldbus Interface Supported Protocols: Ethernet/IP, ProfiNet, EtherCAT Extended IO Discrete IO Interface: 19 Digital Inputs, 16 Digital Outputs Motion Interface For motor control or encoder feedback Capable of single-ended or differential signal feedback 1. Rectangular fields of view are available for some lens configurations 2. Long-term drift with constant ambient conditions after the readiness for operation (heat-up time). Both galvos considered 3. Both galvos considered 4. Assuming D20 2D High-Power Scanner with 500mm focal length, 50mm collimator, HLC-8 fiber receiver, with linear air knife. Lower limit without LDD. Upper limit with LDD. +1 (508) 373-1100; LASER RADIATION DO NOT STARE DIRECTLY INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS CLASS 2M LASER PRODUCT IPGPhotonics.com/contact MAX. AVERAGE POWER: 1mW WAVELENGTH RANGE: 600-700nm www.ipgphotonics.com IEC 60825-1:2014 Legal notices: All product information is believed to be accurate and is subject to change without notice. Information contained herein shall legally bind IPG only if it is specifically incorporated into the terms and conditions of a sales agreement. Some specific combinations of options may not be available. The user assumes all risks and liability whatsoever in connection with use of a product or its application. IPG, IPG Photonics, The Power to Transform and IPG Photonics’ logo are trademarks of IPG Photonics Corporation. © 2024 IPG Photonics Corporation. All rights reserved.
