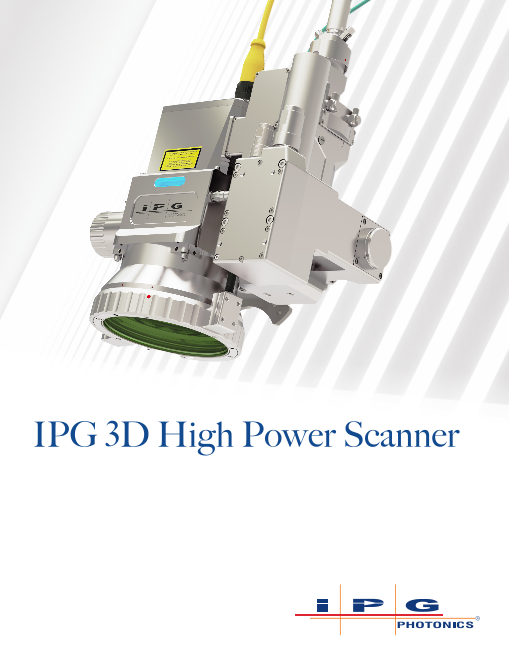

IPG 3D High Power Scanner

3D High Power Scanner IPG 3D High-Power Scanners are industry-leading remote laser welding solutions with up to 12 kW of continuous wave laser power handling that is the highest power handling capabilities of any scanner in its class. This allows for greater weld penetration and Industrial Connectors increased travel speeds, which translates to increased productivity and reduced costs. Industrial Design Plug and play architecture utilizing industrial connectors Designed for the most rugged As the world leader in fiber laser technology, IPG understands that no two applications are allows for quick installation environments, 3D High-Power and easy integration the same. Offering various optical combinations and the ability to interface with any Scanners feature industrial series IPG laser (YLS, YLS-AMB, YLR, YLPN), users can easily tailor the equipment to the IP67 tested enclosures process. The IPG customized interface between the scanner and the laser allows for easy integration and complete process control. Additionally, the scanner-integration-box provides users with all the necessary connections for seamless integration into an automated system. Welding processes are quickly and easily created with IPGScan software. Manufacturers can efficiently setup on-the-fly or point-and-shoot processes to optimize product throughput. Additionally, various interfaces, including Fieldbus (Ethernet/IP, ProfiNet, EtherCAT), are available to automate the system and provide software and hardware status for complete control over the process. Contamination When combined with the IPG patented LDD process monitoring technology, manufacturers Detection can rest assured that parts coming off of the production line are of the highest possible Protect the process and equipment with quality. an integrated sensor for Protective Window IPG 3D High-Power Scanners provide tailored solutions, easy integration, and powerful contamination sensing programming functionality, with reduced overall costs. Quick Exchange Window Assembly IPGScan Software Reduce production down-time for Protective Window change-out thanks to the quick exchange Window Assembly design NO SOFTWARE Eliminate excessive license and renewal fees with IPGScan remote scanning LICENSES software, which is available for download at any time. CONFIGURE REMOTE LASER WELDING APPLICATIONS IN MINUTES IPGScan Process & Timing Visualization PROCESS By importing STL models, users can create realistic process simulations in VISUALIZATION IPGScan. This functionality allows users to develop precise process timings IPGScan is a powerful software suite that provides users with process parameters specifically tailored to the application and ensure beam angles will not clip expensive fixturing. and laser being utilized. Within IPGScan, users have the ability to import CAD models, place process objects (e.g. welds), create simulated motion paths, and optimize process timings using advanced timeline functionality. ON-THE-FLY Advanced timeline functionality allows users to reduce process cycle time by Graphical display of the laser beam emitting from the scan head helps to ensure that expensive fixturing will not be LASER WELDING providing detailed process timings & easy to use tools for making process clipped by the beam. These powerful features enable users to visualize the complete process before equipment ever hits parameter changes. the shop floor. When equipment is set up, users can easily transition from programming in the offline world to the real world with a few quick calibrations. Loaded with powerful software features, IPGScan allows users to develop complete process solutions while reducing overall costs.

Specifications Compatible Laser Series YLS, YLS-AMB, YLR, YLPN Max Multi-Mode CW Power (kW) 12.0 Available Fiber Adapters HLC-8, HLC-8 with Rotary, HLC-16, LCA Optical Specifications Wavelength (nm) 1060 – 1080 Clear Aperture (mm) 33 Focus Lens Options (mm) 254 413 510 500 WF Nominal Working Distance (mm) 261 415 526 630 Square Field of View [x, y] (mm)1 110 × 110 200 × 200 250 × 250 or 150 x 320 Field of View Z Range [Z] (mm) +/-6 +/-10 +/-13 Collimator Options (mm) 100, 120, 140 Mechanical Specifications IP Rating IP67 Tested Scanner Dimensions [LxWxH] (mm)2 317 × 190 × 357 Scanner Weight (kg)2 12.5 Available Accessories Linear and Circular Air Knifes For Spatter and Process Control Through the Lens Vision Cameras Ethernet, HDMI, USB Integration Control Box Complete solution containing power supplies, Scanner Fieldbus Interface, and appropriate cables External Interfaces for Automated Systems Integration Scanner Fieldbus Interface Supported Protocols: Ethernet/IP, ProfiNet, EtherCAT Extended IO Discrete IO Interface: 19 Digital Inputs, 16 Digital Outputs Motion Interface For motor control or encoder feedback Capable of single-ended or differential signal feedback 1 Rectangular fields of view are available for some lens configurations 2 Assuming 3D High Power Scanner with 510 mm focal length, 120 mm collimator, LCA fiber adapter, and without LDD, camera, or air knife attachments IPGPhotonics.com/contact www.ipgphotonics.com Legal notices: All product information is believed to be accurate and is subject to change without notice. Information contained herein shall legally bind IPG only if it is specifically incorporated into the terms and conditions of a sales agreement. Some specific combinations of options may not be available. The user assumes all risks and liability whatsoever in connection with use of a product or its application. IPG, IPG Photonics, The Power to Transform and IPG Photonics’ logo are trademarks of IPG Photonics Corporation. © 2023 IPG Photonics Corporation. All rights reserved.
