Wind Tunnels for All Testing Needs
Advanced Thermal Solutions offers an array of 13 open-loop wind tunnels designed for component, board and heat sink characterization.
Twelve are research quality test instruments with modulated air flow regimens, fifth degree polynomials and transparent Plexiglas test
domains which allow optical access for flow visualization. They come replete with up to 18 sensor ports, velocity ranges from 0 to 1200
fpm and up to nine fans. Two are bench-top wind tunnels, designed for smaller labs, where space is at a premium.
このカタログについて
| ドキュメント名 | ATS OPEN LOOP WIND TUNNELS |
|---|---|
| ドキュメント種別 | 製品カタログ |
| 取り扱い企業 | 有限会社シスコム (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

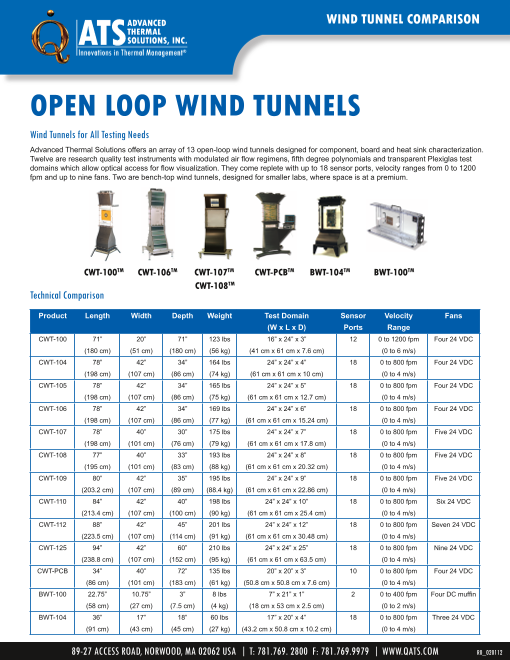

Page1
wind tunnewl CinOdM PtuanrinseOlns
O Pen lOOP wind tunnels
Wind Tunnels for All Testing Needs
Advanced Thermal Solutions offers an array of 13 open-loop wind tunnels designed for component, board and heat sink characterization.
Twelve are research quality test instruments with modulated air flow regimens, fifth degree polynomials and transparent Plexiglas test
domains which allow optical access for flow visualization. They come replete with up to 18 sensor ports, velocity ranges from 0 to 1200
fpm and up to nine fans. Two are bench-top wind tunnels, designed for smaller labs, where space is at a premium.
Cwt-100tM Cwt-106tM Cwt-107tM Cwt-PCBtM Bwt-104tM Bwt-100tM
Cwt-108tM
Technical Comparison
Product Length Width Depth Weight Test Domain Sensor Velocity Fans
(W x L x D) Ports Range
CWT-100 71” 20” 71” 123 lbs 16” x 24” x 3” 12 0 to 1200 fpm Four 24 VDC
(180 cm) (51 cm) (180 cm) (56 kg) (41 cm x 61 cm x 7.6 cm) (0 to 6 m/s)
CWT-104 78” 42” 34” 164 lbs 24” x 24” x 4” 18 0 to 800 fpm Four 24 VDC
(198 cm) (107 cm) (86 cm) (74 kg) (61 cm x 61 cm x 10 cm) (0 to 4 m/s)
CWT-105 78” 42” 34” 165 lbs 24” x 24” x 5” 18 0 to 800 fpm Four 24 VDC
(198 cm) (107 cm) (86 cm) (75 kg) (61 cm x 61 cm x 12.7 cm) (0 to 4 m/s)
CWT-106 78” 42” 34” 169 lbs 24” x 24” x 6” 18 0 to 800 fpm Four 24 VDC
(198 cm) (107 cm) (86 cm) (77 kg) (61 cm x 61 cm x 15.24 cm) (0 to 4 m/s)
CWT-107 78” 40” 30” 175 lbs 24” x 24” x 7” 18 0 to 800 fpm Five 24 VDC
(198 cm) (101 cm) (76 cm) (79 kg) (61 cm x 61 cm x 17.8 cm) (0 to 4 m/s)
CWT-108 77” 40” 33” 193 lbs 24” x 24” x 8” 18 0 to 800 fpm Five 24 VDC
(195 cm) (101 cm) (83 cm) (88 kg) (61 cm x 61 cm x 20.32 cm) (0 to 4 m/s)
CWT-109 80” 42” 35” 195 lbs 24” x 24” x 9” 18 0 to 800 fpm Five 24 VDC
(203.2 cm) (107 cm) (89 cm) (88.4 kg) (61 cm x 61 cm x 22.86 cm) (0 to 4 m/s)
CWT-110 84” 42” 40” 198 lbs 24” x 24” x 10” 18 0 to 800 fpm Six 24 VDC
(213.4 cm) (107 cm) (100 cm) (90 kg) (61 cm x 61 cm x 25.4 cm) (0 to 4 m/s)
CWT-112 88” 42” 45” 201 lbs 24” x 24” x 12” 18 0 to 800 fpm Seven 24 VDC
(223.5 cm) (107 cm) (114 cm) (91 kg) (61 cm x 61 cm x 30.48 cm) (0 to 4 m/s)
CWT-125 94” 42” 60” 210 lbs 24” x 24” x 25” 18 0 to 800 fpm Nine 24 VDC
(238.8 cm) (107 cm) (152 cm) (95 kg) (61 cm x 61 cm x 63.5 cm) (0 to 4 m/s)
CWT-PCB 34” 40” 72” 135 lbs 20” x 20” x 3” 10 0 to 800 fpm Four 24 VDC
(86 cm) (101 cm) (183 cm) (61 kg) (50.8 cm x 50.8 cm x 7.6 cm) (0 to 4 m/s)
BWT-100 22.75” 10.75” 3” 8 lbs 7” x 21” x 1” 2 0 to 400 fpm Four DC muffin
(58 cm) (27 cm) (7.5 cm) (4 kg) (18 cm x 53 cm x 2.5 cm) (0 to 2 m/s)
BWT-104 36” 17” 18” 60 lbs 17” x 20” x 4” 18 0 to 800 fpm Three 24 VDC
(91 cm) (43 cm) (45 cm) (27 kg) (43.2 cm x 50.8 cm x 10.2 cm) (0 to 4 m/s)
