NO.FM50 ｜ Push Pull Clamp No.FM50

Best Price : ￥2,580

Series ： KAKUTA Push Pull Toggle Clamp

Push Pull Clamp

Push Pull Clamp No.FM50 Sales Info

Push Pull Clamp No.FM50 EC Site List

Notes on the displayed price
Prices marked with * are converted on 06:58 using exchange rate information (Yahoo! Finance). Please note that it may differ from the actual price.
Prices marked with * are converted on 06:58 using exchange rate information (Yahoo! Finance). Please note that it may differ from the actual price.
C Supplier Product Info Cur Supplier Comment
Intl Shipping Stock Delivery ※ Price
Amazon 		B00GJJ7JFA No Stock more than 5days Distributor's website Inquiry JPY Best 2,580
Amazon
JPY 2,580

EC SKU

B00GJJ7JFA

C Stock Delivery Intl Shipping
No Stock more than 5days
Lot Price
1 JPY 2,580
Inquiry Distributor's website

Push Pull Clamp No.FM50 Product Description

Push Pull Clamp

One-Action to hold or press and optimal for repetitive work.

Main Usage

Optimal for temporary pressing or holding as inspection, welding, assembly and press fit application.

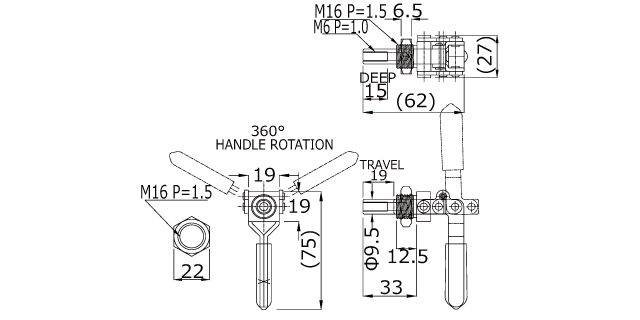

Push Pull Clamp No.FM50 Specifications

Holding Capacity(kN) 0.9
Mounting Method Bracket
Material Steel
Length(mm) 115
Height(mm) 135
Width(mm) 29
Weight(g) 105
Stroke(mm) 19
Accessory Nut M16

Push Pull Clamp No.FM50 Details

Manufacturer Brand KAKUTA
Series Name KAKUTA Push Pull Toggle Clamp
Model Page http://www.kakuta-clamp.com/product/no-fm50/
