NO.FA110RK ｜ Hook Type Clamp w/Lock No.FA110RK
Series ： KAKUTA Hook(Pull) Type Toggle Clamp
Hook(Pull) Type Clamp w/Lock
Hook Type Clamp w/Lock No.FA110RK Sales Info
Hook Type Clamp w/Lock No.FA110RK EC Site List
There is no registered distributor
Would you like to list your products?
Register at ApérzaHook Type Clamp w/Lock No.FA110RK Product Description
Hook(Pull) Type Clamp w/Lock
One-Action to hold or press and optimal for repetitive work.
Main Usage
Hook the U or hook type bar and pull.
Optimal for machine and equipment parts.

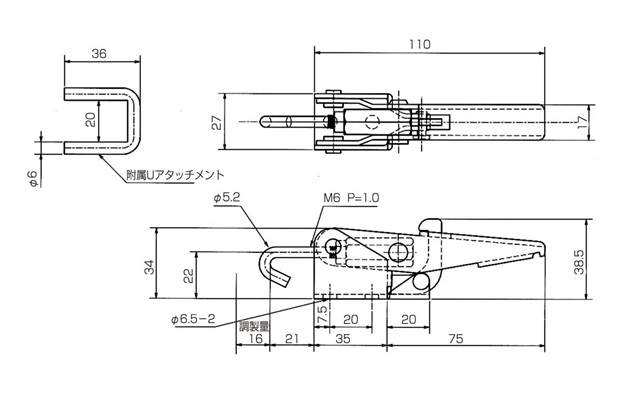

Hook Type Clamp w/Lock No.FA110RK Specifications
| Holding Capacity(kN) | 1.7 |
|---|---|
| Mounting Method | Flange |
| Material | Steel |
| Length(mm) | 155 |
| Height(mm) | 126 |
| Width(mm) | 32.2 |
| Weight(g) | 200 |
| Stroke(mm) | 30 |
| Accessory | U attachement |
Hook Type Clamp w/Lock No.FA110RK Details
| Manufacturer Brand | KAKUTA |
|---|---|
| Series Name | KAKUTA Hook(Pull) Type Toggle Clamp |
| Model Page | http://www.kakuta-clamp.com/product/no-fa110rk/ |
