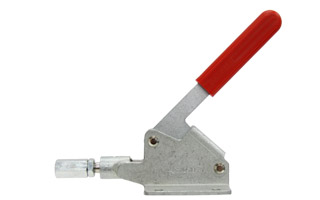

NO.51BM ｜ Straight Line Clamp No.51BM
Series ： KAKUTA Straight Line Toggle Clamp
Straight Line Clamp
Straight Line Clamp No.51BM Sales Info
Straight Line Clamp No.51BM EC Site List
There is no registered distributor
Would you like to list your products?
Register at ApérzaStraight Line Clamp No.51BM Product Description
Straight Line Clamp
One-Action to hold or press and optimal for repetitive work.
Main Usage
Optimal for temporary pressing or holding as inspection, welding, assembly and press fit application.

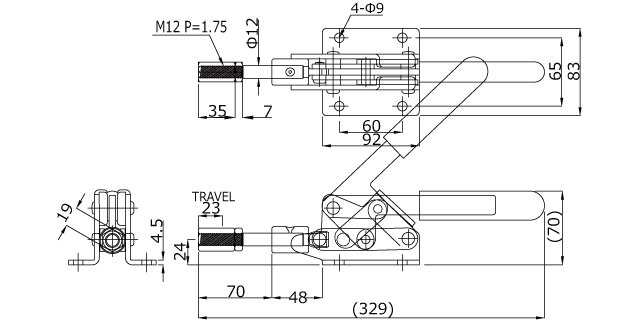

Straight Line Clamp No.51BM Specifications
| Holding Capacity(kN) | 3 |
|---|---|
| Mounting Method | Flange |
| Material | Steel |
| Length(mm) | 329 |
| Height(mm) | 200 |
| Width(mm) | 83 |
| Weight(g) | 1,225 |
| Stroke(mm) | 23 |
| Accessory | HEX High Nut 19x35, Nut |
Straight Line Clamp No.51BM Details
| Manufacturer Brand | KAKUTA |
|---|---|
| Series Name | KAKUTA Straight Line Toggle Clamp |
| Model Page | http://www.kakuta-clamp.com/product/no-51bm/ |
