NO.06 ｜ Straight Line Clamp No.06
Series ： KAKUTA Straight Line Toggle Clamp
Straight Line Clamp
Straight Line Clamp No.06 Sales Info
Straight Line Clamp No.06 EC Site List
There is no registered distributor
Would you like to list your products?
Register at ApérzaStraight Line Clamp No.06 Product Description
Straight Line Clamp
One-Action to hold or press and optimal for repetitive work.
Main Usage
Optimal for temporary pressing or holding as inspection, welding, assembly and press fit application.

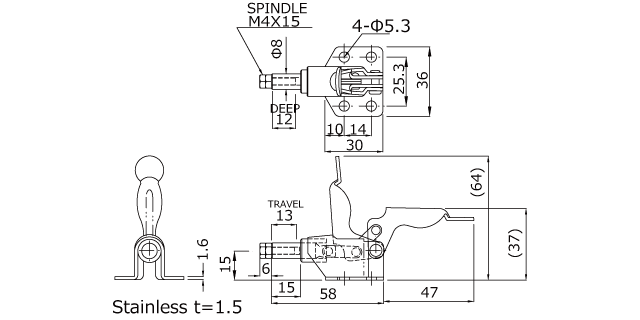

Straight Line Clamp No.06 Specifications
| Holding Capacity(kN) | 0.5 |
|---|---|
| Mounting Method | Flange |
| Material | Steel |
| Length(mm) | 110 |
| Height(mm) | 64 |
| Width(mm) | 36 |
| Weight(g) | 65 |
| Handle Move(deg) | 93 |
| Stroke(mm) | 13 |
| Accessory | M4x15 Spindle |
Straight Line Clamp No.06 Details
| Manufacturer Brand | KAKUTA |
|---|---|
| Series Name | KAKUTA Straight Line Toggle Clamp |
| Model Page | http://www.kakuta-clamp.com/product/no-06/ |
