NO.06-2S ｜ Straight Line Clamp No.06-2S
Series ： KAKUTA Straight Line Toggle Clamp
Straight Line Clamp
Straight Line Clamp No.06-2S Sales Info
Straight Line Clamp No.06-2S EC Site List
There is no registered distributor
Would you like to list your products?
Register at ApérzaStraight Line Clamp No.06-2S Product Description
Straight Line Clamp
One-Action to hold or press and optimal for repetitive work.
Main Usage
Optimal for temporary pressing or holding as inspection, welding, assembly and press fit application.

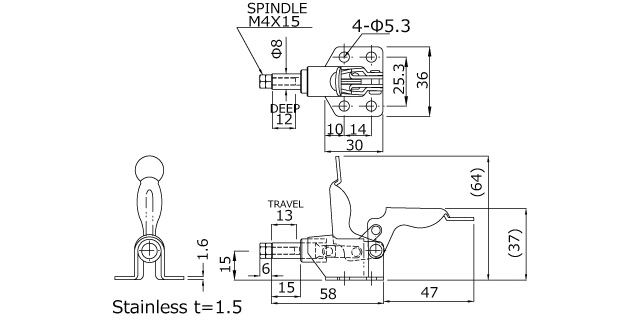

Straight Line Clamp No.06-2S Specifications
| Holding Capacity(kN) | 0.5 |
|---|---|
| Mounting Method | Flange |
| Material | Stainless Steel |
| Length(mm) | 110 |
| Height(mm) | 64 |
| Width(mm) | 36 |
| Weight(g) | 65 |
| Stroke(mm) | 13 |
| Accessory | M4x15 Spindle |
Straight Line Clamp No.06-2S Details
| Manufacturer Brand | KAKUTA |
|---|---|
| Series Name | KAKUTA Straight Line Toggle Clamp |
| Model Page | http://www.kakuta-clamp.com/product/no-06-2s/ |
| Category |
