NO.02BU ｜ Straight Line Clamp No.02BU
Series ： KAKUTA Straight Line Toggle Clamp
Straight Line Clamp w/bush
Straight Line Clamp No.02BU Sales Info
Straight Line Clamp No.02BU EC Site List
There is no registered distributor
Would you like to list your products?
Register at ApérzaStraight Line Clamp No.02BU Product Description
Straight Line Clamp w/bush
One-Action to hold or press and optimal for repetitive work.
Main Usage
Optimal for temporary pressing or holding as inspection, welding, assembly and press fit application.

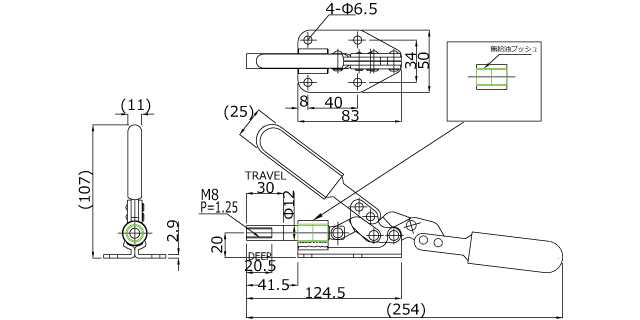

Straight Line Clamp No.02BU Specifications
| Holding Capacity(kN) | 2 |
|---|---|
| Mounting Method | Flange |
| Material | Steel |
| Length(mm) | 260 |
| Height(mm) | 155 |
| Width(mm) | 50 |
| Weight(g) | 375 |
| Stroke(mm) | 30 |
Straight Line Clamp No.02BU Details
| Manufacturer Brand | KAKUTA |
|---|---|
| Series Name | KAKUTA Straight Line Toggle Clamp |
| Model Page | http://www.kakuta-clamp.com/product/no-02bu/ |
