Custom multiple output power supply for “TFE-type scanning electron microscope” .

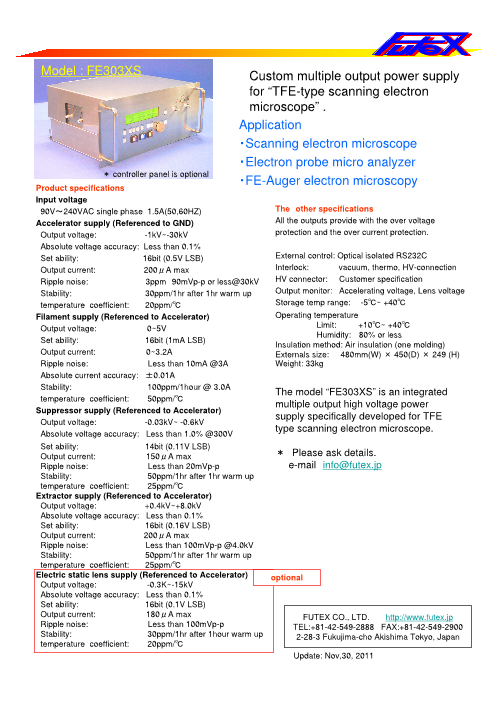

Model : FE303XS Custom multiple output power supply for “TFE-type scanning electron microscope” . Application ・Scanning electron microscope ・Electron probe micro analyzer ＊ controller panel is optional ・FE-Auger electron microscopy Product specifications Input voltage 90V～240VAC single phase 1.5A(50,60HZ) The other specifications Accelerator supply (Referenced to GND) All the outputs provide with the over voltage Output voltage: -1kV~-30kV protection and the over current protection. Absolute voltage accuracy: Less than 0.1% Set ability: 16bit (0.5V LSB) External control: Optical isolated RS232C Output current: 200 A max Interlock: vacuum, thermo, HV-connectionμ Ripple noise: 3ppm 90mVp-p or less@30kV HV connector: Customer specification Stability: 30ppm/1hr after 1hr warm up Output monitor: Accelerating voltage, Lens voltage temperature coefficient: 20ppm/ Storage temp range: -5℃~ +40℃℃ Filament supply (Referenced to Accelerator) Operating temperature Output voltage: 0~5V Limit: +10℃~ +40℃ Humidity: 80% or less Set ability: 16bit (1mA LSB) Insulation method: Air insulation (one molding) Output current: 0~3.2A Externals size: 480mm(W) × 450(D) × 249 (H) Ripple noise: Less than 10mA @3A Weight: 33kg Absolute current accuracy: ±0.01A Stability: 100ppm/1hour @ 3.0A The model “FE303XS” is an integrated temperature coefficient: 50ppm/℃ multiple output high voltage power Suppressor supply (Referenced to Accelerator) supply specifically developed for TFE Output voltage: -0.03kV~ -0.6kV type scanning electron microscope. Absolute voltage accuracy: Less than 1.0% @300V Set ability: 14bit (0.11V LSB) Output current: 150μA max ＊ Please ask details. Ripple noise: Less than 20mVp-p e-mail info@futex.jp Stability: 50ppm/1hr after 1hr warm up temperature coefficient: 25ppm/℃ Extractor supply (Referenced to Accelerator) Output voltage: +0.4kV~+8.0kV Absolute voltage accuracy: Less than 0.1% Set ability: 16bit (0.16V LSB) Output current: 200μA max Ripple noise: Less than 100mVp-p @4.0kV Stability: 50ppm/1hr after 1hr warm up temperature coefficient: 25ppm/℃ Electric static lens supply (Referenced to Accelerator) optional Output voltage: -0.3K~-15kV Absolute voltage accuracy: Less than 0.1% Set ability: 16bit (0.1V LSB) Output current: 180μA max FUTEX CO., LTD. http://www.futex.jp Ripple noise: Less than 100mVp-p TEL:+81-42-549-2888 FAX:+81-42-549-2900 Stability: 30ppm/1hr after 1hour warm up 2-28-3 Fukujima-cho Akishima Tokyo, Japan temperature coefficient: 20ppm/℃ Update: Nov,30, 2011
