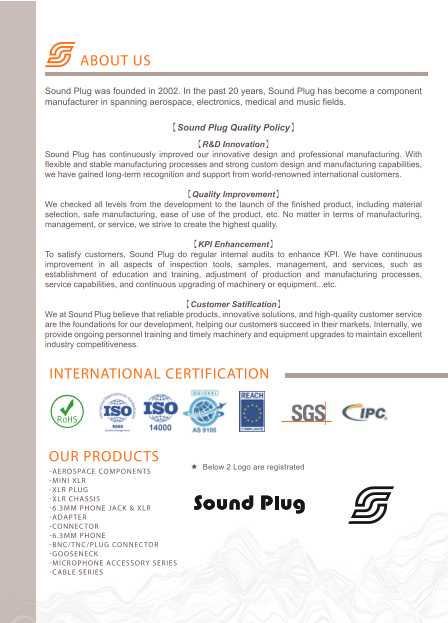

ABOUT US Sound Plug was founded in 2002. In the past 20 years, Sound Plug has become a component manufacturer in spanning aerospace, electronics, medical and music fields. 【Sound Plug Quality Policy】 【R&D Innovation】 Sound Plug has continuously improved our innovative design and professional manufacturing. With flexible and stable manufacturing processes and strong custom design and manufacturing capabilities, we have gained long-term recognition and support from world-renowned international customers. 【Quality Improvement】 We checked all levels from the development to the launch of the finished product, including material selection, safe manufacturing, ease of use of the product, etc. No matter in terms of manufacturing, management, or service, we strive to create the highest quality. 【KPI Enhancement】 To satisfy customers, Sound Plug do regular internal audits to enhance KPI. We have continuous improvement in all aspects of inspection tools, samples, management, and services, such as establishment of education and training, adjustment of production and manufacturing processes, service capabilities, and continuous upgrading of machinery or equipment...etc. 【Customer Satification】 We at Sound Plug believe that reliable products, innovative solutions, and high-quality customer service are the foundations for our development, helping our customers succeed in their markets. Internally, we provide ongoing personnel training and timely machinery and equipment upgrades to maintain excellent industry competitiveness. INTERNATIONAL CERTIFICATION OUR PRODUCTS -AEROSPACE COMPONENTS -MINI XLR -XLR PLUG -XLR CHASSIS -6 .3MM PHONE JACK & XLR -ADAPTER -CONNEC TOR -6.3MM PHONE -BNC/TNC/PLUG CONNEC TOR -GOOSENECK -MICROPHONE ACCESSORY SERIES -CABLE SERIES

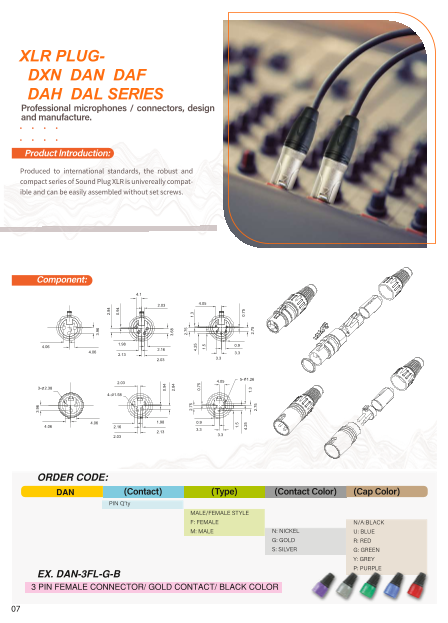

XLR PLUG- DXN DAN DAF DAH DAL SERIES        Produced to international standards, the robust and compact series of Sound Plug XLR is univereally compat- ible and can be easily assembled without set screws.                              07

INTRODUCING DXN-M & DXN-F
     DXN-F ▪8mm Maximum ▪Highly Conductive Tellurium Copper Cable Diameter MaIe Pins for Purest Sound ▪Gold Plated Contacts Maximize Conductivity ▪lnterchangeable DXN-M Color Rings ▪Long Lasting Beryllium Copper Female Sockets ▪Rugged and ▪Gold Plated Contacts Maximize Durable Zinc Shell Conductivity DXN - XLR Series DXN-3F • 3-Pin XLR (male and female) • Additional Noise Reducing Grounding Spring in Female Units • 8mm Maximum Cable Diameter • Long Lasting Beryllium Copper Female Sockets • Highly Conductive Tellurium Copper Male Pins For Purest Sound DXN-3M • Gold Plated Contacts Maximize Conductivity • Rugged and Durable Zinc Shell • 100% Made in Taiwan 08

XLR PLUG www.soundp l ug tw. com DXN-F XLR female connector, cable type, 3~5 pins DXN-F DXN-BF ITEM SHELL CONTACT MATERIAL CONTACT PLATING DXN-(*)F FEMALE, NICKEL PLATED BERYIIIUM COPPER, BRASS NICKEL/GOLD DXN-(*)TFN FEMALE, SATIN NICKEL PLATED BERYIIIUM COPPER, BRASS NICKEL/GOLD DXN-(*)BF FEMALE, BLACK CHROME PLATED BERYIIIUM COPPER, BRASS NICKEL/GOLD DXN-(*)PBF FEMALE, MATTE BLACK PAINTED BERYIIIUM COPPER, BRASS NICKEL/GOLD ITEM COLOR RING CAP CONTACT Q'TY DXN-(*)F BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-(*)TFN BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-(*)BF BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-(*)PBF BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-M Male connector, cable type, 3~6 pins. DXN-M DXN-BM ITEM SHELL CONTACT MATERIAL CONTACT PLATING DXN-(*)M MALE, NICKEL PLATED TELLURIUM COPPER, BRASS NICKEL/GOLD DXN-(*)TMN MALE, SATIN NICKEL PLATED TELLURIUM COPPER, BRASS NICKEL/GOLD DXN-(*)BM MALE, BLACK CHROME PLATED TELLURIUM COPPER, BRASS NICKEL/GOLD DXN-(*)PBM MALE, MATTE BLACK PAINTED TELLURIUM COPPER, BRASS NICKEL/GOLD ITEM COLOR RING CAP CONTACT Q'TY DXN-(*)F BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-(*)TMN BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-(*)BM BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P DXN-(*)PBM BLACK/BLUE/RED/GREEN/GREY/PURPLE BLACK / OD 4.7~8.5 MM 3P-5P 09

XLR PLUG www.soundp l ug tw. com DAN-F XLR Female connector, cable , 3~5 pins DAN-F DAN-FM DAN-BF DAN-PBF ITEM SHELL CONTACT CAP CONTACT Q’TY DAN-(*)F FEMALE, NICKEL PLATED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)FM FEMALE, NICKEL PLATED NICKEL/GOLD METAL/BLACK 3P-5P DAN-(*)BF FEMALE, BLACK CHROME PLATED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)PBF FEMALE, MATTE BLACK PAINTED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)TF FEMALE, SATIN CHROME PLATED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)TFM FEMALE, SATIN CHROME PLATED NICKEL/GOLD METAL/BLACK 3P-5P DAN-SF ★XLR female connector, cable type, 3~5 pins with lock ring. Also available for microphone and gooseneck assemblies. DAN-SF S-101-021B S-101-021B ITEM SHELL CONTACT CAP CONTACT Q’TY DAN-(*)SF FEMALE, BLACK CHROME PLATED /LOCK RING NICKEL/GOLD BLACK 3P-5P DAN-M XLR Male connector, cable type , 3~5 pins DAN-M DAN-MM DAN-BM DAN-PBM ITEM SHELL CONTACT CAP CONTACT Q’TY DAN-(*)M MALE, NICKEL PLATED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)MM MALE, NICKEL PLATED NICKEL/GOLD METAL/BLACK 3P-5P DAN-(*)BM MALE, BLACK CHROME PLATED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)PBF MALE, MATTE BLACK PAINTED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)TM MALE, SATIN CHROME PLATED NICKEL/GOLD BLACK/BLUE/RED/GREEN/GREY/PURPLE 3P-5P DAN-(*)TMM MALE, SATIN CHROME PLATED NICKEL/GOLD METAL/BLACK 3P-5P 10

XLR PLUG www.soundp l ug tw. com DAL Mini XLR female connector,cable type, 3~6 pins. DAL-F DAL-M ITEM SHELL CONTACT CAP CONTACT Q’TY DAL-(*)F FEMALE, NICKEL PLATED /RIGHT ANGLE NICKEL BLACK 3P DAL-(*)BF FEMALE, BLACK E-COATING /RIGHT ANGLE NICKEL BLACK 3P DAL-(*)M MALE, NICKEL PLATED/RIGHT ANGLE NICKEL BLACK 3P DAL-(*)BM MALE, BLACK E-COATING /RIGHT ANGLE NICKEL BLACK 3P XLR-DAN ELECTRICAL: ITEM 3P 4P 5P Contact Resistance < 3m Ohm < 3m Ohm < 3m Ohm > 2g Ohm (Hi-Temp. & Moisture > 2g Ohm (Hi-Temp. & Moisture > 2g Ohm (Hi-Temp. & Moisture Insulation Resistance Environment > 1G Ohm) Environment > 1G Ohm) Environment > 1G Ohm) Dielectric Strength 1500 Dcv 1500 Dcv 1500 Dcv Rated Current 16A 10A 10A Capacitance Between Contacts ≦ 4 Pf ≦ 7 Pf ≦ 7 Pf AWG 2.5Mm /14Awg 1.5Mm /16Awg 1.0Mm /18Awg XLR-DAN MECHANICAL: ITEM 3P / 4P /5P Standard 3P/ 4P/ 5P Excep�onal Life�me/ Insert & Withdraw >1000 cycles >1000 Cycles Inser�on/ Withdrawal Force ≦ 20N ≦ 20N Cable O.D. Range 2.5mm ~8.0mm 10mm /max. XLR-DAN MATERIAL: PART DAN-F, DAN-M DAN-TF, DAN-TM DAN-PBF, DAN-PBM DAN-BF, DAN-BM Nickel Plated Sa�n Chrome Plated Ma�e Black Painted Black Chrome Plated Part (3P/4P/5P) (3P/4P/5P) (3P/4P/5P) (3P/4P/5P) Shell ZnAl4Cu1/ ZnAl4Cu1/ ZnAl4Cu1/ Bronze/ Nickel Plated Sa�n Chrome Plated Ma�e Black Painted Black Chrome Plated Insert P.B.T-Black P.B.T-Black P.B.T-Black P.B.T-Black Contact Female: Phosphor Bronze-C5210 Female: Phosphor Bronze-C5191 Female: Phosphor Bronze-C5210 Female: Phosphor Bronze-C5210 Male: Brass-C3604 Male: Brass-C3604 Male: Brass-C3604 Male: Brass-C3604 Contact Finish Nickel/silver/Gold Plated Nickel/Silver/Gold Plated Nickel/Silver/Gold Plated Silver/Gold Plated Female:SUS-304 Female:SUS-301 Female:SUS-301 Female:SUS-301 Ground Contact MaBronze-C2680 Male: Bronze-C5210P Male: Bronze-C5210P Male: Bronze-C5210P Nickel Plated Nickel Plated Nickel Plated Nickel Blated Clamp POM-Black POM-Black POM-Black POM-Black PA+TPR-Black or PA+TPR-Black or Brass/ PA+TPR-Black or Bronze/ PA+TPR-Black or Bronze/ Relief 11 Brass/ Nickel Plated+TPR Sa�n Chrome Plated+TPR Ma�e Black Planted +TPR Black Chrome Plated+TPR

XLR PLUG www.soundp l ug tw. com DAF DAF-F DAF-M ITEM SHELL CONTACT CAP CONTACT Q’TY DAF-(*)F FEMALE, NICKEL PLATED NICKEL BLACK 3P-5P DAF-(*)M MALE, NICKEL PLATED NICKEL BLACK 3P-5P DAH DAH-F DAH-M ITEM SHELL CONTACT CAP CONTACT Q’TY DAH-(*)F FEMALE, NICKEL PLATED NICKEL BLACK 3P-5P DAH-(*)M MALE, NICKEL PLATED NICKEL BLACK 3P-5P 12
