タッチパネル付き一体型PC|AFL2-W19A-H61

製品カタログ

LEDライトバーシステムを搭載したパネル型PCの登場です

詳細な仕様や付属品のご紹介

このカタログについて

ドキュメント名 タッチパネル付き一体型PC|AFL2-W19A-H61
ドキュメント種別 製品カタログ
ファイルサイズ 1.7Mb
関連製品
登録カテゴリ
取り扱い企業 株式会社エヌ・エム・アール (この企業の取り扱いカタログ一覧)

この企業の関連カタログ

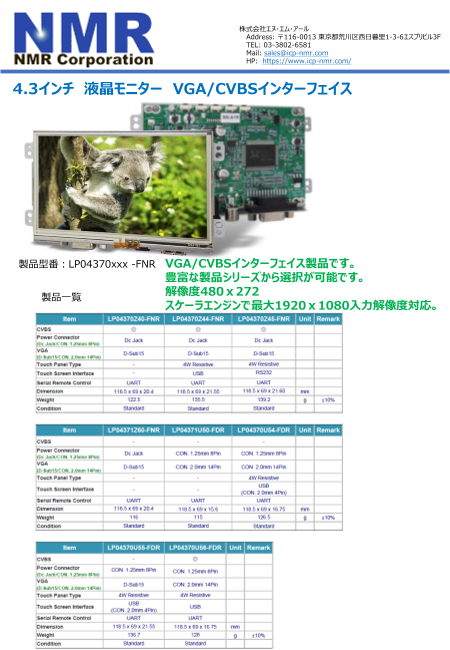

この企業の関連カタログの表紙
LP04370xxx-FNR 4.3インチ 液晶モニター VGA/CVBSインターフェイス
製品カタログ

株式会社エヌ・エム・アール

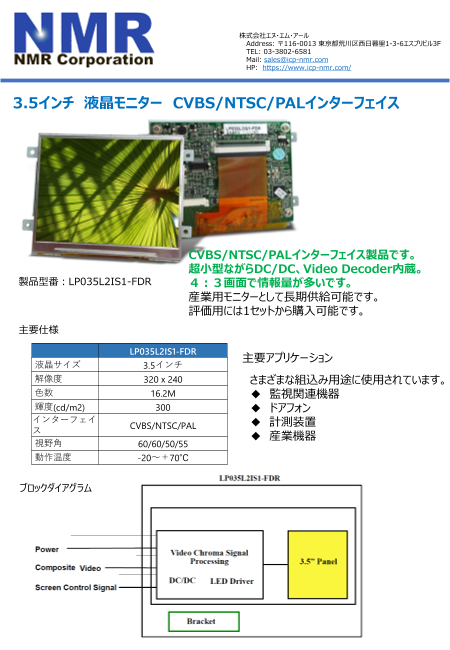

この企業の関連カタログの表紙
LP035L2IS1-FDR 3.5インチ 液晶モニター CVBS/NTSC/PAL インターフェイス
製品カタログ

株式会社エヌ・エム・アール

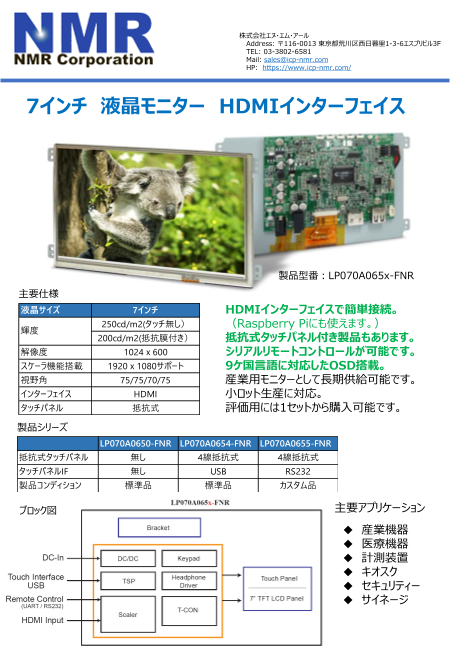

この企業の関連カタログの表紙
LP070A065x-FNR 7インチ 液晶モニター HDMIインターフェイス
製品カタログ

株式会社エヌ・エム・アール

このカタログの内容

Page1

Display System w w w . i e i w o r l d . c o m AFL2-17A-H61 Intel® Core™ i7/i5/i3 and Pentium® processor AFL2-W19A-H61 Intel® Core™ i7/i5/i3 and Pentium® processor Features ● Programmable colorful LED light bar ● Intel® Core™ i5/ i3 and Pentium® processor ● Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) preinstalled with 4GB (2GB x 2) ● Projected capacitive touchscreen and 5-wire resistive type touchscreen supported ● Wi-Fi 802.11b/g/n 2T2R high speed wireless ● EM or Mifare RFID reader ● Built-in 2-megapixel webcam with AF, AE and AWB capabilities ● Built-in two 2W speakers and microphone Optional CD-ROM available ● IP 64 compliant front panel ● Auto dimming control ● Light fanless design ● Type K thermocouple temperature sensor ● Wide range 9~36 VDC input AFL2-17A-H61 Wireless 802.11b/g/n EM/Mifare Speakers Microphone Camera Specifications Touchscreen -20ºC~50ºC IP64 Model AFL2-17A-H61 AFL2-W19A-H61 Size 17" (4:3) W18.9” (16:10) Resolution 1280 (W) x 1024 (H) 1440 (W) X 900 (H) Brightness (cd/m²) 350 250 LCD Contrast Ratio 1000:1 1000:1 Specifications LCD Color 16.7M 16.7M Pixel Pitch (mm) 0.264 (H) x 0.264 (V) 0.2835 (H) x 0.2835 (V) Viewing Angle (H-V) 170° / 160° 170° / 160° Backlight MTBF 50,000 (LED backlight) 30,000 (LED backlight) Touch Screen 5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface Touch Touch Controller PenMount DMC9000 / EETI EXC7200 & EXC5404 CPU 2nd/3rd Generation Intel® Core™ i7/i5/i3 and Pentium® processors Chipset Intel® H61 RAM Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2) Ethernet Realtek RTL8111E PCIe GbE controller supporting ASF 2.0 Audio Codec Realtek ALC892 HD Audio codec HDD 2.5" SATA 3Gb/s HDD bay CD-ROM 1 x Slim Type CD-ROM bay System 2 x RS-232 (DB-9 connector) 1 x Mic (on the left) 1 x RS-422/485 (DB-9 connector) 1 x VGA port (DB-15 connector) 2 x GbE LAN (one on the bottom, one on the left) 1 x HDMI port 2 x USB 3.0 1 x Power switch Input / Output 3 x USB 2.0 (two on the bottom, one on the left) 1 x AT/ATX switch 1 x Mini USB port on front panel 1 x Reset button 1 x MicroSD card slot on front panel 1 x Clear CMOS button 1 x Line out (on the left) 1 x 9 ~ 36V DC input jack 1 1 x Type K connector IEI Mobile Expansion Interface 1 x PCIe Mini slot reserved Solutions Audio AMP 2W + 2W (internal speaker) Camera 2 M pixels with low light function RFID Reader EM 125 KHz or Mifare 13.56 MHz card reader (optional) MSR Card Reader MSR card reader (optional) Other TPM Reserved by pin-header 2 Features OSD Function LCD on/off, brightness up/down, volume up/down, Hot Key Automation Ambient Light Sensor Yes Panel Infrared Remote Controller Yes Solutions LED Light Bar Yes System Cooling Light fanless (smart fan operates above default temperature setting) Wireless IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified Connectivity Bluetooth Bluetooth V2.0+EDR with USB interface (optional) 3 Construction Front Panel PC + ABS Plastic Mounting Panel, Wall, Rack, Stand, Arm VESA 100mm x 100mm Panel, Wall, Stand, Arm VESA 100mm x 100mm PACSmate Medical Physical Color Black Solutions Dimensions (WxHxD)(mm) 418 x 378 x 65 488 x 361 x 65 Weight (N/G) 6.9 kg / 9.0 kg 7.3 kg / 10 Kg Operating Temperature (°C) -20°C ~ 50°C -20°C ~ 40°C (Ambient with air flow) 4 Storage Temperature (°C) -20°C ~ 60°C Environment Humidity 10% to 95% (non-condensing) Optional Peripherals IP Level IP 64 compliant front panel Safety&EMC CE / FCC Power Supply 120W power adapter , Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC Power Power Requirement 9 ~ 36 VDC Power Consumption 19V@5.3A 19V@5.58A (Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory) (Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory) AFL2-17A-2014-V10 2-27
Page2

Display System w w w . i e i w o r l d . c o m Ordering Information AFL2-17A-H61/AFL2-17AB-H61 LED Bar Model Description 17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17A-H61-i5/R-R12 resistive touch screen, 2M camera, microphone, R12 17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17A-H61-i5/PC-R12 projected capacitive touchscreen, 2M camera, microphone, R12 17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17A-H61-i3/R-R12 resistive touch screen, 2M camera, microphone, R12 LED Bar 17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17A-H61-i3/PC-R12 projected capacitive touchscreen, 2M camera, microphone, R12 17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-17A-H61-P/R-R12 module, resistive touch screen, 2M camera, microphone, R12 17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-17A-H61-P/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, R12 17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17AB-H61-i5/R-R12 resistive touch screen, 2M camera, microphone, without LED bar, R12 17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17AB-H61-i5/PC-R12 projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12 17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2) 802.11b/g/n wireless module, AFL2-17AB-H61-i3/R-R12 resistive touch screen, 2M camera, microphone, without LED bar, R12 Without LED Bar 17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module, AFL2-17AB-H61-i3/PC-R12 projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12 17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-17AB-H61-P/R-R12 module, resistive touch screen, 2M camera, microphone, without LED bar, R12 1 17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless IEIMobile AFL2-17AB-H61-P/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12 Solutions 2 Options Item AFL2-17A-H61 AFL2-W19A-H61 Automation Panel Solutions Panel Mounting Kit AFL2PK-17A AFL2PK-W19A Wall Mounting Kit AFLWK-19B Rack Mounting Kit AFL2RK-17A N/A 3 Arm ARM-31-RS PACSmate Stand STAND-A19-RS/STAND-A21-R10/STAND-C19-R10/STAND-210-R11 Medical Solutions Magnetic Stripe Reader AFL2P-W19AMSR-U-R10 Slim DVD Burner AFL2-DVD-KIT01-R10 4 Bluetooth Module Kit AFL2-BT-KIT01-R11 Trusted Platform Module (TPM) TPM-IN01-R11 Optional Peripherals EM RFID Reader AFL2-EM-RFID-KIT01-R10 Mifare RFID Reader AFL2-MF-RFID-KIT01-R11 OS: Win 7 Embedded (DVD-ROM) AFL2-17A-H61-WES7P-R10 (for Projected Capacitive Touch) AFL2-W19A-H61-WES7P-R10 (for Projected Capacitive Touch) AFL2-17A-H61-WES7E-R10 (for Resistive Touch) AFL2-W19A-H61-WES7E-R10 (for Resistive Touch) 2-28 AFL2-17A-2014-V10
Page3

Display System w w w . i e i w o r l d . c o m Ordering Information AFL2-W19A-H61/AFL2-W19AB-H61 LED Bar Model Description 18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19A-H61-i5/R-R12 module, resistive touch screen, 2M camera, microphone, R12 18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19A-H61-i5/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, R12 18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19A-H61-i3/R-R12 module, resistive touch screen, 2M camera, microphone, R12 LED Bar 18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19A-H61-i3/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, R12 18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19A-H61-P/R-R12 module, resistive touch screen, 2M camera, microphone, R12 18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19A-H61-P/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, R12 18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19AB-H61-i5/R-R12 module, resistive touch screen, 2M camera, microphone, without LED bar, R12 18.9" 250cd/m² WXGA+ panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19AB-H61-i5/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12 18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19AB-H61-i3/R-R12 module, resistive touch screen, 2M camera, microphone, without LED bar, R12 Without LED Bar 18.9" 250cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19AB-H61-i3/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12 18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19AB-H61-P/R-R12 module, resistive touch screen, 2M camera, microphone, without LED bar, R12 1 18.9" 250cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless AFL2-W19AB-H61-P/PC-R12 module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R12 IEI Mobile Solutions Packing List CD-RW/DVD-RW Driver Spec. 2 Item P/N Q'ty Description The drive is able to write CD-R/RW disks, DVD+R/RW Automation disks and DVD-R/RW disks Panel Utility CD 7B000-000956-RS 1 drivers and user manual Solutions One Key Recovery CD 7B000-000781-RS 1 Drive Type Internal Slim CD-RW/DVD Combo Drive FSP120-AAB;90~264VAC input ; 120W Power Adapter 63000-FSP120AAB-RS 1 ;19VAC output (Meet PSE) 3 Power Cord 32702-000401-100-RS 1 European, 1500mm Write: PACSmate Read: Medical Data Transfer DVD+R/DVD+RW/DVD-R: 8X DVD-ROM: 8X Solutions Power Transfer Cord 32000-089400-RS 1 Rate DVD-RW: 6X CD-ROM: 24X Infrared Remote Controller 7Z000-SLPCB005-RS 1 CD-R/CD-RW: 24X M3 Screw Pack 44013-030041-RS 4 M3 x 4 for securing HDD 4 M4 Screw Pack 44033-040061-RS 4 M4 x 4 for VESA screw Interface SATA Optional I/O Bracket 41013-0290C2-00-RS 1 I/O Bracket Peripherals Temperature Sensor Cable 32133-004300-100-RS 1 Buffer Memory 2MB Pen 43125-0002C0-00-RS 1 For Resistive Touch AFL2-17A-2014-V10 2-29
Page4

Display System w w w . i e i w o r l d . c o m Function Keys Micphone Fn Backlight On/Off RFID enable / disable Audio - Audio mute Audio + Camera enable / disable Brightness - Front side Mini USB&MicroSD enable / disable Brightness + Power on / off 2 x USB 2.0 RS-422/485 Power Switch 2 x RS-232 VGA DC Jack 1 x Mini USB port Mic, Line-out 1 x MicroSD card slot 1 x USB 2.0 1 x GbE LAN Type K thermocouple Hot Keys 2 x USB 3.0 HDMI GbE LAN temperature sensor AFL2-17A-H61 Dimensions (Unit: mm) 1 IEIMobile Solutions 2 AFL2-W19A-H61 Dimensions Automation (Unit: mm) Panel Solutions 3 PACSmate Medical Solutions 4 Optional Peripherals 2-30 AFL2-17A-2014-V10
