TPC6000-C153-T

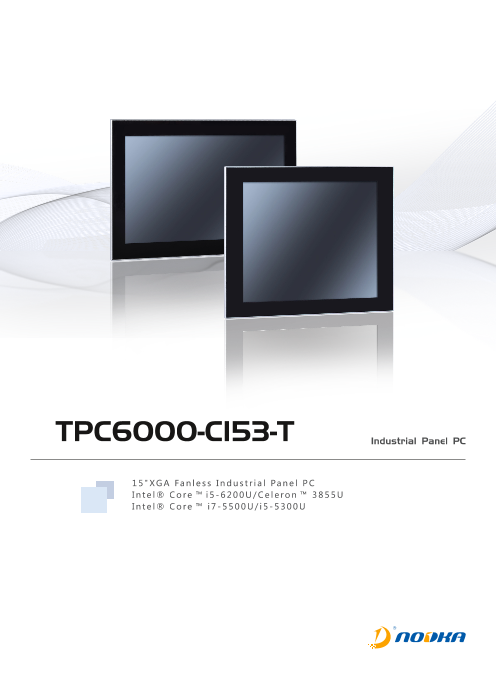

TPC6000-C153-T Industrial Panel PC 1 5 " XG A Fa n l e s s I n d u s t r i a l Pa n e l P C I n t e l ® C o re ™ i 5 - 6 2 0 0 U / C e l e ro n ™ 3 8 5 5 U I n t e l ® C o re ™ i 7 - 5 5 0 0 U / i 5 - 5 3 0 0 U

TPC6000-C153-T Specifications： CPU Intel® Core™i5-6200U/Celeron™ 3855U Intel® Core™ i7-5500U/i5-5300U Base Frequency Dual Core 2.3GHz / 1.6 GHz / Dual Core 2.4GHz / Dual Core 2.3GHz L3 Cache 3MB / 2MB / 4MB / 3M Processor Chipset Integrated PCH-LP Memory 1 x 204-pin DDR3L-1600MHz SODIMM, support up to 16GB Storage Medium 1 x 2.5" SATA bay + 1 x mSATA LAN 2 x Intel i210 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection Audio Realtek ACL662 Audio controller USB 4 x USB3.0/2.0/1.1 I/O COM 2 x RS-232 / RS-485 with surge protection,RS485 support automatic flow control Texpansion slot 1 x Mini-PCIe slot, extensible 3G,WIFI wireless card，1 x EasyBUS slot Rear I/O DVI-I / 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in Dimensions (W x H x D) 393mm x 317mm x 72mm (15.47" x 12.48" x 2.83") Physical Drill Hole Size (W x H) 376mm x 302mm (14.80" x 11.89") NW － OS OS Windows 7, Windows 7 Embedded, Windows8, Windows10, Ubuntu, VXWORKS, QNX Input voltage 12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection Power Maximum Power Dissipation LCD Size 15"XGA TFT Resolution 1024 x 768 Colors 16.7MB Active Area (W x H) 304.13mm x 228.10mm (11.97" x 8.98") Backlight LED LCD MTBF 30000hrs Pixel Pitch(H x V) 0.297 x 0.297 Luminance 420cd/m2 Contrast Ratio 800:1 Viewing Angle (L) 80 / (R) 80 / (T) 80 / (B) 80 Type Multi-point capacitive touch screen Transmittance > 75% Controller interface USB Touchscreen Driver Support Windows7, Windws 8, Windows 10, Linux Multi-touch 10 points (windows system) Surface Hardness Mohs' Number 7 -20 ~ 60°C (-4~140°F) (Wide temperature SSD) Work Temperature 0 ~ 45°C (32~113°F) (General temperature HDD/SSD) Storage Temperature -30 ~ 80°C (-22 ~ 176°F) Relative humidity 5~95% (Non condensation) Environmental Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration EMC CE/FCC Class A Water-proof Front panel IP65 Industrial Panel PC www.nodka.com

TPC6000-C153-T Dimensions: Unit：mm 376.00 72.00 393.00 8.00 373.00 26.00 100.00 Cabinet Drill Hole Size I/O: Interface Definition： A：DC IN (12/24V) J：LAN2 B：Power Switch K：USB3 C：Remote Switch L：USB4 D：Power LED M：LAN1 E：HDD LED N：USB1 F：PS/2 O：USB2 G：Audio P：DVI H：COM1 Q：VGA I：COM2 Ordering Information: Product Code Description TPC6000-C153-T-SL1503 15"LCD/6th Generation Intel® Celeron™ 3855U 1.6GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet ports/4*USB3.0/Capacitive Touch Screen/1024*768/DC12V-24V input/Two-year warranty TPC6000-C153-T-SL6200U 15"LCD/6th Generation Intel® Core™ i5-6200U 2.8GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet ports/4*USB3.0/Capacitive Touch Screen/1024*768/DC12V-24V input/Two-year warranty TPC6000-C153-T- 15"LCD/5th Generation Intel® Core™ i7-5500U 3.0GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet BW5500U ports/4*USB3.0/Capacitive Touch Screen/1024*768/DC12V-24V input/Two-year warranty TPC6000-C153-T- 15"LCD/5th Generation Intel® Core™ i5-5300U 2.9GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet BW5300U ports/4*USB3.0/Capacitive Touch Screen/1024*768/DC12V-24V input/Two-year warranty Optional Equipment: Option Adapter 12V/60W 2 pin Phoenix terminal Option Chinese standard Power Line 1.8m Standard 4*Hooks Standard Manufacturer Certificate Standard Warranty Card Standard Random Listing Industrial Panel PC www.nodka.com 302.00 317.00 299.00 100.00
