IPC615H

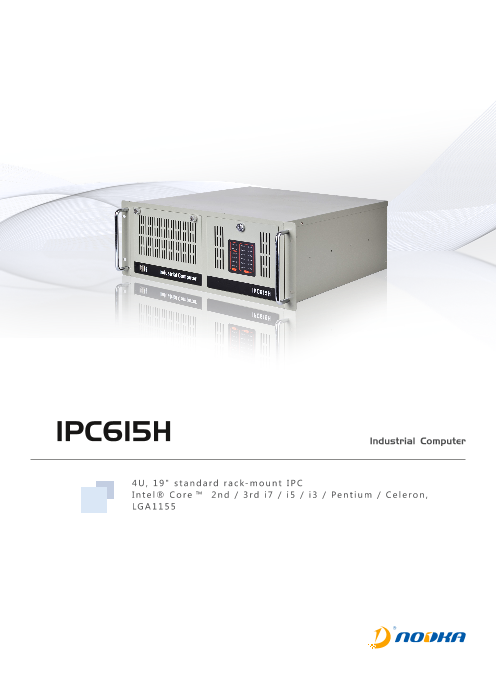

IPC615H Industrial Computer 4 U , 1 9 " s t a n d a rd r a c k- m o u n t I P C I n t e l ® C o re ™ 2 n d / 3 rd i 7 / i 5 / i 3 / Pe n t i u m / C e l e ro n , LG A 1 1 5 5

IPC615H Specifications： CPU Intel® Core™ 2nd / 3rd i7 / i5 / i3 / Pentium / Celeron, LGA1155 Frequency 1.4GHz~3.3GHz Processor L2 Cache Up to 8MB Chipset Intel B75 Express Chipset BIOS AMI EFI 16Mbit Architecture DDR3-1066 / 1333 / 1600MHz ( Only Ivy bridge can fit for 1600MHz) Memory Capacity up to 16GB DIMM 1 x 204-pin SODIMM Display controller Intel®HD GT2 3000/4000 Series Display controller, 200MHz~1.2GHz Graphics engine DirectX 11, OpenGL3.1, OpenCL1.1 support; Hardware encoding/decoding: MPEG2/MPEG4; Hardware encoding/decoding: H.264/VC1/MVC Display VGA Up to 1920 x 1200 HDMI Support 1920 x 1200 Dual display Yes, VGA + HDMI LAN1 Realtek RTL-8111F Gbe LAN controller LAN LAN2 Realtek RTL-8111F Gbe LAN controller Audio Port Realtek ACL662 Audio controller, Line-out, Mic-in. COM 2 x RS-232 ，optional RS-485,up to 6 RS-232(Option) LPT 1, support SPP/EPP/ECP mode (Option) I/O PS2 1 x PS2 Keyboard + 1 x PS2 Mouse USB 4 x USB3.0/2.0/1.1, 2 x USB2.0/1.1 Digital IO N/A Other WatchDog 0~255 seconds programmable PCIe 1 x PCIe x16 slot, 1 x PCIe x4 slot， 1 x PCIe x1 slot Texpansion slot PCI 4 x 32bits PCI slot HDD 1 x 2.5" HDD Bay, 4 x SATA2.0 Port (Max. data transfer rate 3Gb/s) Storage Medium SSD 1 * full size mSATA SSD Microsoft Windows Windows XP, Windows XP Embedded, Windows 7, Windows 7 Embedded, Windows 8 OS Linux Ubuntu Type AT Power Input voltage AC90 ～ 132V/AC180~264V Power Supply - No-load - Power Dissipation Full-load - Box structure Full steel box structure Mounting 19-inch standard rack-mounted Mechanism Parameters Dimensions 482.6mm x 177.8mm x 430mm (19" * 7" * 16.93") NW 9.62kg (21.21lb) -20 ~ 60° C (-4 ℉ ~140 ℉ ) (Wide temperature SSD) Work Temperature 0 ~ 45° C (32 ℉ ~113 ℉ ) (General temperature HDD/SSD) Storage Temperature -40 ~ 80℃ (-40 ~ 176 ℉ ) Relative humidity 5~95% (Non condensation) Environmental Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration EMC CE/FCC Class A Safety Certification CCC Industrial Computer www.nodka.com

IPC615H Dimensions: Unit：mm 3 4 5 6 1 1 / 2/ 2 I/O: A B C D E F G H Interface Definition： A：Lineout/MIC I：USB 2.0*2 B：PS/2 J：Power LED/Run LED C：USB 3.0*2/LAN K：LAN LED D：USB 3.0*2/LAN L：COM LED E：HDMI F：VGA G：COM1/2 H：AC IN I J K L Ordering Information: Product Code Description No CPU/No Memory/No Hard Disk/4*RS232/2*（RS232/485）/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/HDMI/VGA/Audio card/AC220V IPC615H input/4PCI/1PCIe 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty IPC615H-G2030-4G- G2030/4G/64G/4*RS232/2*（RS232/485）/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/HDMI/VGA/Audio card/AC220V input/4PCI/1PCIe SSD64G 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty Optional Equipment: Packing List: CPU Support Intel Pentium/ Celeron/ 2nd and 3rd Generation Core i3/5/7 CPU, LGA1155 - 1 x Power line Memory Support DDR3 1600/1333/1066 MHz, 1 * SO-DIMM Slot, Up to 16 GB Memory Size Hard disk Support 2.5"/3.5",MSATA - Warranty Card CD-ROM Desktop Computer CD-ROM - Manufacturer Certificate Keyboard/Mouse Optional Industrial Computer www.nodka.com 3 4 5 6 1 1 / 2/ 2 430 481 177
