「IPC615F」はCPUに第3または第2世代 Intel Core TM i7 / i5 / i3 / Pentium / Celeron を採用したラックマウント（4U）型ファンレス・PCです。
■ カタログ記載内容
・仕様一覧
・サイズ・図面
・インターフェース
・製品ラインナップ
・付属品
・オプション
このカタログについて
| ドキュメント名 | IPC615F |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 1.6Mb |
| 登録カテゴリ | |
| 取り扱い企業 | 株式会社連基 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容
Page1

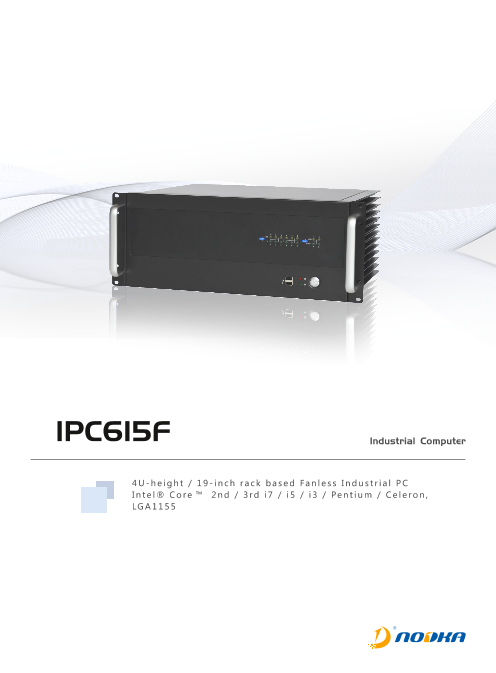

IPC615F Industrial Computer
4 U - h e i g h t / 1 9 - i n c h r a c k ba s e d Fa n l e s s I n d u s t r i a l P C
I n t e l ® C o re ™ 2 n d / 3 rd i 7 / i 5 / i 3 / Pe n t i u m / C e l e ro n ,
LG A 1 1 5 5
Page2
IPC615F
Specifications：
CPU Intel® Core™ 2nd / 3rd i7 / i5 / i3 / Pentium / Celeron, LGA1155
Frequency 1.4GHz~3.3GHz
Processor L2 Cache Up to 8MB
Chipset Intel B75 Express Chipset
BIOS AMI EFI 16Mbit
Architecture DDR3-1066 / 1333 / 1600MHz ( Only Ivy bridge can fit for 1600MHz)
Memory Capacity up to 16GB
DIMM 2 x 204-pin SODIMM
Display controller Intel®HD GT2 3000/4000 Series Display controller, 200MHz~1.2GHz
Graphics engine DirectX 11, OpenGL3.1, OpenCL1.1 support；Hardware encoding/decoding: MPEG2/MPEG4；Hardware encoding/decoding: H.264/VC1/MVC
Display VGA Up to 1920 x 1200
DVI Support 1920 x 1200
Dual display Yes, VGA + DVI
LAN1 Realtek RTL-8111F Gbe LAN controller
LAN
LAN2 Realtek RTL-8111F Gbe LAN controller
Audio Port Realtek ACL662 Audio controller, Line-out, Mic-in.
COM 6 x RS-232
LPT 1, support SPP/EPP/ECP mode
I/O
PS2 1 x PS2 Keyboard + 1 x PS2 Mouse
USB 4 x USB3.0/2.0/1.1, 2 x USB2.0/1.1
Digital IO N/A
Other
WatchDog 0~255 seconds programmable
PCIe 1 x PCIe x16 slot, 1 x PCIe x4 slot， 1 x PCIe x1 slot
Texpansion slot
PCI 4 x 32bits PCI slot
HDD 1 x 2.5" HDD Bay, 4 x SATA2.0 Port (Max. data transfer rate 3Gb/s)
Storage Medium
SSD 1 * full size mSATA SSD
Microsoft Windows Windows XP, Windows XP Embedded, Windows 7, Windows 7 Embedded, Windows 8
OS
Linux Ubuntu
Type AT
Power Input voltage AC90 ～ 132V/AC180~264V
Power Supply -
No-load -
Power Dissipation
Full-load -
Box structure Fanless Full steel box structure，Large area designed aluminum radiating finned heat sinks
Mounting 19-inch standard rack-mounted
Mechanism Parameters
Dimensions 482.6mm x 177.8mm x 364.2mm (19" * 7" * 14.34")
NW 9.62kg (21.21lb)
-20 ~ 60° C (-4 ℉ ~140 ℉ ) (Wide temperature SSD)
Work Temperature
0 ~ 45° C (32 ℉ ~113 ℉ ) (General temperature HDD/SSD)
Storage Temperature -40 ~ 80℃ (-40 ~ 176 ℉ )
Relative humidity 5~95% (Non condensation)
Environmental
Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC CE/FCC Class A
Safety Certification CCC
Industrial Computer
www.nodka.com
Page3
IPC615F
Dimensions:
Unit：mm
482. 5
46 5 8
R2
,
I/O:
Interface Definition:
A:DC IN G:VGA
B:Power Switch H:DVI
C:Line out/MIC J:COM1/2
D:PS/2 K:USB 2.0*2
E:USB 3.0*2/LAN L:LED
F:USB 3.0*2/LAN M:Power Switch
Ordering Information:
Product Code Description
IPC615F(eBOX-3632H No CPU/No Memory/No Hard Disk/6*RS232/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/DVI/VGA/Audio card/AC220V input/4PCI/1PCIe ） 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty
Optional Equipment: Packing List:
CPU Support Intel Pentium/ Celeron/ 2nd and 3rd Generation Core i3/5/7 CPU, LGA1155 - 1 x Power line
Memory Support DDR3 1600/1333/1066 MHz, 1 * SO-DIMM Slot, Up to 16 GB Memory Size
Hard disk Support 2.5"/3.5",MSATA - Warranty Card
CD-ROM Desktop Computer CD-ROM
- Manufacturer Certificate
Keyboard/Mouse Optional
Industrial Computer
www.nodka.com
177,8
101,6
364,2
165
