IPC615W

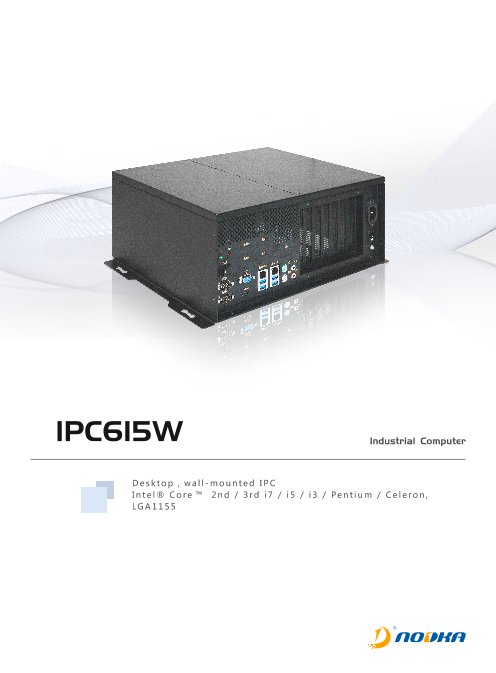

IPC615W Industrial Computer D e s k t o p ， w a l l - m o u n t e d I P C I n t e l ® C o re ™ 2 n d / 3 rd i 7 / i 5 / i 3 / Pe n t i u m / C e l e ro n , LG A 1 1 5 5

IPC615W Specifications： CPU Intel® Core™ 2nd / 3rd i7 / i5 / i3 / Pentium / Celeron, LGA1155 Frequency 1.4GHz~3.3GHz Processor L2 Cache Up to 8MB Chipset Intel B75 Express Chipset BIOS AMI EFI 16Mbit Architecture DDR3-1066 / 1333 / 1600MHz ( Only Ivy bridge can fit for 1600MHz) Memory Capacity up to 16GB DIMM 2 x 204-pin SODIMM Display controller Intel®HD GT2 3000/4000 Series Display controller, 200MHz~1.2GHz Graphics engine DirectX 11, OpenGL3.1, OpenCL1.1 support；Hardware encoding/decoding: MPEG2/MPEG4；Hardware encoding/decoding: H.264/VC1/MVC Display VGA Up to 1920 x 1200 HDMI Support 1920 x 1200 Dual display Yes, VGA + HDMI LAN1 Realtek RTL-8111F Gbe LAN controller LAN LAN2 Realtek RTL-8111F Gbe LAN controller Audio Port Realtek ACL662 Audio controller, Line-out, Mic-in. COM 6 x RS-232(COM1~COM2 Optional RS-485) LPT 1, support SPP/EPP/ECP mode I/O PS2 1 x PS2 Keyboard + 1 x PS2 Mouse USB 4 x USB3.0/2.0/1.1, 2 x USB2.0/1.1 Digital IO N/A Other WatchDog 0~255 seconds programmable PCIe 1 x PCIe x16 slot, 1 x PCIe x4 slot， 1 x PCIe x1 slot Texpansion slot PCI 4 x 32bits PCI slot HDD 1 x 2.5" HDD Bay, 4 x SATA2.0 Port (Max. data transfer rate 3Gb/s) Storage Medium SSD 1 * full size mSATA SSD Microsoft Windows Windows XP, Windows XP Embedded, Windows 7, Windows 7 Embedded, Windows 8 OS Linux Ubuntu Type AT Power Input voltage AC90 ～ 132V/AC180~264V Power Supply - No-load - Power Dissipation Full-load - Box structure Fanless Full steel box structure，Large area designed aluminum radiating finned heat sinks Mounting Desktop，wall-mounted Mechanism Parameters Dimensions 405.4mm x 312.8mm x 158mm (15.96" * 12.31" * 6.22") NW 7.28kg (16.05lb) -20 ~ 60° C (-4 ℉ ~140 ℉ ) (Wide temperature SSD) Work Temperature 0 ~ 45° C (32 ℉ ~113 ℉ ) (General temperature HDD/SSD) Storage Temperature -40 ~ 80℃ (-40 ~ 176 ℉ ) Relative humidity 5~95% (Non condensation) Environmental Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration EMC CE/FCC Class A Safety Certification CCC Industrial Computer www.nodka.com

IPC615W Dimensions: Unit：mm 405,4 385,4 152,5 365 3 4 5 6 1 2/ 1/ 2 HDM I I/O: Interface Definition： A：PW_ON B：COM1/COM2 C：COM3/COM4/COM5/COM6 3 4 L D：HDMI 5 6 E：VGA 1 2/ 1 / M F：LAN/USB 3.0*2 2 G：LAN/USB 3.0*2 HDM I H：KB/MS J：LINE-OUT/MIC K：LPT L：AC IN 220V A B C D E F G H J K M：POWER Swich Ordering Information: Product Code Description No CPU/No Memory/No Hard Disk/4*RS232/2*（RS232/485）/2 Gigabit Ethernet ports/6*USB2.0(Support 4*USB3.0)/HDMI/VGA/Audio card/AC220V IPC-615W（eBOX-3642） input/4PCI/1PCIe 4X/1PCIe1X/Parallel port/1.8m power line/Two-year warranty Optional Equipment: Packing List: CPU Support Intel Pentium/ Celeron/ 2nd and 3rd Generation Core i3/5/7 CPU, LGA1155 - 1 x Power line Memory Support DDR3 1600/1333/1066 MHz, 1 * SO-DIMM Slot, Up to 16 GB Memory Size Hard disk Support 2.5"/3.5",MSATA - Warranty Card CD-ROM Desktop Computer CD-ROM - Manufacturer Certificate Keyboard/Mouse Optional Industrial Computer www.nodka.com 200 3128,
