「eBOX-3000」はCPUにIntel CoreTM SkyLake i3/i5/i7/Celeron を採用した産業用ファンレス・コンピュータです。
■ カタログ記載内容
・仕様一覧
・サイズ・図面
・インターフェース
・製品ラインナップ
・オプション
このカタログについて
| ドキュメント名 | eBOX-3000 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 761.1Kb |
| 登録カテゴリ | |
| 取り扱い企業 | 株式会社連基 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容
Page1

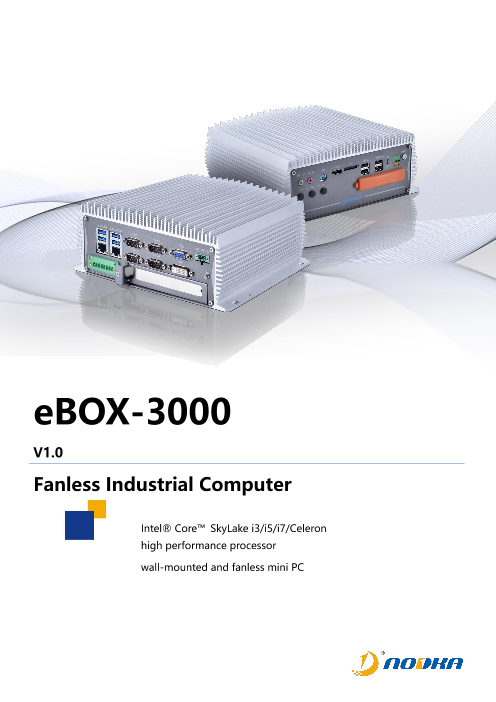

eBOX-3000
V1.0
Fanless Industrial Computer
Intel® Core™ SkyLake i3/i5/i7/Celeron
high performance processor
wall-mounted and fanless mini PC
Page2
eBOX-3000
Specifications：
CPU Intel® Core™ 6th / 7th generation i7 / i5 / i3 / Pentium / Celeron, LGA1151
Processor Chipset Intel H110 Express Chipset
BIOS AMI EFI 16Mbit
Architecture DDR4-2400MHz
Memory Capacity Up to 16GB
DIMM 2 x 284-pin SODIMM
VGA Up to 1920 x 1200
DVI Support 1920 x 1200
Display
HDMI 1920x1200
Display VGA + DVI+HDMI
LAN1 Intel i210 Gbe LAN controller
LAN
LAN2 Intel i210 Gbe LAN controller
Port Realtek ACL662 Audio controller, Line-out, Mic-in.
Audio
Amplifier N/A
COM 4 x RS-232 (COM1~COM2 Optional RS-485 by Jumper)
I/O LPT N/A
USB 4 x USB3.0/2.0/1.1, 4x USB2.0/1.1
Digital IO N/A
Other
WatchDog 0~255 seconds programmable
MiniPCIe 2 * full size PCIe with SIM holder
Texpansion slot
PCIe & PCI 1 x PCIe x16 slot or 1 x 32bits PCI
HDD 1 x 2.5" HDD Bay (Max rate SATA III 6.0 Gb/s)
Storage Medium
SSD 1 * MSATA
Microsoft Windows Windows 7, Windows 7 Embedded, Windows 10
OS
Linux Ubuntu
Type AT
Input voltage 12-24VDC ±10%
Power
Minimum Input 12V/10A，120W
Power Adapter Optional
Power No-load 27Watt
Dissipation Full-load 55Watt（According to the CPU set, total power not exceeding 100W）
Box structure Aluminum alloy BOX
Mechanism Mounting Support Desktop and Wall-mounted mounting
Parameters Dimensions (L*W*H) 240mm x 240mm x 95mm (9.45" x 9.45" x 3.74")
NW -
-20 ~ 60°C (-4℉~140℉) (Wide temperature SSD),
Work Temperature
0 ~ 45°C (32℉~113℉) (General temperature HDD/SSD)
Storage Temperature -40 ~ 80℃ (-40 ~ 176℉)
Relative humidity 5~95% (Non condensation)
Environmental
Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC CE/FCC Class A
Safety Certification CCC
Fanless Industrial Computer www.nodka.com
Page3
eBOX-3000
Dimensions：
I/O：
Ordering Information：
Product Code Description
No CPU/No memory/No hard disk/4*RS232(2*RS232/485Optional)/ 2 Gigabit Ethernet
EBOX-3000 ports/8*USB2.0（4 of them support USB3.0）/DVI/VGA//HDMI/PS2/Audio card/DC12~24V input
/Two-year warranty
No CPU/No memory/No hard disk/4*RS232(2*RS232/485Optional)/ 2 Gigabit Ethernet
Ebox-3000-E ports/8*USB2.0（4 of them support USB3.0）/DVI/VGA//HDMI/PS2/ Audio card /extend PCIe x16
/DC12~24V input / Two-year warranty
No CPU/No memory/No hard disk/4*RS232(2*RS232/485Optional)/ 2 Gigabit Ethernet
EBOX-3000-P ports/8*USB2.0（4 of them support USB3.0）/DVI/VGA//HDMI/PS2/ Audio card /extend
PCI/DC12~24V input/ Two-year warranty
Optional Equipment：
M-10006-0028A Adapter CAD120121 2 pin Phoenix terminal
M-11015-0010A Chinese standard Power Line PSB-10+ST3
Memory Support DDR4 2400, 2 x 204-pin，SO-DIMM Slot, Up to 16 GB Memory Size
Hard disk Support 2.5‘’，MSATA hard disk
Intel® Core™ 6th / 7th generation i7 / i5 / i3 / Pentium / Celeron, LGA1151
Inter®Celeron™ Series：G3930/G3930
CPU
Inter®Pentium™ Series：G440/G4560/G4600
Inter®Core™ Series：I3-6100/7100,I5-6500T/6500/7500/7500T，I7-6700/6700T/7700/7700T
Fanless Industrial Computer www.nodka.com
