「eBOX-3310」はCPUにIntel Atom Apollo Lake を採用した産業用ミニ・コンピュータです。
■ カタログ記載内容
・仕様一覧
・サイズ・図面
・インターフェース
・製品ラインナップ
・オプション
このカタログについて
ドキュメント名 | eBOX-3560 |
---|---|
ドキュメント種別 | 製品カタログ |
ファイルサイズ | 2.3Mb |
登録カテゴリ | |
取り扱い企業 | 株式会社連基 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容
Page1

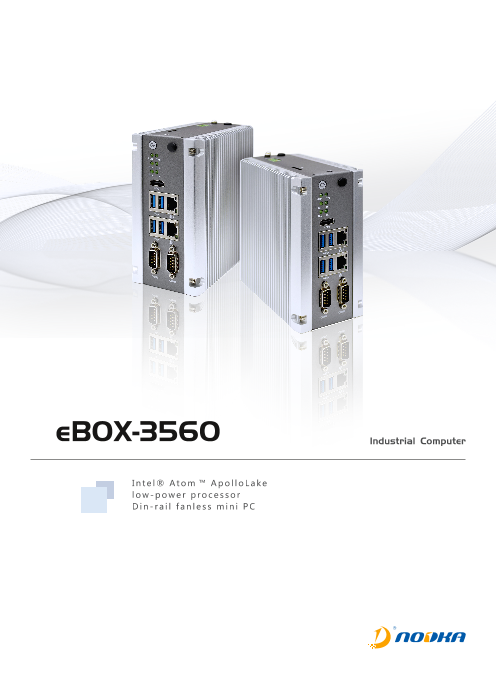

eBOX-3560 Industrial Computer
I n t e l ® A t o m ™ A p o l l o L a ke
l o w - p o w e r p ro c e s s o r
D i n - r a i l f a n l e s s m i n i P C
Page2
eBOX-3560
Specifications:
CPU Intel® Apollo Lake Series J3355
Frequency Dual core 2.3GHz
Processor L2 Cache 2MB
Chipset -
BIOS AMI EFI 16Mbit
Architecture DDR3L-1666MHz
Memory Capacity Up to 8GB
DIMM 1 x 204-pin SODIMM
Display controller Integrated graphics media accelerator
Display
HDMI Max resolution up to 4096×2160@30Hz
LAN1 Intel i210 Gbe LAN controller
LAN LAN2 Intel i210 Gbe LAN controller
Extended LAN 4 x 1000Mbps RJ-45
COM 2 x RS-232(RS-232/485 Optional)
I/O LPT N/A
USB 4 x USB3.0/2.0/1.1
Digital IO N/A
Other
WatchDog 0~255 seconds programmable
MiniPCIe 2* full size PCIe with SIM holder
Texpansion slot
PCIe & PCI N/A
Storage Medium SSD 1 * full size mSATA SSD
Microsoft Windows Windows 10
OS
Linux Ubuntu
Type AT
Input voltage 9-30V DC ±10%
Power
Minimum Input 12V, 3A
Power Adapter Optional
No-load 15 Watt
Power Dissipation
Full-load 31 Watt
Box structure Aluminum alloy BOX
Mounting Din-rail
Mechanism Parameters
Dimensions (L*W*H) 145mm x 145mm x 75mm (5.71" x 5.71" x 2.95")
NW -
-20 ~ 60° C (-4 ℉ ~140 ℉ ) (Wide temperature SSD)
Work Temperature
0 ~ 45° C (32 ℉ ~113 ℉ ) (General temperature HDD/SSD)
Storage Temperature -40 ~ 80℃ (-40 ~ 176 ℉ )
Relative humidity 5~95% (Non condensation)
Environmental
Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC CE/FCC Class A
Safety Certification CCC
Industrial Computer
www.nodka.com
Page3
eBOX-3560
Dimensions:
Unit:mm
178.00
145.00
162.00
I/O:
Specifications:
A:Power Switch L:SIM
B:POWER&HDD LED M:DC in 9~30V
C:COM1 LED N:Standby WiFi
D:COM2 LED
E:HDMI
F:USB2.0/USB3.0
G:COM2
H:COM1
I:WiFi
J:LAN1
K:LAN2
Ordering Information:
Product Code Description
eBOX-3560 Intel® Celeron® J3355 2.5 GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/2 Gigabit Ethernet ports/4USB2.0/HDMI/DC9~30V input/Mounting: Din-rail
eBOX-3560-4L Intel® Celeron® J3355 2.5 GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/4 Gigabit Ethernet ports(extend 2)/4USB2.0/HDMI/DC9~30V input/Mounting: Din-rail
eBOX-3560-6L Intel® Celeron® J3355 2.5 GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/6 Gigabit Ethernet ports(extend 4)/4USB2.0/HDMI/DC9~30V input/Mounting: Din-rail
Optional Equipment:
Adapter Adapter 12V/3.33A,40W 2pin Phoenix terminal
- Chinese standard Power Line PSB-10+ST3
Memory Support DDR3 1600/1333/1066 MHz, 1 * SO-DIMM Slot, Up to 16 GB Memory Size
Hard Disk MSATA
- 1x DIN-rail fastener
- Manufacturer Certificate
- Warranty Card
- Random listing
Industrial Computer
www.nodka.com
147.00
19.50 18.00 18.00 19.50
145.00
63.00
75.00
