eBOX-3310

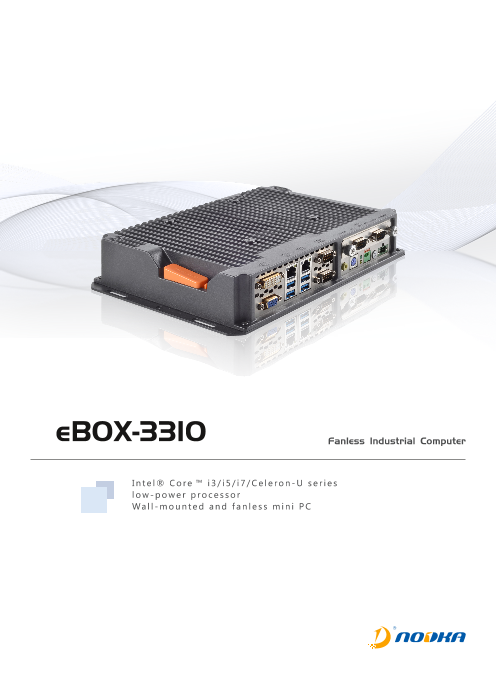

eBOX-3310 Fanless Industrial Computer I n t e l ® C o re ™ i 3 / i 5 / i 7 / C e l e ro n - U s e r i e s l o w - p o w e r p ro c e s s o r Wa l l - m o u n t e d a n d f a n l e s s m i n i P C

eBOX-3310 Specifications： CPU Intel® Core™i5 6200U/3855U Intel® Core™ i7 5500U/i5 5300U Base Frequency Dual Core 2.3GHz / 1.6 GHz / Dual Core 2.4GHz / Dual Core 2.3GHz Processor L2 Cache 3MB / 2MB / 4MB / 3M Chipset Integrated PCH-LP BIOS AMI EFI 16Mbit Architecture DDR3L-1600MHz Memory Capacity Up to 16GB DIMM 1 x 204-pin SODIMM Display controller Intel HD Graphics 520 / Intel Graphics 510 (Celeron) Graphics engine - VGA 1920 x 1200 @ 60Hz or 2048 x 1152 @ 60Hz with reduced blanking Display DVI-D 1920 x 1200 @ 60Hz or 2048 x 1152 @ 60Hz with reduced blanking HDMI N/A Dual display Yes, VGA + DVI/Yes, VGA + HDMI LAN1 Intel i210 Gbe LAN controller LAN LAN2 Intel i210 Gbe LAN controller Audio Port Realtek ACL662 Audio controller, Line-out COM 2 x RS-232/485 (Max to 6 from EasyBUS) I/O USB 4 * USB3.0/2.0/1.1 Digital IO 16 x GPIO Other WatchDog 0~255 seconds programmable MiniPCIe 1 * full size PCIe with SIM holder Texpansion slot PCIe & PCI N/A EasyBUS Include 4 x 3-wire RS-232 (TTL), 16 x GPIO, I2C, SMbus HDD 1 x 2.5" HDD Bay (Max rate 600MB/s) Storage Medium SSD 1 * full size mSATA SSD Microsoft Windows Windows 7, Windows 7 Embedded, Windows8, Windows10 OS Linux Ubuntu, Fedora, CentOS Realtime OS VxWorks, QNX Type AT/ATX Input voltage 12-24VDC ±10% Power Minimum Input 12V, 3A Power Adapter AC to DC, DC12V/5A, 60W (Optional) No-load i7 6600U: 6.46W, i5 6300U: 5.26W, i3 6100U: 5.02W, Celeron 3955U: 4.88W Power Dissipation Full-load i7 6600U: 22.03W, i5 6300U: 20.87W, i3 6100U: 20.45W, Celeron 3955U: 17.81W Box structure Aluminum-magnesium alloy BOX Mounting Support Desktop,Wall-mounted and VESA mounting Mechanism Parameters Dimensions (L*W*H) 297mm x 184mm x 50mm (11.69" x 7.24" x 1.97") NW - -20 ~ 60° C (-4 ℉ ~140 ℉ ) (Wide temperature SSD) Work Temperature 0 ~ 45° C (32 ℉ ~113 ℉ ) (General temperature HDD/SSD) Storage Temperature -40 ~ 80℃ (-40 ~ 176 ℉ ) Relative humidity 5~95% (Non condensation) Environmental Shake SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis Shock SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration EMC CE/FCC Class A Safety Certification CCC Fanless Industrial Computer www.nodka.com

eBOX-3310 Dimensions: Unit：mm I/O: Interface Definition: A:DVI-D H:COM2 B:LAN1 I:Line out C:LAN2 J:PS/2 D:COM1 K:HDD LED E:Power LED L:SW F:VGA M:Power Switch G:USB O:DC IN(12V/24V) Ordering Information: Packing List Description eBOX-3310-SL1503 6th Generation Intel® Celeron™ 3855U 1.6GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet ports/4*USB2.0&3.0/DVI-D/VGA/DC12V-24V input eBOX-3310-SL6200U 6th Generation Intel® Core™ i5-6200U 2.8GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet ports/4*USB2.0&3.0/DVI-D/VGA/DC12V-24V input eBOX-3310-BW5500U 5th Generation Intel® Core™ i7-5500U 3.0GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet ports/4*USB2.0&3.0/DVI-D/VGA/DC12V-24V input eBOX-3310-BW5300U 5th Generation Intel® Core™ i5-5300U 2.9GHz dual-core Processors/No Memory/No Hard Disk/2*RS-232/485(Optional)/2 Gigabit Ethernet ports/4*USB2.0&3.0/DVI-D/VGA/DC12V-24V input Optional Equipment: - Adapter KPL-060F,with 2 Pin terminal(Taiwan Jinlian) - Chinese standard Power Line PSB-10+ST3 Memory Support DDR3 1600/1333/1066 MHz, 1 * SO-DIMM Slot, Up to 16 GB Memory Size Hard Disk Support 2.5"，MSATA - Manufacturer Certificate - Warranty Card - Random listing Fanless Industrial Computer www.nodka.com
