U1000 Ultrasonic Flow Meter - Non-Contact Measurement

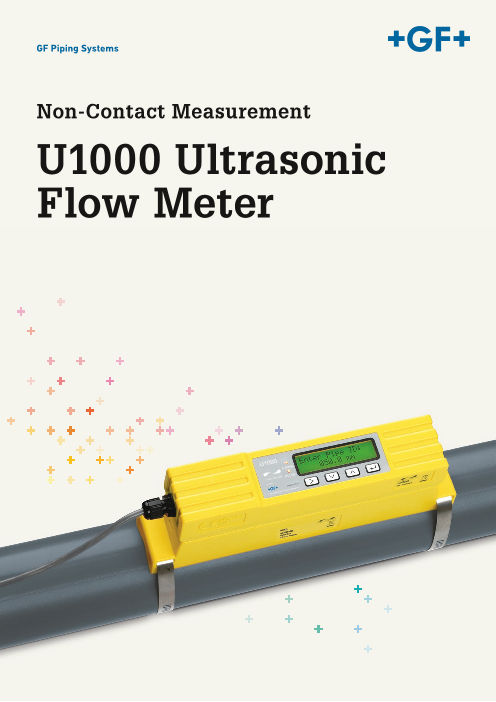

GF Piping Systems Non-Contact Measurement U1000 Ultrasonic Flow Meter

Features Easy, Uncomplicated, Absolutely Reliable Developed ideally for the plastic piping systems from GF Piping Systems. Thanks to the clamp-on installa- tion, the fl ow sensor is installed in just minutes. The sensor can be easily adapted to the pipe dimension. The continuous measurement is based on the time-of-fl ight principle. The two integrated sensors send and receive ultrasonic signals, measuring the speed of propagation of the ultrasonic waves. The sensor then calculates the volume internally. Compact, powerful, reliable! Large display • Clear and fast reading of parameters, several values at a glance One sensor for pipe dimensions d25-d115 • Easy programming in a few steps • Lower inventory and logistics costs • Fast system expansion Compact design • Also fi ts easily on small, compact systems No contact with medium • Non-contact measurement: Clamp-on design The sensor does not come into • Very fast assembly in only fi ve minutes contact with the medium • Saves a lot of time on sensor installation • Long product lifetime, low • Convenient installation on outside of maintenance costs pipe Silicon wafer/chip production: Production process with ultrapure water, controlled and monitored by technology from GF Piping Systems.

Technical data Specifi cations Values Measurement principle Ultrasound, time of fl ight Flow velocity range 0.1 - 10 m/s Accuracy 3% of measured value Reaction time <500 ms Pipe diameter [d] 25 - 115 mm PVC, ABS, PVDF, PP, PE, Pipe material PB-Instafl ex Working temperature 0-50 °C Mains voltage 12-24 V DC Output 4-20 mA, pulse Cooling systems operated with pure water Code Type Description 159 300 085 U1000-1 U1000, for plastic pipes d25-115 mm Installation in fi ve minutes • Loosen the safety screws • Apply the contact gel • Tighten the safety screws • Position the sensor elements • Attach the sensor unit with the clamps • Remove safety screws • The two halves are joined by simply • Enter the pipe dimension and the • Electrically connect the electronic unit snapping them together; no tools material – confi rm and done required • The sensor is ready for operation
