GF Piping Systems Signet 9900 Transmitter NEW! Rear Enclosure Kit

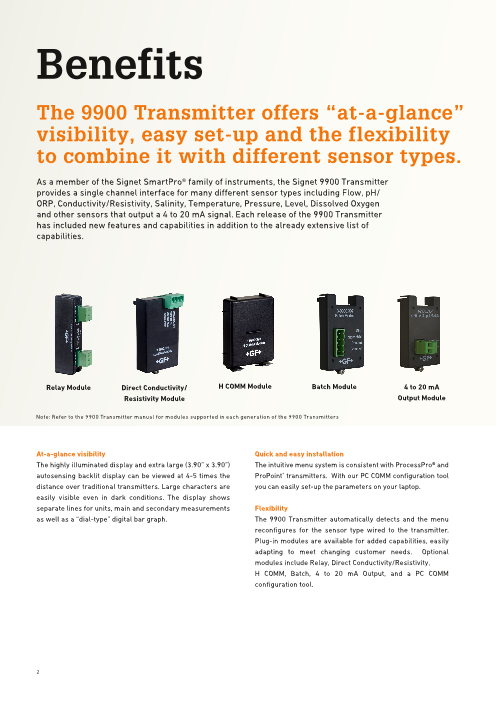

Benefits The 9900 Transmitter offers “at-a-glance” visibility, easy set-up and the flexibility to combine it with different sensor types. As a member of the Signet SmartPro® family of instruments, the Signet 9900 Transmitter provides a single channel interface for many different sensor types including Flow, pH/ ORP, Conductivity/Resistivity, Salinity, Temperature, Pressure, Level, Dissolved Oxygen and other sensors that output a 4 to 20 mA signal. Each release of the 9900 Transmitter has included new features and capabilities in addition to the already extensive list of capabilities. Relay Module Direct Conductivity/ H COMM Module Batch Module 4 to 20 mA Resistivity Module Output Module Note: Refer to the 9900 Transmitter manual for modules supported in each generation of the 9900 Transmitters At-a-glance visibility Quick and easy installation The highly illuminated display and extra large (3.90” x 3.90”) The intuitive menu system is consistent with ProcessPro® and autosensing backlit display can be viewed at 4-5 times the ProPoint® transmitters. With our PC COMM configuration tool distance over traditional transmitters. Large characters are you can easily set-up the parameters on your laptop. easily visible even in dark conditions. The display shows separate lines for units, main and secondary measurements Flexibility as well as a “dial-type” digital bar graph. The 9900 Transmitter automatically detects and the menu reconfigures for the sensor type wired to the transmitter. Plug-in modules are available for added capabilities, easily adapting to meet changing customer needs. Optional modules include Relay, Direct Conductivity/Resistivity, H COMM, Batch, 4 to 20 mA Output, and a PC COMM configuration tool. 2

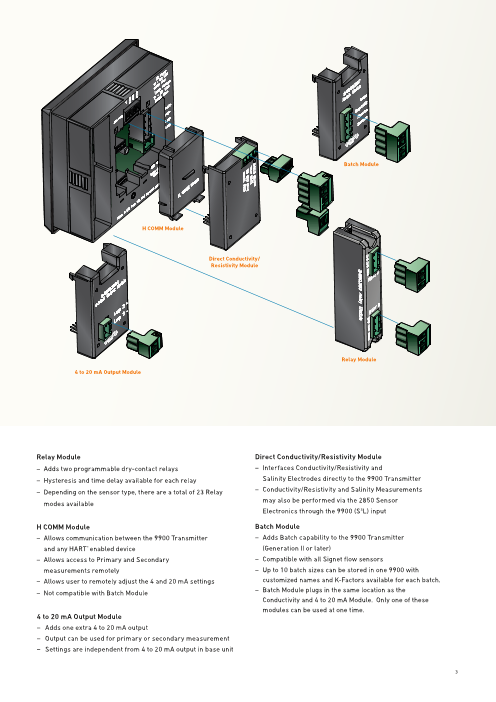

Batch Module H COMM Module Direct Conductivity/ Resistivity Module Relay Module 4 to 20 mA Output Module Relay Module Direct Conductivity/Resistivity Module – Adds two programmable dry-contact relays – Interfaces Conductivity/Resistivity and – Hysteresis and time delay available for each relay Salinity Electrodes directly to the 9900 Transmitter – Depending on the sensor type, there are a total of 23 Relay – Conductivity/Resistivity and Salinity Measurements modes available may also be performed via the 2850 Sensor Electronics through the 9900 (S3L) input H COMM Module Batch Module – Allows communication between the 9900 Transmitter – Adds Batch capability to the 9900 Transmitter and any HART® enabled device (Generation II or later) – Allows access to Primary and Secondary – Compatible with all Signet flow sensors measurements remotely – Up to 10 batch sizes can be stored in one 9900 with – Allows user to remotely adjust the 4 and 20 mA settings customized names and K-Factors available for each batch. – Not compatible with Batch Module – Batch Module plugs in the same location as the Conductivity and 4 to 20 mA Module. Only one of these modules can be used at one time. 4 to 20 mA Output Module – Adds one extra 4 to 20 mA output – Output can be used for primary or secondary measurement – Settings are independent from 4 to 20 mA output in base unit 3

Flexible solutions Additional accessory options are available to help you with field installations. Thanks to the flexibility of the rear enclosure kits, you can install a 9900-1P on a wall, tank or pipe for indoor or outdoor use. Rear Enclosure Kit Hinged or Flat Cover The rear enclosure kit allows the 9900 Transmitter to be mounted just about anywhere. The rear enclosure kit is available in two versions. The hinged cover version is suitable for wall or pipe mount installations, and allows for easy access to the back of the 9900 Transmitter for wiring and module installation. The flat cover kit is designed to fit inside a panel for waterproof protection. Angle Adjustable Adapter Kit 9900 Integral (Field) Mount Transmitter Integral (Field) mounting requires a separate mounting kit. The 3-8050 Universal Mount Kit, the 3-8051 or 8052 Integral Mount Kits, and the Angle Adjustment Adapter Kit enable the transmitter to be installed directly on the sensor. Angle Adjustment Adapter Kit The angle adjustment adapter kit quickly and easily adjusts your 9900 Integral (Field) Mount Transmitter viewing angle by 25° angle. One or more angle adapters can be installed together, which can also provide extra room for the wiring. 4

Benefits of field mount kits What makes the 9900 rear enclosure so flexible, is that you can convert the panel version of the 9900 Transmitter into a field mountable transmitter. The design feature make it suitable for installations onto walls, pipes, struts or inside panels. • Compatible with all existing 9900-1P Transmitters • NEMA TYPE 4X/IP66 rated for indoor or outdoor installations • Spacious for any 9900 Transmitter accessory module • Drill holes on any side for flexible wiring orientation. 5

Applications The 9900 Transmitter in a tank filling application. The 9900 versatile parameter and modularity capabilities make the unit well suited for a variety of applications including wastewater treatment, reverse osmosis, deionization, chemical manufacturing, metal and plastic finishing, fume scrubbers, cooling towers and media filtration. 9900 Transmitter 9900-1BC Batch Controller 6

Applications No matter which processes and applications - GF Piping Systems supports its customers in every phase of the project. From start to finish, we stand beside our customers as a competent, reliable and experienced partner, actively contributing the know-how of an industrial company that has been successful in the market for over 200 years. With our application knowledge and product expertise we support our customers during the planning process, the sustainable realization of the projects and the provision of services. Industrial & Municipal Water Treatment alkalinity of chemicals, salts, and chlorine concentrations Water treatment, whether it is for municipal or industrial are all important in delivering processed water to the applications, typically serves to improve the quality of the quality standards demanded by each unique application. water to ensure public safety or to reduce negative impacts on process equipment and/or the environment. The 9900 Transmitter, part of the SmartPro family, is ideal for use Chemical Process Industry in measurement and control of various water treatment The 9900 and applicable sensors can be used for applications. Industrial Water Treatment applications measurement and control in the transport and dilution include media filtration, deionization, desalination, cooling of various chemicals. Managing chemical tank levels and tower control, reverse osmosis, and fume scrubbers, dosing of chemicals can all be monitored and controlled while chlorine dioxide and ozone control are common in using the 9900 Transmitter. Municipal Water Treatment applications. Monitoring the quantity and quality of various parameters such as acidity/ 7
