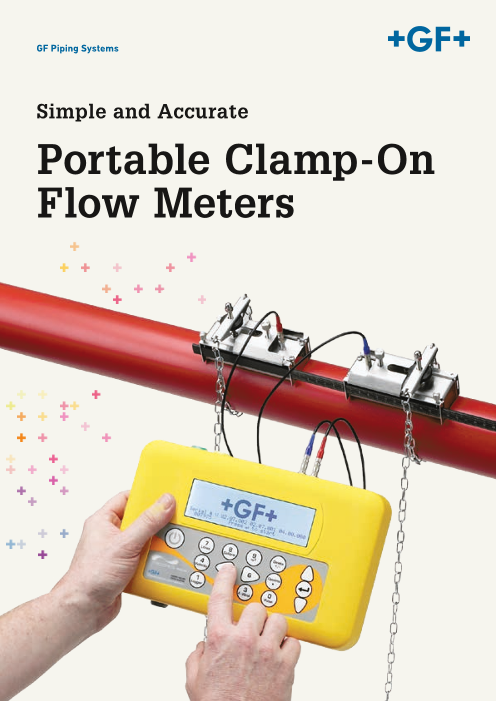

Portable Clamp-On Flow Meters - Simple and Accurate

GF Piping Systems Simple and Accurate Portable Clamp-On Flow Meters

Portaflow PF330/PF220 Easy Set-Up, Installation, Perfectly Tailored and Pre-Set for GF Piping Systems The Portaflow range brings simplicity to the non-invasive measurement of liquid flow. Portaflow offers the user quick and accurate flow measurement with its easy to follow menu and simple set up. Results can be achieved within minutes of opening the case. Compact, rugged and reliable, the Portaflow range has been designed to provide sustained performance in industrial environments. Hardware & Operation Industries The Portaflow electronics are housed in a specifically • Water designed enclosure, which incorporates the graphic display, • Building Services keypad, sensor and output facility connections. Program- • Energy ming the unit is carried out by selecting the options displayed • Chemical Industry in the main menu and by following the simple instructions in • Utilities any of the user selectable languages. The use of rechargea- • Semiconductors ble batteries allows the unit to be operated for a period in excess of 20 hours depending on the facilities used. Continu- Recommended for: ous operation via the PSU is also possible while recharging • Potable water the battery pack. Battery status, signal strength, time and • River water date, as well as flow information are all continuously • Cooling water displayed, keeping the user fully aware of the measurement • Demineralised water process. • Water/glycol solutions • Chemicals Flow Transducers Application / Use The Portaflow range is able to work with different transduc- • HVAC and energy system audits er sets depending on the unit purchased and the application. • Pump verification Sensor mounting clamps are provided with each instrument, • Leak detection to ensure correct mounting and reliable operation on any • Filter sizing size pipe, in either diagonal or reflex mode. • Ultrapure water measurement • Condensate measurement • Balancing systems Data Logger (PF330 only) • Fire system testing The built in data logger in the PF330 allows site details and • Calibration of measurement systems flow data to be recorded with a memory, that is able to log 98,000 separate readings. Data can be stored in 5 second to 1 hour intervals. The data for each site is stored in the memory until it has been cleared. The stored data can be displayed on the instrument in text or graph format. The instrument is also capable of downloading the stored data via the USB or RS232 output port and the Portagraph Software supplied with the unit.

System data A Non-Invasive Way of Measuring PF330 and PF220 Product Features Working principle Flow Range: 0.1m/sec to 20m/sec bi-directional It takes just a few minutes to install and there is no need to Battery or mains operation, battery running time: up to 20h shut down flow or drain the system. When ultrasound is Power: 110 – 240VAC +/-10% supply via PSU transmitted between the transducers, the speed at which the Languages: DE, EN, FR, RU, SWE, IT, SP, P, NO, DEN sound travels through the liquid is accelerated slightly by the velocity of the liquid through the pipe. When ultrasound is Accuracy for flow rate >0.2m/s: transmitted in the opposite direction, the flow of the liquid • Pipes DN75: ±0.5% to ±2% of flow reading causes the transmitted sound to decelerate. The subsequent • Pipes DN13-75: ±3% of flow reading time difference is directly proportional to the flow velocity in the pipe. Having measured the flow velocity and knowing the pipe cross-sectional area, the volumetric flow can be easily 264 mm 320 mm calculated. • Pipes DN75: ±0.5% to ±2% of flow reading 68 mm • Pipes DN13-75: ±3% of flow reading 168 mm 75 mm 46.5 mm 50 mm 110 mm Principle of Operation PF330 Specification A Transducers: d13 – d115 pipes B Transducers: d50 – d2000 pipes Transducer Operating Temp: A & B -20°C to +135°C Outputs: Opto Isolated 0/4 –20mA; RS 232/USB; Programmable pulse: 2ms – 500ms Data Logging: 98.000 data points up to 20 named recording blocks. Data displayed locally in text or graph format. Real time or stored. Can be downloaded directly to a USB memory stick to transfer log data to a PC. PF330 and PF 330 with case PF220 Specification PF220A with A Transducers: d13 – d115 pipes or PF220B with B Transducers: d50 – d1000 pipes Transducer Operating Temp: A & B -20°C to +135°C Outputs: Opto Isolated, 0/4 –20mA, Programmable Pulse, 2ms-500ms PF330 / PF220 Selectable pipe materials: PVDF-SYGEF, PP-PROGEF, PE-ELGEF, PB-INSTAFLEX, ABS, PVC-U/PVC-C, Copper Mild Steel, Ductile Iron, Stainless Steel PF220 and PF220 with case 316
