GF Piping Systems Marine Product Range 2016

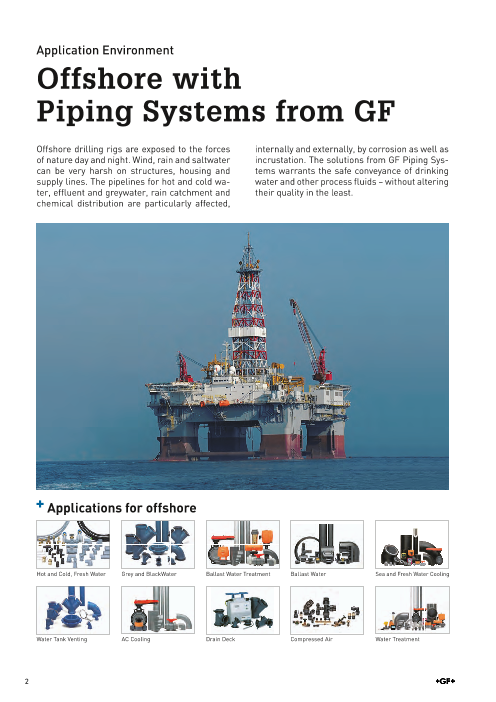

Application Environment Offshore with Piping Systems from GF Offshore drilling rigs are exposed to the forces internally and externally, by corrosion as well as of nature day and night. Wind, rain and saltwater incrustation. The solutions from GF Piping Sys- can be very harsh on structures, housing and tems warrants the safe conveyance of drinking supply lines. The pipelines for hot and cold wa- water and other process fluids – without altering ter, effluent and greywater, rain catchment and their quality in the least. chemical distribution are particularly affected, Applications for offshore Hot and Cold, Fresh Water Grey and BlackWater Ballast Water Treatment Ballast Water Sea and Fresh Water Cooling Water Tank Venting AC Cooling Drain Deck Compressed Air Water Treatment 2

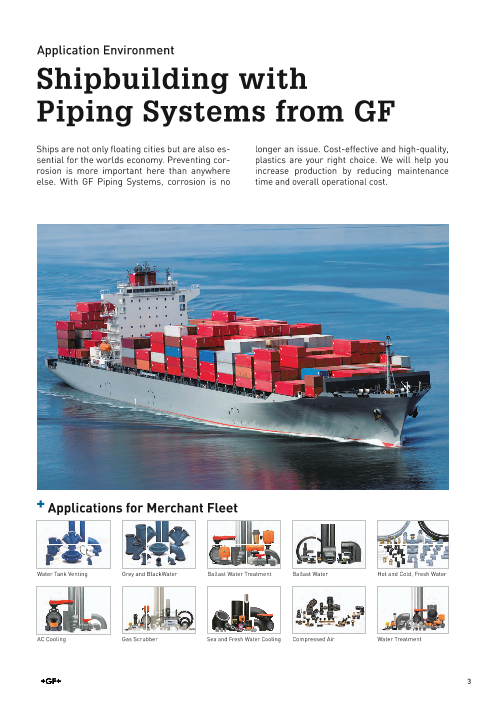

Application Environment Shipbuilding with Piping Systems from GF Ships are not only floating cities but are also es- longer an issue. Cost-effective and high-quality, sential for the worlds economy. Preventing cor- plastics are your right choice. We will help you rosion is more important here than anywhere increase production by reducing maintenance else. With GF Piping Systems, corrosion is no time and overall operational cost. Applications for Merchant Fleet Water Tank Venting Grey and BlackWater Ballast Water Treatment Ballast Water Hot and Cold, Fresh Water AC Cooling Gas Scrubber Sea and Fresh Water Cooling Compressed Air Water Treatment 3

Marine Applications GF Piping Systems for Marine Applications GF Piping Systems used in marine applications Material Application Hot Water Cold Water Compressed Air Black Water Grey Water Water Treatment Desalination Reverse Osmosis Air Conditioning Lines Refrierated Water Below 0°C Sea and Freshwater Cooling Ballast Water Treatment AWP Systems Ventilation Lines Heating Condensation and/or Recirculation Lines Deck Drain 4 SeaCorTM Sea DrainTM Plus UPVC CPVC COOL-FIT ABS eco FIT PROGEF PP-H AQUASYSTEMTM PP-R INSTAFLEXTM PB iFITTM PB/ML SeaDrainTM PPFR SANIPEX MT

Benefits Your benefits at a glance • Low pressure drop Cooling systems. For indirect cooling goes below 0 °C, • Light weight plastics which can withstand these temperatures are re- • Long service life quired. This is where ABS and ecoFIT show their strengths • Economical upkeep because they can be used down to –50 °C. They are robust • Fast installation and have excellent impact strength. • Less noise emission Air venting. Ventilation of water tanks can be cost effec- • Global availability tively using plastic pipes , avoiding potential corrosion and • Environmental friendly weight problems associated with present traditional metal solutions. Hot and cold drinking water. To supply your state rooms or Applications - materials - the kitchen with water, we recommend our INSTAFLEX systems (PB) in combination with iFIT, AQUASYSTEM (PP-R) and SANIPEX MT. All systems are resistant to hot water and Water treatment. A water treatment system for drinking chlorine desinfection. Thanks to its flexibility, the material water is always necessary on board a ship. As well as water PB (INSTAFLEX) is also very easy to install, it can be obta- conditioning for swimming pool water. The best solutions ined pre-fabricated in lengths of 40 m rolled together. for these applications are our ABS and PP-H systems. Technical Water. Cooling (non-essential) and technical wa- These have the advantage of being very lightweight and ter. For cooling seawater or fresh water, our ecoFIT, ABS flexible. Due to the weight advantage, they are also very and INSTAFLEX systems are ideal. They are robust and very suitable for use on yachts. suitable for use at low temperatures. Ballast water treatment. Plastics are compact, light Grey and black water. Our ABS, PVC-C and PVC-U solvent weight and allow speedy installation: ideal for use in water cement systems and our fusion-jointed systems, ecoFIT treatment skids. GF offers a complete range of valves in and FUSEAL Sea Drain, are all ideal for industrial and dirty compatible materials, both actuated and manual to round water. These plastics can be used at very low tempera- off a complete system solution. tures. Like all our plastic systems, they do not cor rode and therefore provide a much longer service life. A dditionally, they exhibit high mechanical strength, which is very im- Approvals. GF Piping Systems has a whole range of ap- portant on ships. provals from all the major classification societies. Ballast systems, transport and bunker lines. Larger di- mensioned systems are necessary for bilge, drainage and Classification Society ballast systems. ecoFIT is ideal for such applications. It is Material System GL LR BV RINA ABS DNV CCS RMRS NK USCG ABS • • • • • • • • on offer in the dimension range 20–630 mm, including a PVC-C • • • • • • • • • large selection of fittings. Among the multiple benefits are PVC-U • • • • • • • • • light weight and good abrasion resistance. It can be instal- ecoFIT • • • • • • • • • led with electrofusion jointing, which is very simple and sa- PP-H • • • • • INSTAFLEX • • • • • • • • • ves time. AQUASYSTEM • • • • • • iFIT • • • • • • • • Sanipex MT • • • • • Sea Drain • • • • • • SeaCor • • Sea Drain Plus • • 5

Marine Ships and platform are also essential for the worlds econ- Where can I use plastics? omy. Water is their element. Preventing corrosion is more important here than anywhere else. With plastic piping Non-essential systems and in cofferdams, open decks and systems from GF Piping Systems, corrosion is no longer an tanks according to IMO A.753 (18) in combination with clas- issue. sification society approvals plastics can be used for all non- essential systems throughout the vessel. Low flame spread test data, in accordance to ASTM 635, as well as smoke and Plastic can do more toxicity data according to FTP codes, are all available for the complete range of GF plastics. GF has years of experi- Corrosion-free piping systems. This guarantees the long ence and numerous high class references – ask GF in com- service life of your systems. You save dry-dock time. You bination with the relevant class if you have any questions save service costs. You save maintenance costs. All in all, regarding application and location when using plastic pip- you are in business quicker. That is your benefit. You also ing systems in classed vessels. save on weight. Plastic piping systems weigh approx. 5 x less than metal – a savings of several tonnes per ship. This in turn allows for more freight, more passengers and Weight comparison. Plastic to Metal therefore more profitBesides, installation is much faster. (per 100 metres of piping) Plastic offers the possibility of prefabrication, which radi- cally reduces installation time on board. Plastic enables Diameter kg d25 d50 d110 d160 installations with a small amount of tools in a small amount Plastic 16 53 248 550 of space. Technical specialists are not always required. An- other significant benefit. Carbon steel 119 233 737 1093 Stainless steel 79 197 505 1542 Copper 59 292 737 - Savings plastic to steel 103 239 489 992 6

Table of contents INSTAFLEX 8 iFIT 59 ecoFIT 85 PROGEF Standard metric 161 Tools 185 COOL-FIT ABS / COOL-FIT Lite 233 PVC-U metric 256 PVC-C metric 289 AQUASYSTEM 306 JRG Sanipex MT 328 UNI-Coupling 363 Ball valves / Butterfly valves / Check valves 395 Accessories 451 SeaDrain™ 476 Index 509 7

8

INSTAFLEX Table of contents Page Pipes and Accessories 10 Fittings for Electrofusion Jointing 12 Fittings for Socket Fusion Jointing 23 Fittings for Butt Fusion and electrofusion 30 Outlet Joints and Accessories 33 Fittings for Compression Joints 35 Manifolds and Accessories 39 Valves 42 Spare Parts 47 Machines and Tools 49 9

Pipes and Accessories PB pipe (coiled) Packed in cardboard boxes Packed in protective wrap  * on request d Length s Code SP Weight [mm] [m] [mm] [kg ⁄ m] 16 60 2.2 760 853 389 1 0.100 16 102 2.2 760 853 395 1 0.100 16 400 2.2 760 856 624 1 0.100 20 60 2.8 760 853 390 1 0.150 20 102 2.8 760 853 397 1 0.150 20 400 2.8 760 853 398 1 0.150 25 30 2.3 760 854 946 1 0.165 Pipe PB 3 m (bars)  Packed in cardboard boxes d s Code SP Weight [mm] [mm] [kg] 25 2.3 760 854 964 48 0.165 32 2.9 760 854 965 27 0.270 40 3.7 760 854 966 27 0.416 50 4.6 760 854 967 15 0.645 63 5.8 760 854 968 12 1.020 75 6.8 760 856 620 3 1.440 90 8.2 760 856 621 3 2.060 110 10.0 760 856 622 3 3.050 PB pipe 5,8 m - bars  Packed in cardboard boxes / PN 16 d s Code SP Weight [mm] [mm] [kg] 16 2.2 760 856 606 52 0.097 20 2.8 760 856 607 52 0.151 25 2.3 760 856 608 58 0.165 32 2.9 760 856 609 23 0.270 40 3.7 760 856 610 17 0.416 50 4.6 760 856 611 17 0.645 63 5.8 760 856 612 6 1.020 75 6.8 760 856 613 6 1.440 90 8.2 760 856 614 6 2.060 110 10.0 760 856 615 6 3.050 10

PB pipe 5.8 m - bars  Packed in PE-Bag / PN 16 d s Code SP Weight Length [mm] [mm] [kg] [m] 125 11.4 761 065 290 6 3.950 5.8 160 14.6 761 065 291 6 6.460 5.8 225 20.5 761 065 292 6 12.700 5.8 Clip pipe support tray d Code SP Weight L [mm] [kg] [mm] 16 760 856 602 30 0.550 3000 20 760 856 603 30 0.680 3000 25 760 856 604 30 0.844 3000 32 760 856 605 30 1.073 3000 Pipe support tray F  or diameter over d90 no pipe support is required d Code SP Weight L [mm] [kg] [mm] 40 760 854 928 30 1.335 3000 50 760 854 929 30 1.662 3000 63 760 854 930 30 0.570 3000 75 760 854 985 30 2.480 3000 Pipe binder d-d Code SP Weight L [mm] [kg] [mm] 16 ‐ 40 760 853 283 100 0.001 200 50 ‐ 75 760 853 284 100 0.001 300 90 ‐ 110 760 854 984 100 0.003 430 Pipe clamp d Code SP Weight M [mm] [kg] [mm] 16 761 066 296 50 0.039 8 20 761 066 297 50 0.045 8 25 761 066 298 50 0.053 8 32 761 066 299 50 0.046 8 40 761 066 300 50 0.071 8 50 761 066 301 50 0.087 8 63 761 066 302 10 0.134 8 75 761 066 303 10 0.135 8 90 761 066 304 10 0.156 10 110 761 066 305 25 0.228 10 11

Fittings for Electrofusion Jointing Fittings for electrofusion jointing Electrofusion coupler  Suitable as sliding coupling d Code SP Weight L [mm] [kg] [mm] 16 761 069 200 1 0.023 76 20 761 069 201 1 0.027 80 25 761 069 202 1 0.041 85 32 761 069 203 1 0.053 85 40 761 069 204 1 0.084 95 50 761 069 205 1 0.121 99 63 761 069 206 1 0.184 102 75 761 069 265 1 0.317 134 90 761 069 266 1 0.519 147 110 761 069 267 1 0.766 160 Bracket clamp *  on request d Code SP Weight [mm] [kg] * 16 761 069 490 10 0.016 * 20 761 069 491 10 0.018 * 25 761 069 492 10 0.023 * 32 761 069 493 6 0.030 * 40 761 069 494 6 0.050 * 50 761 069 495 6 0.073 * 63 761 069 496 6 0.102 * 75 761 069 497 6 0.166 * 90 761 069 498 4 0.244 * 110 761 069 499 4 0.380 Electrofusion adaptor T  ransition to socket fusion - HMS d Code SP Weight L h [mm] [kg] [mm] [mm] 16 761 069 207 1 0.026 60 23 20 761 069 208 1 0.017 61 22 25 761 069 209 1 0.026 67 25 32 761 069 210 1 0.037 71 29 40 761 069 211 1 0.060 79 32 50 761 069 212 1 0.095 85 36 63 761 069 213 1 0.151 94 43 12

Electro fusion elbow 90° d Code SP Weight L z [mm] [kg] [mm] [mm] 16 761 069 214 1 0.023 47 10 20 761 069 215 1 0.027 54 14 25 761 069 216 1 0.039 58 16 32 761 069 217 1 0.079 60 18 40 761 069 218 1 0.128 69 22 50 761 069 219 1 0.206 78 29 63 761 069 220 1 0.328 86 36 75 761 069 221 1 0.515 112 45 90 761 069 222 1 0.811 127 54 110 761 069 223 1 1.330 146 66 Elbow 90° socket-spigot d Code SP Weight L l h z [mm] [kg] [mm] [mm] [mm] [mm] 16 761 069 434 1 0.025 47 40 53 10 20 761 069 435 1 0.035 54 40 58 14 25 761 069 436 1 0.047 58 42 62 16 32 761 069 437 1 0.071 60 42 66 18 40 761 069 438 1 0.113 69 47 77 22 50 761 069 439 1 0.181 78 49 85 29 63 761 069 440 1 0.290 86 51 96 36 Elbow 45° socket-spigot d Code SP Weight L l h z [mm] [kg] [mm] [mm] [mm] [mm] 16 761 069 447 1 0.014 44 38 50 6 20 761 069 448 1 0.030 46 40 54 7 25 761 069 449 1 0.042 50 42 57 8 32 761 069 450 1 0.059 51 42 60 9 40 761 069 451 1 0.098 58 47 67 11 50 761 069 452 1 0.156 63 49 75 14 63 761 069 453 1 0.242 68 51 79 17 13

Electrofusion elbow 45° d Code SP Weight L z [mm] [kg] [mm] [mm] 16 761 069 227 1 0.033 44 6 20 761 069 228 1 0.027 46 7 25 761 069 229 1 0.039 50 8 32 761 069 230 1 0.059 51 9 40 761 069 231 1 0.070 58 11 50 761 069 232 1 0.147 63 14 63 761 069 233 1 0.275 68 17 75 761 069 234 1 0.451 88 21 90 761 069 235 1 0.700 98 25 110 761 069 236 1 1.098 111 31 Electrofusion T-piece 90°- equal d Code SP Weight L z [mm] [kg] [mm] [mm] 16 761 069 237 1 0.053 47 10 20 761 069 238 1 0.067 54 14 25 761 069 239 1 0.089 58 16 32 761 069 240 1 0.116 60 18 40 761 069 241 1 0.185 69 22 50 761 069 242 1 0.290 78 29 63 761 069 243 1 0.452 86 36 75 761 069 244 1 0.747 112 45 90 761 069 245 1 0.890 127 54 110 761 069 246 1 1.884 146 66 Electrofusion T-piece 90°- reducer d1 d2 d3 Code SP Weight L1 L2 L3 z1 z2 z3 [mm] [mm] [mm] [kg] [mm] [mm] [mm] [mm] [mm] [mm] 20 16 16 761 069 249 1 0.058 54 47 47 14 10 10 20 16 20 761 069 250 1 0.041 54 49 54 14 11 14 25 16 25 761 069 251 1 0.082 58 54 58 16 16 16 25 20 20 761 069 256 1 0.079 58 54 54 16 14 14 25 20 25 761 069 252 1 0.079 58 54 58 16 14 16 25 25 20 761 069 257 1 0.081 58 58 54 16 16 14 32 20 32 761 069 253 1 0.088 60 58 60 18 18 18 32 25 25 761 069 258 1 0.098 60 58 58 18 16 16 32 25 32 761 069 254 1 0.095 60 58 60 18 16 18 40 20 40 761 069 259 1 0.157 69 63 69 22 23 22 40 25 40 761 069 255 1 0.115 69 63 69 22 21 22 40 32 40 761 069 260 1 0.168 69 63 69 22 21 22 50 25 50 761 069 261 1 0.246 78 72 78 29 30 29 50 32 50 761 069 262 1 0.360 78 72 78 29 30 29 63 25 63 761 069 263 1 0.360 86 81 86 36 39 36 63 40 63 761 069 264 1 0.384 86 85 86 36 38 36 14

Electrofusion adaptor T-piece 90° TRF - male thread d R Code SP Weight L h z [mm] [inch] [kg] [mm] [mm] [mm] 25 3∕4 761 069 430 1 0.173 58 78 15 32 1 761 069 431 1 0.254 60 86 17 Electrofusion - end cap d Code SP Weight L [mm] [kg] [mm] 16 761 069 270 1 0.022 67 20 761 069 271 1 0.025 70 25 761 069 272 1 0.036 77 32 761 069 273 1 0.054 83 40 761 069 274 1 0.095 95 50 761 069 275 1 0.153 104 63 761 069 276 1 0.265 116 Electrofusion - reducer d1 d2 Code SP Weight l h z [mm] [mm] [kg] [mm] [mm] [mm] 20 16 761 069 277 1 0.023 40 83 45 25 16 761 069 278 1 0.026 42 83 46 25 20 761 069 279 1 0.026 42 86 47 32 16 761 069 457 1 0.033 42 86 48 32 20 761 069 280 1 0.030 42 84 45 32 25 761 069 281 1 0.038 42 89 47 40 20 761 069 458 1 0.055 47 102 62 40 25 761 069 459 1 0.060 47 104 62 40 32 761 069 282 1 0.060 47 95 53 50 20 761 069 460 1 0.070 49 102 62 50 25 761 069 461 1 0.075 49 104 62 50 32 761 069 462 1 0.075 49 95 53 50 40 761 069 283 1 0.091 49 103 56 63 20 761 069 463 1 0.096 51 102 62 63 25 761 069 464 1 0.109 51 104 62 63 32 761 069 284 1 0.101 51 95 53 63 40 761 069 465 1 0.121 51 103 56 63 50 761 069 285 1 0.141 51 106 57 75 63 761 069 286 1 0.232 67 129 78 90 63 761 069 287 1 0.289 74 128 77 90 75 761 069 288 1 0.354 74 143 76 110 63 761 069 289 1 0.414 80 135 84 110 75 761 069 290 1 0.464 80 150 83 110 90 761 069 291 1 0.576 80 165 92 15

Special reducer with adaptor  * on request d1 d2 Code SP Weight l l1 z [mm] [mm] [kg] [mm] [mm] [mm] * 75 16 761 069 604 1 0.212 134 88 97 * 75 20 761 069 605 1 0.216 134 88 95 * 75 25 761 069 606 1 0.221 137 88 95 * 75 32 761 069 607 1 0.237 139 88 97 * 75 40 761 069 608 1 0.254 145 88 98 * 75 50 761 069 609 1 0.270 148 88 99 * 90 16 761 069 610 1 0.254 133 87 96 * 90 20 761 069 611 1 0.265 133 87 94 * 90 25 761 069 612 1 0.267 136 87 94 * 90 32 761 069 613 1 0.277 138 87 96 * 90 40 761 069 614 1 0.297 144 87 97 * 90 50 761 069 615 1 0.322 147 87 98 * 110 16 761 069 518 1 0.405 140 94 103 * 110 20 761 069 519 1 0.405 140 94 101 * 110 25 761 069 520 1 0.414 143 94 101 * 110 32 761 069 521 1 0.433 145 94 103 * 110 40 761 069 522 1 0.461 151 94 104 * 110 50 761 069 523 1 0.469 154 94 105 Special reducer with transition on elbow  * Additional diameter on request d1 d2 Code SP Weight l l1 z y [mm] [mm] [kg] [mm] [mm] [mm] [mm] * 75 20 761 069 619 1 0.228 109 88 14 54 * 75 25 761 069 524 1 0.235 111 88 16 58 * 75 32 761 069 525 1 0.249 115 88 18 60 * 75 40 761 069 526 1 0.300 121 88 22 96 * 75 50 761 069 527 1 0.326 127 88 29 78 * 90 20 761 069 620 1 0.273 108 87 14 54 90 25 761 069 528 1 0.283 110 87 16 58 * 90 32 761 069 529 1 0.300 114 87 18 60 * 90 40 761 069 530 1 0.350 120 87 22 69 * 90 50 761 069 531 1 0.415 126 87 29 78 * 110 20 761 069 621 1 0.423 115 94 14 54 * 110 25 761 069 532 1 0.435 117 94 16 58 * 110 32 761 069 533 1 0.453 121 94 18 60 * 110 40 761 069 534 1 0.500 127 94 22 69 * 110 50 761 069 535 1 0.565 183 94 29 78 16

Special reducer TRF - female thread  * on request d-d Rp Code SP Weight l l1 z [mm] [inch] [kg] [mm] [mm] [mm] * 75 ‐ 20 1∕2 761 069 577 1 0.281 144 88 129 * 75 ‐ 25 3∕4 761 069 578 1 0.326 145 88 125 * 75 ‐ 32 1 761 069 596 1 0.383 149 88 124 * 90 ‐ 20 1∕2 761 069 579 1 0.344 143 87 128 * 90 ‐ 25 3∕4 761 069 580 1 0.396 144 87 124 * 90 ‐ 32 1 761 069 597 1 0.445 148 87 123 * 110 ‐ 20 1∕2 761 069 581 1 0.484 152 94 137 * 110 ‐ 25 3∕4 761 069 582 1 0.529 156 94 136 * 110 ‐ 32 1 761 069 598 1 0.585 158 94 133 Special reducer - male thread  * on request d-d R Code SP Weight l l1 z [mm] [inch] [kg] [mm] [mm] [mm] * 75 ‐ 20 1∕2 761 069 583 1 0.278 146 88 131 * 75 ‐ 25 3∕4 761 069 584 1 0.316 150 88 130 * 75 ‐ 32 1 761 069 593 1 0.363 152 88 127 * 90 ‐ 20 1∕2 761 069 585 1 0.328 145 87 130 * 90 ‐ 25 3∕4 761 069 586 1 0.354 149 87 129 * 90 ‐ 32 1 761 069 594 1 0.416 151 87 126 * 110 ‐ 20 1∕2 761 069 587 1 0.480 150 94 135 * 110 ‐ 25 3∕4 761 069 588 1 0.513 151 94 131 * 110 ‐ 32 1 761 069 595 1 0.585 155 94 130 17

Special reducer - predrilled Drilled hole d16 to d50  * on request d1 d2 Code SP Weight l [mm] [mm] [kg] [mm] * 75 16 761 069 500 1 0.193 88 * 75 20 761 069 501 1 0.214 88 * 75 25 761 069 502 1 0.200 88 * 75 32 761 069 503 1 0.182 88 * 75 40 761 069 504 1 0.175 88 * 75 50 761 069 505 1 0.161 88 * 90 16 761 069 506 1 0.254 87 * 90 20 761 069 507 1 0.242 87 * 90 25 761 069 508 1 0.240 87 * 90 32 761 069 509 1 0.236 87 * 90 40 761 069 510 1 0.226 87 * 90 50 761 069 511 1 0.213 87 * 110 16 761 069 512 1 0.400 94 * 110 20 761 069 513 1 0.387 94 * 110 25 761 069 514 1 0.373 94 * 110 32 761 069 515 1 0.376 94 * 110 40 761 069 516 1 0.372 94 * 110 50 761 069 517 1 0.357 94   18

Unions Adaptor union Spigot for electrofusion and socket fusion - male thread I ncluding EPDM O-Ring, quality suitable for potable water d R Code SP Weight D H G h h1 l [mm] [inch] [kg] [mm] [mm] [inch] [mm] [mm] [mm] 16 1∕2 761 069 400 1 0.221 41 106 1 68 38 45 20 1∕2 761 069 401 1 0.232 46 110 1 1∕4 70 40 47 25 3∕4 761 069 402 1 0.340 52 117 1 1∕2 76 41 50 32 1 761 069 403 1 0.489 64 123 2 78 45 50 40 1 1∕4 761 069 404 1 0.673 79 136 2 1∕2 88 48 56 50 1 1∕2 761 069 405 1 0.783 85 141 2 3∕4 93 48 58 63 2 761 069 406 1 1.100 104 152 3 1∕2 98 54 60 Adaptor union Spigot for electrofusion and socket fusion - female thread I ncluding EPDM O-Ring, quality suitable for potable water d Rp Code SP Weight D L G l h z [mm] [inch] [kg] [mm] [mm] [inch] [mm] [mm] [mm] 16 1∕2 761 069 407 1 0.171 41 90 1 45 68 9 20 1∕2 761 069 408 1 0.225 46 94 1 1∕4 47 70 10 25 3∕4 761 069 409 1 0.274 52 100 1 1∕2 50 76 9 32 1 761 069 410 1 0.391 64 103 2 50 78 8 40 1 1∕4 761 069 411 1 0.620 79 114 2 1∕2 56 88 7 50 1 1∕2 761 069 412 1 0.678 85 119 2 3∕4 58 93 7 63 2 761 069 413 1 1.036 104 126 3 1∕2 60 98 5 Electrofusion adaptor union I ncluding EPDM O-Ring, quality suitable for potable water d R Code SP Weight D L G h z [mm] [inch] [kg] [mm] [mm] [inch] [mm] [mm] 16 1∕2 761 069 475 1 0.236 41 106 1 38 31 20 1∕2 761 069 476 1 0.248 50 109 1 1∕4 40 30 25 3∕4 761 069 477 1 0.331 56 116 1 1∕2 41 33 32 1 761 069 478 1 0.476 69 124 2 45 37 40 1 1∕4 761 069 479 1 0.728 83 137 2 1∕2 48 42 50 1 1∕2 761 069 480 1 0.842 90 143 2 3∕4 48 46 63 2 761 069 481 1 1.196 110 158 3 1∕2 54 53 Electrofusion adaptor union  Including EPDM O-Ring, quality suitable for potable water d Rp Code SP Weight D L G z1 z2 [mm] [inch] [kg] [mm] [mm] [inch] [mm] [mm] 16 1∕2 761 069 482 1 0.185 41 90 1 31 9 20 1∕2 761 069 483 1 0.250 50 93 1 1∕4 30 10 25 3∕4 761 069 484 1 0.298 56 99 1 1∕2 33 9 32 1 761 069 485 1 0.425 69 104 2 37 8 40 1 1∕4 761 069 486 1 0.686 83 115 2 1∕2 42 7 50 1 1∕2 761 069 487 1 0.738 90 121 2 3∕4 46 7 63 2 761 069 488 1 1.133 110 132 3 1∕2 53 5   19

Flange connections Flange adaptor flat with groove and spigots for electrofusion Suitable for flange or union nut Including EPDM O-Ring, quality suitable for potable water *  on request d Code SP Weight D D1 l h [mm] [kg] [mm] [mm] [mm] [mm] * 16 761 069 306 5 0.011 22 29 45 68 * 20 761 069 307 1 0.018 27 34 47 70 * 25 761 069 308 1 0.023 33 41 50 76 * 32 761 069 309 1 0.039 41 50 50 78 * 40 761 069 310 1 0.061 50 61 56 88 * 50 761 069 311 1 0.096 61 73 58 93 * 63 761 069 312 1 0.168 76 90 60 98 * 75 761 069 313 1 0.343 90 106 118 158 * 90 761 069 314 1 0.515 109 125 125 172 * 110 761 069 315 1 0.840 131 150 131 186 Flange adaptor flat with spigot for electrofusion Suitable for flange or union nut  * on request d Code SP Weight D D1 l h [mm] [kg] [mm] [mm] [mm] [mm] * 20 761 069 321 1 0.017 27 34 45 67 * 25 761 069 322 1 0.021 33 41 50 73 * 32 761 069 323 1 0.034 41 50 50 75 * 40 761 069 324 1 0.066 50 61 56 83 * 50 761 069 325 1 0.091 61 73 58 88 63 761 069 326 1 0.172 76 90 60 93 75 761 069 327 1 0.311 90 106 118 153 90 761 069 328 1 0.469 109 125 125 167 110 761 069 329 1 0.770 131 150 131 180   20
