MULTI/JOINT PE adaptor - The solution for transitions from PE

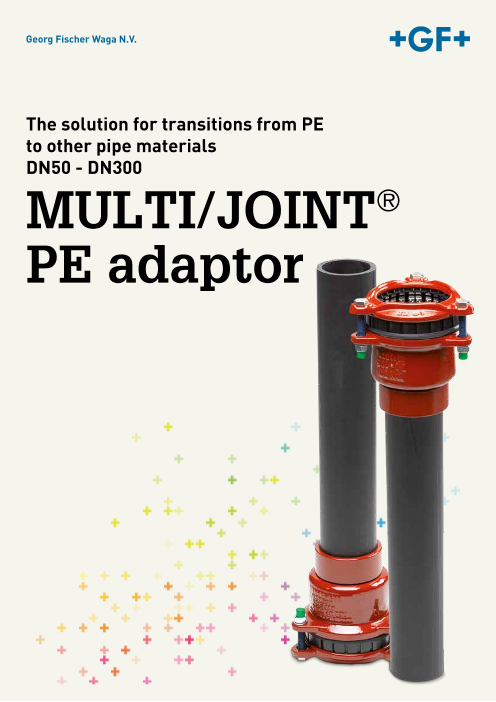

Georg Fischer Waga N.V. The solution for transitions from PE to other pipe materials DN50 - DN300 MULTI/JOINT® PE adaptor

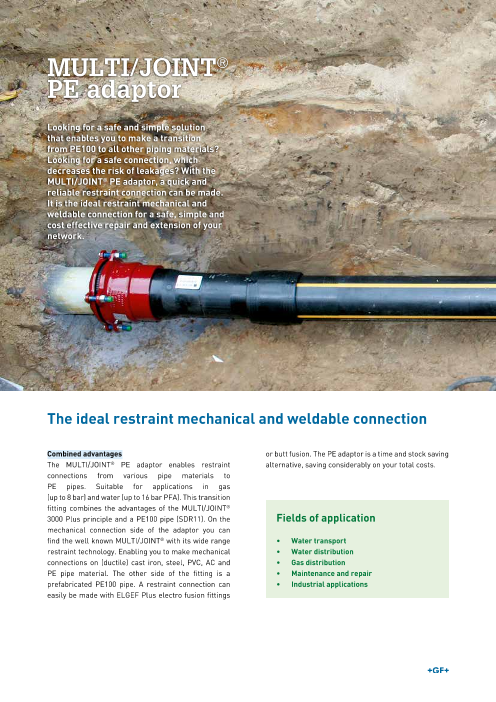

MULTI/JOINT® PE adaptor Looking for a safe and simple solution that enables you to make a transition from PE100 to all other piping materials? Looking for a safe connection, which decreases the risk of leakages? With the MULTI/JOINT® PE adaptor, a quick and reliable restraint connection can be made. It is the ideal restraint mechanical and weldable connection for a safe, simple and cost effective repair and extension of your network. The ideal restraint mechanical and weldable connection Combined advantages or butt fusion. The PE adaptor is a time and stock saving The MULTI/JOINT® PE adaptor enables restraint alternative, saving considerably on your total costs. connections from various pipe materials to PE pipes. Suitable for applications in gas (up to 8 bar) and water (up to 16 bar PFA). This transition fitting combines the advantages of the MULTI/JOINT® 3000 Plus principle and a PE100 pipe (SDR11). On the Fields of application mechanical connection side of the adaptor you can find the well known MULTI/JOINT® with its wide range • Water transport restraint technology. Enabling you to make mechanical • Water distribution connections on (ductile) cast iron, steel, PVC, AC and • Gas distribution PE pipe material. The other side of the fitting is a • Maintenance and repair prefabricated PE100 pipe. A restraint connection can • Industrial applications easily be made with ELGEF Plus electro fusion fittings

Your benefits • Quick, safe and simple installation, saving time and installation costs • Alternative to traditional steel x PE transition fitting • No steel welder required • Suitable for all pipe materials such as steel, AC, (ductile) cast iron, PVC and PE • Less transitions, meaning less risk of leakages • Reusable, saving stock and cost • Maintenance free, design life expectancy of 50 years Universal fitting connecting PE/PVC AC PE (electro fusion or butt fusion) PE PVC PVC (with socket) Steel (Ductile) cast iron

The maintenance free solution

Quick, safe and simple connections Safe and reliable Safety is one of the most important topics in gas and water distribution lines. Installing a reliable connection is therefore essential. For the manufacturing process of the MULTI/JOINT® PE adaptor we use the most reliable connection method, that fully complies with the highest safety requirements. You can easily connect the prefabricated PE100 pipe by electro fusion or butt fusion. With these jointing techniques you build a leak free system, creating peace of mind. Quick, simple and cost efficient The MULTI/JOINT® PE adaptor can easily be installed without the use of extra accessories. The downtime of the network is limited to a minimum and the distribution of gas and water to the end user is continued as soon as possible. A large variety of connection possibilities is possible with the prefabricated polyethylene pipe ranging from d50 up to and including d315. The traditional Steel x PE transition fitting can be replaced with the MULTI/JOINT® PE adaptor, therefore a certified steel welder is no longer required on site.

The system MULTI/JOINT® 3067 Plus DN (mm) range (mm) PE diameter (mm) PE piece length (mm) DN50 46 - 71 50 429,0 DN50 46 - 71 63 464,0 DN65 63 - 90 63 429,0 DN65 63 - 90 75 460,7 DN80 84 - 105 90 457,8 DN100 104 - 132 90 397,0 DN100 104 - 132 110 397,0 DN100 104 - 132 125 445,5 DN125 132 - 155 110 390,0 DN125 132 - 155 125 390,0 DN125 132 - 155 140 443,0 DN150 154 - 192 160 364,0 DN150 154 - 192 180 430,0 DN200 192 - 232 200 333,0 DN200 192 - 232 225 422,0 DN250 267 - 310 250 294,0 DN250 267 - 310 280 408,2 DN300 315 - 356 315 400,3 Quality and maintenance free for use in gas and water networks. The design life The body and clamp ring of the MULTI/JOINT® PE expectancy of the PE adaptor is 50 years, thanks to its adaptor are made of ductile cast iron, which is protected maintenance free nature. Interferences and repairs are from corrosion by Resicoat®, a fusion bonded epoxy kept to a minimum, ensuring a constant supply of gas or powder coating. This makes the PE adaptor resistant water to the end user. to weathering, environmental influences and suitable +Quick, safe and simple solution for connecting PE to other materials

Technical specifications Specifications Body Ductile cast iron GGG45 in accordance with EN-GJS-450-10. Clamp ring Ductile cast iron GGG45 in accordance with EN-GJS-450-10. Coating Resicoat® epoxy powder coating, type RT 9000 R4, meets the requirements of ACS, Belgaqua, KTW, NSF Standard 61, WRAS, KIWA. Colour red (RAL 3003). Minimum layer thickness 250 micron, in accordance with the GSK-register. Varioseal Potable water: EPDM in accordance with EN 681-1. rubber gasket Water and gas: NBR in accordance with EN 682. Uni/Fiks ring Wedge: POM (polyoxymethylene). Topple: glass fibre filled polyamide. Uni/Fiksers Stainless steel A4 (AISI 316). Bolts, nuts and washers Stainless steel A2 (AISI 304) or stainless steel A4 (AISI 316). Bolts are PTFE coated, nuts are galvanised and passivated to prevent galling. Working temperature -5°C to +50°C. Working pressure (PFA)* Non restraint: up to PFA 25 bar water and up to 8 bar gas. Restraint: up to PFA 16 bar water and up to 8 bar gas. * For details see user manual or contact your supplier. Sealing system Nominal angularity* max. ± 8° * based on the middle of the range

Georg Fischer Waga N.V. Contact information P.O. Box 290 8160 AG EPE The Netherlands T +31 578 678378 F +31 578 620848 www.waga.nl waga.ps@georgfischer.com The technical data are not binding and not expressly warranted characteristics of the goods. They are subject to change. Please consult our General Conditions of Supply. WA2067/0914/EN © Georg Fischer Waga N.V. 2014, printed in the Netherlands
