MULTI/JOINT 3000 Plus - The connection for all pipe diameters

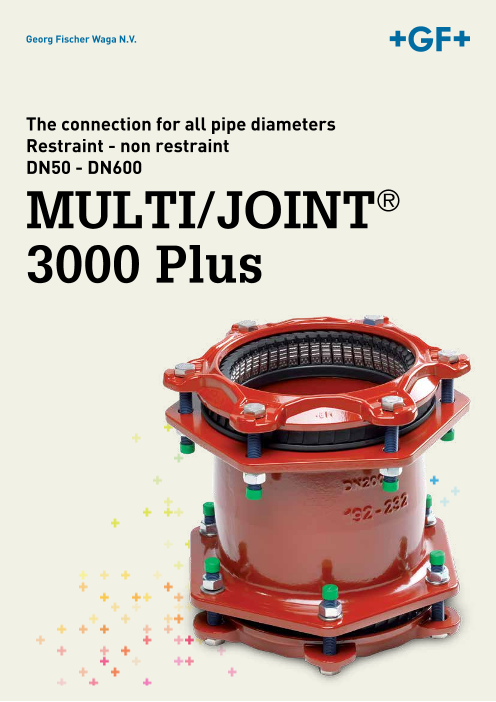

Georg Fischer Waga N.V. The connection for all pipe diameters Restraint - non restraint DN50 - DN600 MULTI/JOINT® 3000 Plus

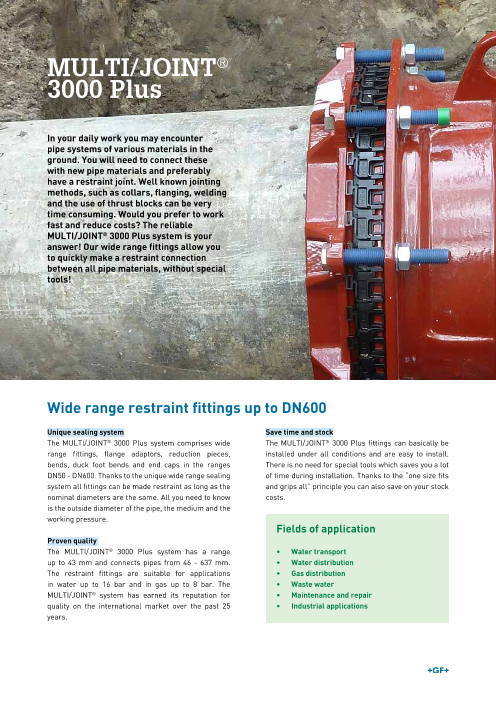

MULTI/JOINT® 3000 Plus In your daily work you may encounter pipe systems of various materials in the ground. You will need to connect these with new pipe materials and preferably have a restraint joint. Well known jointing methods, such as collars, flanging, welding and the use of thrust blocks can be very time consuming. Would you prefer to work fast and reduce costs? The reliable MULTI/JOINT® 3000 Plus system is your answer! Our wide range fittings allow you to quickly make a restraint connection between all pipe materials, without special tools! Wide range restraint fittings up to DN600 Unique sealing system Save time and stock The MULTI/JOINT® 3000 Plus system comprises wide The MULTI/JOINT® 3000 Plus fittings can basically be range fittings, flange adaptors, reduction pieces, installed under all conditions and are easy to install. bends, duck foot bends and end caps in the ranges There is no need for special tools which saves you a lot DN50 - DN600. Thanks to the unique wide range sealing of time during installation. Thanks to the “one size fits system all fittings can be made restraint as long as the and grips all” principle you can also save on your stock nominal diameters are the same. All you need to know costs. is the outside diameter of the pipe, the medium and the working pressure. Fields of application Proven quality The MULTI/JOINT® 3000 Plus system has a range • Water transport up to 43 mm and connects pipes from 46 - 637 mm. • Water distribution The restraint fittings are suitable for applications • Gas distribution in water up to 16 bar and in gas up to 8 bar. The • Waste water MULTI/JOINT® system has earned its reputation for • Maintenance and repair quality on the international market over the past 25 • Industrial applications years.

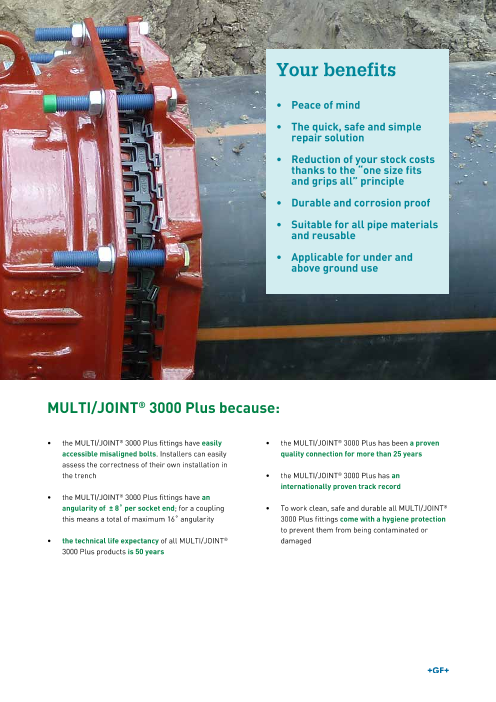

Your benefits • Peace of mind • The quick, safe and simple repair solution • Reduction of your stock costs thanks to the “one size fits and grips all” principle • Durable and corrosion proof • Suitable for all pipe materials and reusable • Applicable for under and above ground use MULTI/JOINT® 3000 Plus because: • the MULTI/JOINT® 3000 Plus fittings have easily • the MULTI/JOINT® 3000 Plus has been a proven accessible misaligned bolts. Installers can easily quality connection for more than 25 years assess the correctness of their own installation in the trench • the MULTI/JOINT® 3000 Plus has an internationally proven track record • the MULTI/JOINT® 3000 Plus fittings have an angularity of ± 8˚ per socket end; for a coupling • To work clean, safe and durable all MULTI/JOINT® this means a total of maximum 16˚ angularity 3000 Plus fittings come with a hygiene protection to prevent them from being contaminated or • the technical life expectancy of all MULTI/JOINT® damaged 3000 Plus products is 50 years

Unique sealing system, a reliable connection When the quality standard is high, you need a reliable connection. The MULTI/JOINT® 3000 Plus system meets the demands and is suitable for applications in water and gas. The uniqueness of the system lies in the sealing which consists of a flexible ring (Uni/Fleks ring or Uni/Fiks ring) which consists of plastic segments and a rubber sealing ring (EPDM or NBR). The Uni/Fiks version is supplied with metal grippers which make the MULTI/JOINT® 3000 Plus restraint on all types of pipe materials. Uni/Fiks ring Varioseal: rubber gasket (EPDM or NBR) Body: ductile cast iron GGG45 EN-GJS-450-10 with Resicoat® epoxy powder coating type RT 9000 R4 Nuts: stainless steel A2 (AISI 304) galvanised and passivated or stainless steel A4 (AISI 316) galvanised and passivated Bolts: stainless steel A2 (AISI 304) PTFE coated or stainless steel A4 (AISI 316) PTFE coated

Easy installation Uni/Fleks ring The Uni/Fleks ring is a combination of a plastic ring, consisting of plastic segments, with a thin rubber sealing (Varioseal). This rubber sealing (available both in EPDM and NBR) is a reliable solution for both water and gas applications. The Uni/Fleks ring is non restraint. Uni/Fiks ring When metal grippers (Uni/Fiksers) are placed in the Uni/Fleks ring, the sealing system is restraint. The Uni/Fiks ring with the Uni/Fiksers makes a restraint connection up to an impressive 16 bar for water and 8 bar for gas, both on rigid and plastic pipes. Clamp ring: ductile cast iron GGG45 EN-GJS-450-10 Progressive sealing and gripping mechanism with Resicoat® epoxy powder coating The plastic segments in the ring sizes DN50 – DN125 type RT 9000 R4 consist of one part, made of POM. Furthermore the design of the ring enables large range coverage in outside diameters. The plastic segments in the ring Uni/Fikser: sizes DN150 – DN600 consist of two parts; the wedge stainless steel A4 (AISI 316) and the topple. The wedge is made of POM and is in contact with the pipe material. The topple, made of polyamide, ensures the integrity of the ring. This Hygiene protection combination results in a progressive sealing and Ensures the fitting stays gripping mechanism. In the ring sizes DN425 – DN600 a clean from production clip has been added to fixate the ring in the body of the to point of use fitting ensuring easy installation with no interference. (cap in the picture: Uni/Fikser DN50 - DN400) The Uni/Fiksers ensure optimal restraint both on rigid pipe materials and on plastic pipes, without compromise. Easy installation and reuse The relatively long body of the MULTI/JOINT® 3000 Plus fittings offers a large insertion depth. This large installation length makes the installation easy, as you can use this length as desired. Moreover, the fittings are supplied with a clear installation manual. Washer: stainless steel A2 (AISI 304) or stainless steel A4 (AISI 316)

One complete system Model Type Coupling restraint 3007 non restraint 3000 Reduced coupling restraint 3107 non restraint 3100 Flange adaptor restraint 3057 non restraint 3050 Reduced flange adaptor restraint 3157 non restraint 3150 End cap blind restraint 3207 blind non restraint 3200 blind End cap ¾" - 2" threaded restraint 3207 ¾" - 2" threaded non restraint 3200 ¾" - 2" threaded PE adaptor restraint 3067 Spigot end restraint 3087 non restraint 3080 Reduced spigot end restraint 3187 non restraint 3180 Duckfoot restraint 3457 non restraint 3450 Reduced duckfoot restraint 3557 non restraint 3550 Bend restraint 3407 non restraint 3400 Since the fittings can easily be de-installed, the system DN (mm) range (mm) is also suitable for temporary installation after which DN50 46 - 71 multiple reuse is possible. DN65 63 - 90 DN80 84 - 105 Long life expectancy DN100 104 - 132 The ductile cast iron MULTI/JOINT® 3000 Plus products DN125 132 - 155 are supplied with a corrosion proof Resicoat® epoxy DN150 154 - 192 powder coating. This combination extends the life DN200 192 - 232 expectancy significantly. DN225 230 - 268 DN250 267 - 310 The fittings are maintenance-free and have a designed DN300 315 - 356 life expectancy of 50 years. This is a clear advantage; DN350 352 - 393 after all, you want to be able to guarantee a constant DN400 392 - 433 supply of water and gas to the end user and prevent DN425 432 - 464 renewed maintenance and repair. DN450 450 - 482 DN475 481 - 513 DN500 500 - 532 DN550 548 - 580 DN600 605 - 637 +Durable and reliable connections for a quick, safe and simple repair solution

Technical specifications Specifications Body Ductile cast iron GGG45 in accordance with EN-GJS-450-10. Clamp ring Ductile cast iron GGG45 in accordance with EN-GJS-450-10. Coating Resicoat® epoxy powder coating, type RT 9000 R4, meets the requirements of for example ACS, Belgaqua, KTW, NSF Standard 61, WRAS, KIWA. Colour red (RAL 3003). Minimum layer thickness 250 micron, in accordance with the GSK-register. Varioseal Potable water: EPDM in accordance with EN 681-1. rubber gasket Water and gas: NBR in accordance with EN 682. Uni/Fiks and POM (polyoxymethylene) and/or glass fiber filled Polyamide. Uni/Fleks ring Uni/Fiksers Stainless steel A4 (AISI 316). Bolts and nuts Stainless steel A2 (AISI 304) or stainless steel A4 (AISI 316). Bolts are PTFE coated, nuts are galvanised and passivated to prevent galling. Washers Stainless steel A2 (AISI 304) or stainless steel A4 (AISI 316). Flanges Drilling pattern PN10 or PN16 in accordance with EN 1092-2 or patterns in accordance with AWWA and Table D. DN450 - DN600 PN10 / PN16 drilled. Working temperature -5°C to +50°C. Working pressure (PFA)* Non restraint: up to PFA 25 bar water and up to 8 bar gas. Restraint: up to PFA 16 bar water and up to 8 bar gas. * For details see user manual or contact your supplier. Certificates ACS, Belgaqua, WRc, ÖVGW, SVGW, DVGW, WRAS, NSF and KIWA. EN 14525: ÖVGW, SVGW and KIWA. Sealing system Suitable for all pipe materials AC PE PVC (Stainless) steel Grey cast iron (Ductile) cast iron Nominal angularity* Insert stiffener max. ± 8° In case of connecting PE or PVC pipes, install an insert stiffener. * based on the middle of the range

Georg Fischer Waga N.V. Contact information P.O. Box 290 8160 AG EPE The Netherlands T +31 578 678378 F +31 578 620848 waga.ps@georgfischer.com www.waga.nl The technical data are not binding and not expressly warranted characteristics of the goods. They are subject to change. Please consult our General Conditions of Supply. WA2077/1116/EN © Georg Fischer Waga N.V. 2016, printed in the Netherlands
