MSA 2.0 and MSA 2.1 Electrofusion Units - Designed to make your job easier

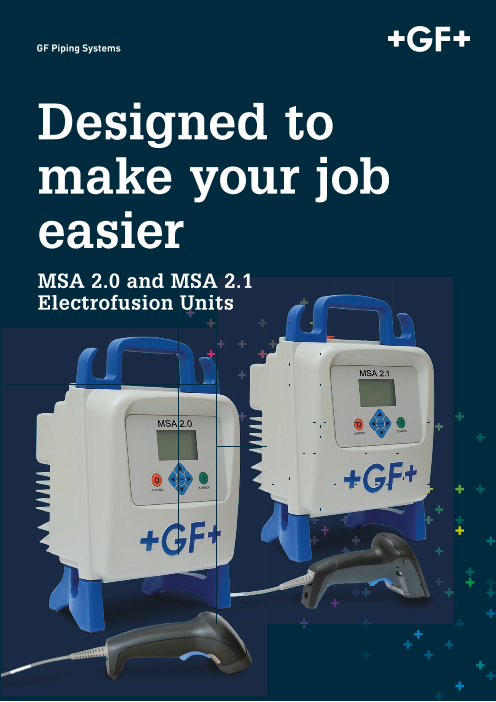

GF Piping Systems Designed to make your job easier MSA 2.0 and MSA 2.1 Electrofusion Units

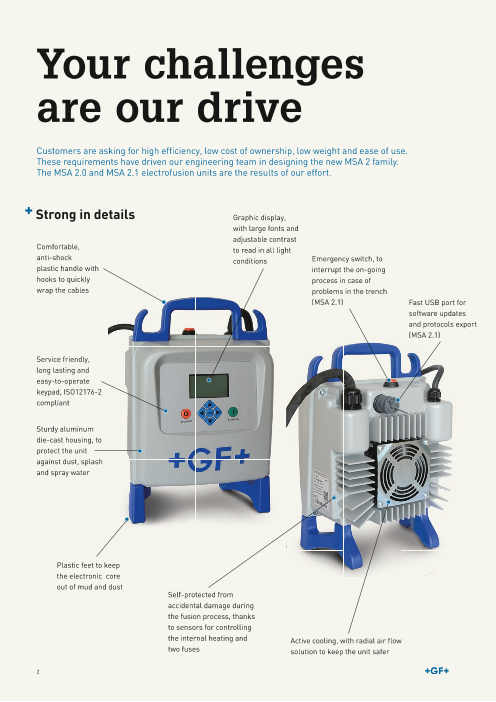

Your challenges are our drive Customers are asking for high efficiency, low cost of ownership, low weight and ease of use. These requirements have driven our engineering team in designing the new MSA 2 family. The MSA 2.0 and MSA 2.1 electrofusion units are the results of our effort. Strong in details Graphic display, with large fonts and adjustable contrast Comfortable, to read in all light anti-shock conditions Emergency switch, to plastic handle with interrupt the on-going hooks to quickly process in case of wrap the cables problems in the trench (MSA 2.1) Fast USB port for software updates and protocols export (MSA 2.1) Service friendly, long lasting and easy-to-operate keypad, ISO12176-2 compliant Sturdy aluminum die-cast housing, to protect the unit against dust, splash and spray water Plastic feet to keep the electronic core out of mud and dust Self-protected from accidental damage during the fusion process, thanks to sensors for controlling the internal heating and Active cooling, with radial air flow two fuses solution to keep the unit safer 2

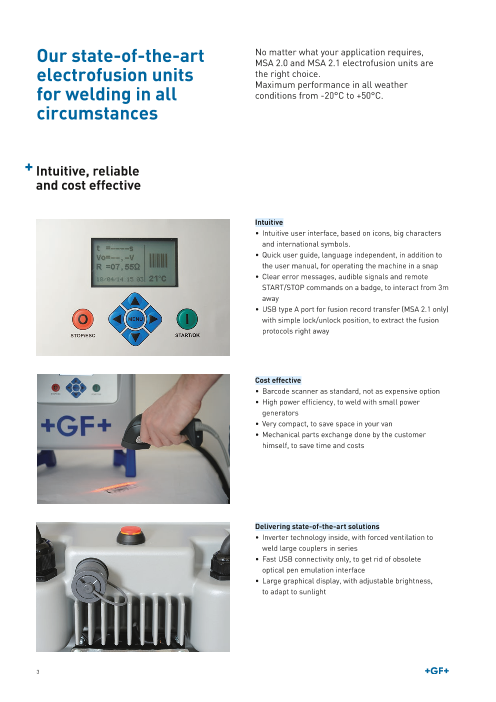

Our state-of-the-art No matter what your application requires, MSA 2.0 and MSA 2.1 electrofusion units are electrofusion units the right choice. Maximum performance in all weather for welding in all conditions from -20°C to +50°C. circumstances Intuitive, reliable and cost effective Intuitive • Intuitive user interface, based on icons, big characters and international symbols. • Quick user guide, language independent, in addition to the user manual, for operating the machine in a snap • Clear error messages, audible signals and remote START/STOP commands on a badge, to interact from 3m away • USB type A port for fusion record transfer (MSA 2.1 only) with simple lock/unlock position, to extract the fusion protocols right away Cost effective • Barcode scanner as standard, not as expensive option • High power efficiency, to weld with small power generators • Very compact, to save space in your van • Mechanical parts exchange done by the customer himself, to save time and costs Delivering state-of-the-art solutions • Inverter technology inside, with forced ventilation to weld large couplers in series • Fast USB connectivity only, to get rid of obsolete optical pen emulation interface • Large graphical display, with adjustable brightness, to adapt to sunlight 3

We protect your investment MSA 2.0 and MSA 2.1 greatly enhance your daily operations. These units encompass numerous features which support safety, speed and reliability. From automatic temperature compensation to a detailed fusion report, the machines work hand in hand with the operator on the construction site. And when training and after-sales service are needed, you can rely on our experts and worldwide service center network. Simply handy The entire fusion process is automatically supervised by the MSA 2.0/MSA 2.1. The installer just has to connect the leads to the fitting, scan the fusion parameters and leave the control to the machine. Depending on the ambient temperature, the welding time is automatically adjusted for the correct distribution of en- ergy to the fitting, a soft start is applied to minimize the load on the power generator, and fusion is carried out to completion. In case of anomalies, like inadequate input current or fit- ting wires fault, the machine stops immediately and in- forms the operator with a specific error message. In case of a damaged barcode label on the fitting, the in- staller can switch right away to manual mode by pressing the START button and then inserting fusion time and voltage. Simple handling The cables are wound on separate sides of the machine and can be quickly wrapped when moving from joint to joint. Two hooks are integrated in the handle for convenient storage of fusion and power cables. The fusion unit is ideally balanced in weight and the design of the handle ensures ergonomic handling and transporta- tion. The professional storage box – suitable for even the roughest conditions – completes the package. The robust design of the long-lasting aluminum housing protects the electronics of the MSA 2.0 and MSA 2.1, providing excellent heat dissipation to weld in series. All annoying sharp edges have been eliminated and thanks to the compact housing, usage in cramped spaces is facilitated. 4

Our electrofusion At construction sites, jointing is done in a professional manner. MSA 2.0 and MSA 2.1 units track your record the fusion data to ensure traceability and long term quality. success Good memory, universal communication Fusion data recording Both machines allow fusion data recording to an internal memory. Fusion data can be browsed by just pressing MENU and the arrow buttons. Data sets are in compliance with ISO 12176-2, using the same symbols of ISO 13950 (Automatic recognition systems for electrofusion joints). Data printout The MSA 2.1 allows data to be easily copied on a standard USB memory stick, without special formatting. Files can be read with any personal computer, Windows or OS X based, for printing out in a simple PDF format, without additional data management software. Compatible with MSA App Suite MSA 2.1 data can be included in a digital archive based on a mini-MSA Welding Book. There the user can prepare extended PDF files, in different languages, including proto- cols belonging to many electrofusion units. Furthermore, fusion data captured by the MSA 2.1 can be combined with photographs taken during the pipe prepara- tion process, using the powerful functionalities of the MSA Welding Book. 5

Technical overview The MSA 2 family gives you the freedom to choose the appropriate type for your daily business – a significant cost advantage for you. MSA 2 Family Overview MSA 2.0 MSA 2.1 Fittings dimension range (Ø mm) 20 – 1200 (*) 20 – 1200 (*) Multiple weldings in sequence   Operating procedures check Automatic ambient temperature compensation   Fusion current monitoring (short/interrupt)   Emergency switch  Fusion data Barcode scanner (ISO 13950 format)   Manual fusion input   Data recording Documentation of fusion   Fusion protocol export  Mini-Welding Book Software optional MSA App Suite optional Operations control Display brightness configurable   Acoustic alert   Serviceability Programmable maintenance interval   Software upload via USB memory stick   Usability Problem recognition (fittings, generators)   Clear messages to the operator in the display   Command via barcode scanner   User guidance   Indication of energy, fusion and cooling time   Data protocol format (bin, pdf) Windows® independent  Separate cable winding support   Transport box   6

Specifications Engineering at its best: High-quality components and materials combined with effective work flow. Technical specifications MSA 2.0 MSA 2.1 Operating conditions Working temperature range min. -20 °C, max. +50 °C min. -20 °C, max. +50 °C Electrical data Input voltage range (Vac) 190 – 265 190 – 265 Frequency range (Hz) 40 – 70 40 – 70 Current consumption (Max, A) 16 A 16 A Output voltage (V ac) 8 – 42 (48) 8 – 42 (48) Output current (max, A) 90 90 Input power (KW) 3.5 3.5 Type of protection IP65 IP65 Protection class I I Unit fuse 20A slow blow 20A slow blow Data and operation control Data recording capacity (Number of protocols) 350 500 Communication port USB Type A USB Type A Buttons 5+Start+Stop 5+Start+Stop Display graphical LCD graphical LCD Mechanical data Dimensions (mm) 280x280x420 280x280x420 Weight (Kg) 11.9 11.9 Case material Aluminium Aluminium Mains cable length 4 m 4 m Fusion cable length 3 m 4 m Mains plug Schuko 16A Schuko 16A Connectors 4 mm 4 mm Adapters (90°) 4.0 – 4.0 mm 4.0 – 4.0 mm/4.0 – 4.7 mm Norms compliance EMC (EN61000)   Safety (EN60335)   ISO12176-2   7
