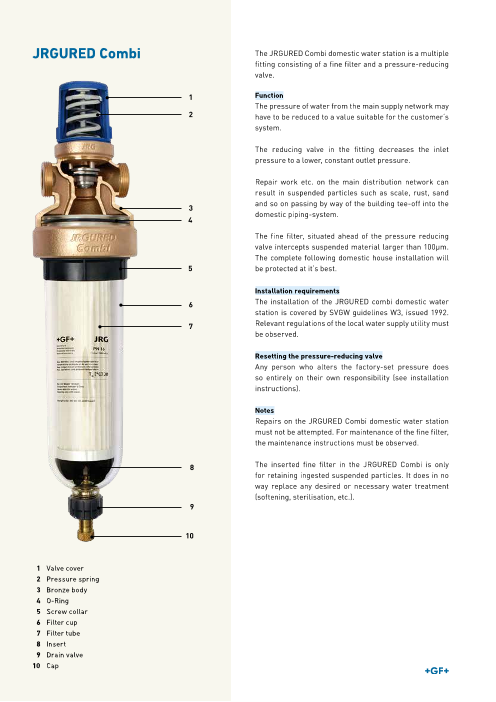

JRGURED Combi The JRGURED Combi domestic water station is a multiple fitting consisting of a fine filter and a pressure-reducing valve. 1 Function The pressure of water from the main supply network may 2 have to be reduced to a value suitable for the customer‘s system. The reducing valve in the fitting decreases the inlet pressure to a lower, constant outlet pressure. Repair work etc. on the main distribution network can result in suspended particles such as scale, rust, sand 3 and so on passing by way of the building tee-off into the domestic piping-system. 4 The fine filter, situated ahead of the pressure reducing valve intercepts suspended material larger than 100µm. The complete following domestic house installation will 5 be protected at it‘s best. Installation requirements 6 The installation of the JRGURED combi domestic water station is covered by SVGW guidelines W3, issued 1992. 7 Relevant regulations of the local water supply utility must be observed. Resetting the pressure-reducing valve Any person who alters the factory-set pressure does so entirely on their own responsibility (see installation instructions). Notes Repairs on the JRGURED Combi domestic water station must not be attempted. For maintenance of the fine filter, the maintenance instructions must be observed. 8 The inserted fine filter in the JRGURED Combi is only for retaining ingested suspended particles. It does in no way replace any desired or necessary water treatment (softening, sterilisation, etc.). 9 10 1 Valve cover 2 Pressure spring 3 Bronze body 4 O-Ring 5 Screw collar 6 Filter cup 7 Filter tube 8 Insert 9 Drain valve 102 C ap

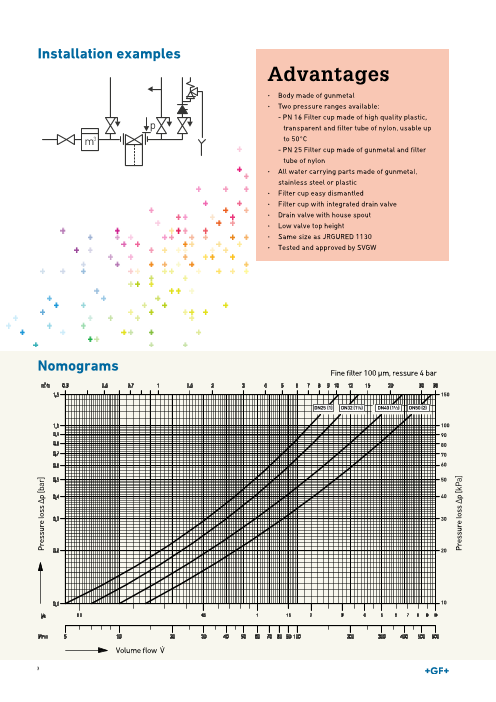

Installation examples Advantages • Body made of gunmetal • Two pressure ranges available: - PN 16 Filter cup made of high quality plastic, transparent and filter tube of nylon, usable up to 50°C - PN 25 Filter cup made of gunmetal and filter tube of nylon • All water carrying parts made of gunmetal, stainless steel or plastic • Filter cup easy dismantled • Filter cup with integrated drain valve • Drain valve with house spout • Low valve top height • Same size as JRGURED 1130 • Tested and approved by SVGW Nomograms Fine filter 100 µm, ressure 4 bar 150 DN25 (1) DN32 (1¼) DN40 (1½) DN50 (2) 100 90 80 70 60 50 40 30 20 10 Volume flow V 3 Pressure loss Δp [bar] Pressure loss Δp [kPa]

JRGURED Combi JRGURED Combi house water station, PN 16 - 4 bar Combined pressure reducing valve with fine filter, PN 16 Connections with male thread BR1 according EN ISO 228-1, without brass screw connections, threaded connection for manometer valve closed with plug. Gunmetal body, plastic cover top, slide and seat made of stainless steel, membrane and valve gasket made of EPDM, transparent plastic filter cup with drain cock, fine filter element 100 µm, threaded ring and key, Factory setting 4 bar. Screw connections see 8201, plug see 5149.080, filter cup 1848/1849, fine filter element 1838/1839, fine filter key 8127.000, transparent filter cups have to be protected from UV rays and aggressive surroundings/influences. It’s required to use only AFM 34 gaskets. * AFM 34 gaskets cannot be oiled neither be greased Secondary pressure 200-600 kPa (2-6 bar), Tmax 30°C GN DN JRG GF Weight d2 G d3 Rp d4 h1 h2 l1 z ⎔ (inch) (mm) Code Code (kg) (inch) (inch) (mm) (mm) (mm) (mm) (mm) 1 25 1353.025 350 690 501 3.950 1 1∕ 14 ∕4 122 390 110 100 50 6 1 1∕4 32 1353.032 350 690 502 4.360 1 1∕ 12 ∕4 122 393 120 120 60 6 1 1∕2 40 1353.040 350 690 503 6.100 1 3∕ 14 ∕4 130 403 157 146 73 8 2 50 1353.050 350 690 504 7.660 2 3∕ 18 ∕4 130 415 172 176 88 8 JRGURED Combi house water station, PN 25 - 4 bar Combined pressure reducing valve with fine filter, PN 25 Connections with male thread BR1 accord. EN ISO 228-1, with brass screw connections, AFM 34* gaskets, threaded connection for manometer valve closed with plug. Gunmetal body, plastic cover top, slide and seat made of stainless steel, membrane and valve gasket made of EPDM, gunmetal filter cup with drain cock, fine filter element 100 µm, threaded ring and key. Factory setting 4 bar. Screw connections see 8201, plug see 5149.080, filter cup 1848/1849, filter element 1838/1839, fine filter key 8127.000 * AFM 34 gaskets cannot be oiled neither be greased Secondary pressure 200-600 kPa (2-6 bar), Tmax. 30°C GN DN JRG GF Weight (inch) (mm) Code Code (kg) 1 25 1360.400 350 690 601 7.220 1 1∕4 32 1360.480 350 690 602 7.820 1 1∕2 40 1360.560 350 690 603 9.670 2 50 1360.640 350 690 604 11.000 GN DN d1 R d2 G d3 Rp d4 h1 h2 l1 l2 z ⎔ (inch) (mm) (inch) (inch) (inch) (mm) (mm) (mm) (mm) (mm) (mm) 1 25 1 1 1∕ 14 ∕4 122 390 110 167 34 50 6 1 1∕4 32 1 1∕4 1 1∕ 12 ∕4 122 393 120 196 38 60 6 1 1∕2 40 1 1∕ 3 12 1 ∕4 ∕4 130 403 157 223 39 73 8 2 50 2 2 3∕ 18 ∕4 130 415 172 269 47 88 8 4

Spare parts/Accessories Filter element Made of PES fleece, for water up to 30°C Suitable for: 1350–1363, 1830-1846 d JRG GF Weight h µm (mm) Code Code (kg) (mm) 70 1838.005 350 590 002 0.100 250 5 70 1838.020 350 590 102 0.140 250 20 70 1838.050 350 590 202 0.100 250 50 70 1838.150 350 590 302 0.140 250 150 70 1838.350 350 590 402 0.140 250 350 FilterF eilletmeern et lement Stainless steel (V4A), for water up to 70°C. Can be washed. For JSRGta 1i3n5l0e–s13s6 3s,t 1e8e3l0 -(1V846A), for water up to 70°C. Can be washed. For JRG 1350–1363, 1830-1846 d JRG GF Weight h µm (mm) Code Code (kg) (mm) 70 18d39.001 350J 5R90G 502 0.120 250GF100W0 eight h µm 70 (m1m8)39.050 35C0 o58d8e 202 0.435 C25o0de 50 (kg) (mm) 70 1839.100 350 590 514 0.250 250 100 70 1839.001 350 590 502 0.120 250 1000 70 1839.050 350 588 202 0.435 250 50 70 1839.100 350 590 514 0.250 250 100 Fine filter key Made of plastic, for screw collar of the filter cups 1830/1849 d JRG GF Weight h (mm) Code Code (kg) (mm) 113 8127.000 355 591 401 0.080 190 5

Connection pieces Union with male thread Made of brass, with long male thread, as length adjustment by changing to other pressure reduc- ing valves GN DN JRG GF Weight d1 R d2 G l1 l2 Z O-Ring (inch) (mm) Code Code (kg) (inch) (inch) (mm) (mm) (mm) 1 25 8299.400 355 583 801 0.440 1 1 1∕4 138 8 18 09 294 04 1 1∕4 32 8299.480 355 584 001 0.760 1 1∕ 14 1 ∕2 165 9 19 09 294 05 1 1∕2 40 8299.560 355 584 201 1.060 1 1∕ 32 1 ∕4 175 10 21 09 294 06 2 50 8299.640 355 584 401 1.160 2 2 3∕8 122 11 25 09 294 12 Union with male thread Made of brass, with conical male thread and gasket suitable to 1300-1333, 1350-1363, 2100-2110, 2113, 2130-2140, 2143, 8201.402 suitable to 9601.040, 9603.040, 9606.040, 9695.480 GN DN JRG GF Weight d1 R d2 G l1 l2 (inch) (mm) Code Code (kg) (inch) (inch) (mm) (mm) 1 25 8201.400 350 331 901 0.180 1 1 1∕4 34 8 1 1∕4 32 8201.480 350 332 001 0.290 1 1∕ 14 1 ∕2 38 9 1 1∕2 40 8201.560 350 332 101 0.360 1 1∕2 1 3∕4 39 10 2 50 8201.640 350 332 201 0.620 2 2 3∕8 47 11 Adapter piece Made of gunmetal/brass, with gasket, for exchanging JRG 1400 with JRGURED 1303 GN DN JRG GF Weight d1 G d2 G l1 l2 (inch) (mm) Code Code (kg) (inch) (inch) (mm) (mm) 1 25 1136.400 350 496 901 0.270 1 1∕4 1 1∕4 40 11 1 1∕4 32 1136.480 350 497 001 0.408 1 1∕2 1 1∕2 53 12 1 1∕2 40 1136.560 350 497 101 0.547 1 3∕ 34 1 ∕4 58 12 2 50 1136.640 350 497 201 1.630 2 1∕ 34 2 ∕8 58 14 6

Connection pieces Screw connection for Mapress press-fitting system BR 1 With press-socket and loose nut, flat sealed, fits 1303, 1313, 1323, 1333, 1353, 1363, 1611, 1621, 2100-2140, 2161, 3600, 5010, 5011, 5080, 5081, 5211, 5281, 6320 d1 DN JRG GF Weight d2 G l1 l2 z ⎔ O-Ring (mm) (mm) Code Code (kg) (inch) (mm) (mm) (mm) 28 25 8350.028 355 600 203 0.170 1 1∕4 36 9 13 46 09 294 04 35 32 8350.035 355 600 204 0.214 1 1∕2 39 10 14 52 09 294 05 42 40 8350.042 355 600 205 0.240 1 3∕4 43 10 14 58 09 294 06 54 50 8350.054 355 600 206 0.430 2 3∕8 49 10 14 75 09 294 12 Screw connection for Optipress/Viega-Sanpress system BR 1 With press-socket and loose nut, flat sealed, fits 1303, 1313, 1323, 1333, 1353, 1363, 1611, 1621, 2100-2140, 2161, 3600, 5010, 5011, 5080, 5081, 5211, 5281, 6320 d1 DN JRG GF Weight d2 G l1 l2 z ⎔ O-Ring (mm) (mm) Code Code (kg) (inch) (mm) (mm) (mm) 28 25 8355.028 355 600 604 0.170 1 1∕4 42 11 18 46 09 294 04 35 32 8355.035 355 600 605 0.210 1 1∕2 44 13 18 53 09 294 05 42 40 8355.042 355 600 606 0.360 1 3∕4 61 13 20 60 09 294 06 54 50 8355.054 355 600 607 0.540 2 3∕8 61 16 15 78 09 294 12 7
