JRG LegioTherm system

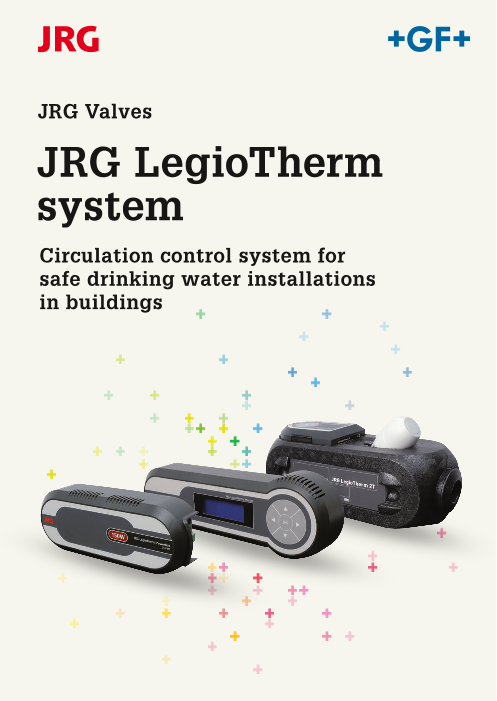

JRG Valves JRG LegioTherm system Circulation control system for safe drinking water installations in buildings

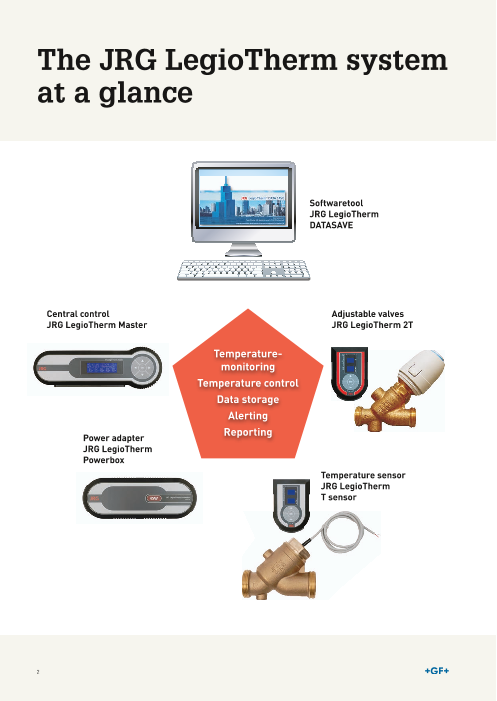

The JRG LegioTherm system at a glance Softwaretool JRG LegioTherm DATASAVE Central control Adjustable valves JRG LegioTherm Master JRG LegioTherm 2T Temperature- monitoring Temperature control Data storage Alerting Power adapter Reporting JRG LegioTherm Powerbox Temperature sensor JRG LegioTherm T sensor 2

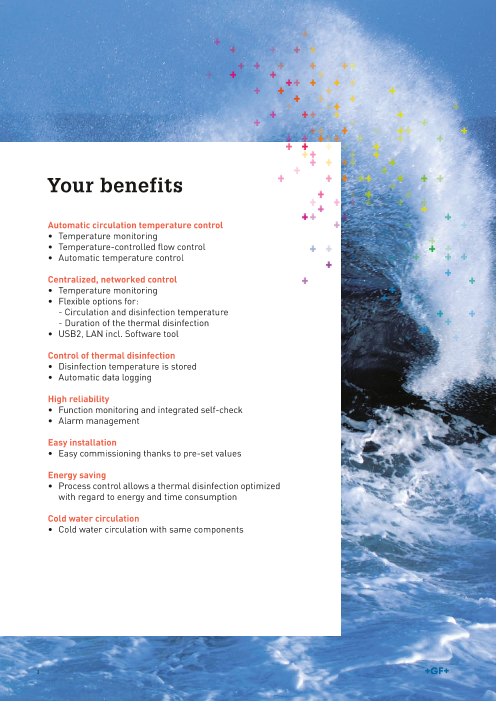

Your benefits Automatic circulation temperature control • Temperature monitoring • Temperature-controlled flow control • Automatic temperature control Centralized, networked control • Temperature monitoring • Flexible options for: - Circulation and disinfection temperature - Duration of the thermal disinfection • USB2, LAN incl. Software tool Control of thermal disinfection • Disinfection temperature is stored • Automatic data logging High reliability • Function monitoring and integrated self-check • Alarm management Easy installation • Easy commissioning thanks to pre-set values Energy saving • Process control allows a thermal disinfection optimized with regard to energy and time consumption Cold water circulation • Cold water circulation with same components 3

Germs in the hot water system The JRG LegioTherm system prevents and fights the commercial buildings, etc. In a second version the data of growth of biofilm. This is achieved by flushing the hot water the individual JRG LegioTherm 2T circulation controllers circulation system with hot water (thermal disinfection). can be analysed using the JRG LegioTherm Master and the Biofilm forms, among others things, due to low tempera- supplied software tool via the included USB2 or LAN ture hot water, stagnant water, low flow rates caused by (Ethernet) interfaces. various water contents, etc. Disease-carrying pathogens such as Legionella or Pseudomonas and the biofilm com- The setup for cold water flushing can be made with the bine thus being protected from external influences. These same components. germs are killed during the thermal disinfection (66-90°C). For more information on drinking water hygiene, please re- fer to our planning documents. Materials All water-bearing parts are made of gunmetal, stainless steel with high quality plastic. Normal operation setting Mounting position (circulation controller) The JRG LegioTherm 2T circulation controller can be 30-90°C mounted in any position. For revision purposes, we suggest to install before and after the JRG LegioTherm 2T circula- Disinfection setting 66-90°C tion controller, a shut-off valve with JRG article-no. 8339. Applications The JRG LegioTherm 2T circulation controller is used wherever a controlled thermal disinfection (TD) of the hot water system is desired or required in addition to the func- tion of a circulation control, such as in hospitals, nursing 24 V230 V homes, hotels, multi-purpose halls, shower-rooms of sports facilities, school buildings, barracks, laboratories, 4

JRG LegioTherm 2T valve construction Number display/Valve Temperature display/Info Input keys Thermoelectric actuator Drain outlet Drain outlet currentless, open PT 1000 temperature sensor 5

JRG LegioTherm system Software tool JRG LegioTherm DATASAVE supplied with JRG LegioTherm Master 2 and 3 Central control Power supply JRG LegioTherm Master 1 JRG LegioTherm Master 2 JRG LegioTherm Master 3 JRG LegioTherm 3610.001 3610.201 Blender application Powerbox 12 W 3610.301 3620.201 JRG LegioTherm Powerbox 45 W 3620.001 JRG LegioTherm Powerbox 150 W 3620.101 Valves, sensors Hydraulic calibration Temperature sensors JRG LegioTherm 2T JRG LegioTherm T-Sensor mit Controller mit Controller 3600.015/3600.020 3660.015/.020/.025/.032/.040 JRG LegioTherm 2T, MT 3602.016/3602.020/3602.026 Temperatursensor mit Controller 3661.015 Building technology JRG LegioTherm 2T JRG LegioTherm 2T without controller, 10 V actuator without controller, 24 V actuator 3600.415/3600.420 3600.115/3600.120 6

JRG LegioTherm system products overview JRG LegioTherm 2T l l JRG LegioTherm 2T without controller with 24 V actuator l JRG LegioTherm 2T with 10 V actuator l JRG LegioTherm T sensor l l JRG LegioTherm T sensor l l JRG LegioTherm Master 1 l JRG LegioTherm Master 2 l JRG LegioTherm Master 3 l l JRG LegioTherm Powerbox 12 W l l JRG LegioTherm Powerbox 45 W l l JRG LegioTherm Powerbox 150 W l l JRG LegioTherm DATASAVE l l l JRG LegioTherm power cord l l JRG LegioTherm communication cable l l 7 SOFT- POWER ACCESSORIES CENTRAL CONTROL WARE SENSORSUPPLY VALVESYSTEM TOOL Hot-water circulation Hot-water circulation for building management systems Mixed water application

Functions Normal operation In normal operation, the JRG LegioTherm 2T circulation controller regulates the circulation flow. If the tempera- controller works according to parameter 1. The water tem- ture of 57°C (factory setting) or the temperature set on the perature is continuously being measured by the tempera- controller is exceeded, the circulation flow rate is reduced ture probe that is fully submerged in the water. If a devia- down to the leakage of 100 l/h (DN 15) set by the JRG tion from the desired temperature is detected, the LegioTherm 2T controller. Normal operation/Hydraulic calibration Valve Valve Valve Time [min] 8 Temperature [°C]

Thermal disinfection All JRG LegioTherm 2T circulation controllers are supplied The blocking period (parameter 5) of the JRG LegioTherm with the thermal disinfection function set on active as a 2T circulation controller now enables a further circulation factory setting (parameter 2). The thermo-electric actuator controller to reach the desired temperature (parameter 8) of the JRG LegioTherm 2T circulation controller opens in order to enter into the thermal disinfection mode and completely as soon as the nominal temperature for the thermally disinfect its circulation line. Following the cas- thermal disinfection mode (parameter 8) is detected. cade principle, the thermal disinfection will now be carried out by one circulation controller after the other. This is The first JRG LegioTherm 2T circulation controller is then repeated until all circulation controllers have run through in thermal disinfection mode and starts the temperature the thermal disinfection mode. calibration to reach a temperature of 75°C (factory setting parameter 3) or any other target temperature as set on the controller (parameter 3). All further installed JRG Legio- Therm 2T circulation controllers are still in normal opera- tion. After reaching the desired temperature (parameter 8) and after the set time (parameter 4) of 3 minutes (factory setting) or any other pre-set time has elapsed, the thermo- electric actuator closes the circulation controller. The cir- culation controller switches back to normal operation mode and cannot carry out any further thermal disinfection during a preset blocking period (parameter 5). 9

Process flow Process flow JRG LegioTherm 2T circulation controller Parameter 4 Duration TD: 3 min Parameter 1 Parameter 8 Parameter 3 Calibration temperature: 57°C Start TD: 70°C TD temperature: 75°C Temperature [°C] Parameter Description Factory setting Setting range 1 Calibration temperature circulation/normal operation 57°C 30–65°C 2 Activation of thermal disinfection ON ON/OFF 3 Calibration temperature of thermal disinfection 75°C 66–90°C 4 Duration of the thermal disinfection 3 min 3–90 min 5 Blocking period of thermal disinfection (time during which the JRG Legio- 01 d 0–99 days Therm 2T circulation controller is blocked for further thermal disinfection and the existing leakage of DN15 100 l/h regulates the normal operation) 8 Starting temperature of thermal disinfection 70°C 35–70°C 10 Volume flow V l/h DN 15

Parameter 1  Parameter 3  Hydraulic calibration – Normal operation Hydraulic calibration – Thermal disinfection The circulation valve regulates the volume flow in normal The circulation controller regulates the volume flow during operation using the pre-set calibration temperature (tem- the thermal disinfection using the pre-set TD temperature. perature sensor). Hydraulic calibration is automatic. If the TD temperature Hydraulic calibration is automatic. If the calibration (parameter 3) is exceeded during thermal disinfection, the temperature is exceeded, the circulation flow rate is circulation flow rate is reduced down to the leakage set by reduced down to the leakage set by the JRG LegioTherm 2T the JRG LegioTherm 2T circulation controller (DN15 100 l/h circulation controller (DN15 100 l/h and DN20 300 l/h). If and DN20 300 l/h). the temperature drops below the calibration temperature, If the temperature drops below the temperature of the the circulation flow rate is increased again by opening the thermal disinfection (parameter 3), the circulation flow circulation controller. rate is increased again by opening the JRG LegioTherm 2T circulation controller. After thermal disinfection the controller returns to normal operation. 11

Basic installation option T sensor WW CW 24 V 230 V Powerbox 12

DIN Text JRG Nr. SIA Basic installation option The JRG LegioTherm Powerbox converts 230 V AC into 24 V DC. Thanks to the low voltage of 24 V DC, the installer can connect the installation to the power supply without any additional help. All JRG LegioTherm 2T circulation control- lers are connected in series and operate on 24 V DC low- voltage. The maximum length of the power cord is to be taken into consideration. In this case, the programming and monitoring is done at each individual JRG LegioTherm 2T circulation controller. Features of Basic installation option • Allows two calibration temperatures (normal/thermal disinfection) • Programming and control is done on them individual JRG LegioTherm 2T circulation controllers • The recent thermal disinfection temperature as well as error messages can be retrieved on the JRG LegioTherm 2T circulation controller • Only power cords 2 x 2.5 mm2 to be laid 13

Standard installation option T sensor WW CW 24 V RS 485 230 V Powerbox Master 1 DIN Text JRG Nr. SIA Standard installation option The JRG LegioTherm Master 1 allows the operator to centrally program and monitor each JRG LegioTherm 2T circulation controller. Power is supplied as in the Basic version. After the JRG LegioTherm Powerbox, a JRG Legio- Therm Master 1 is installed. The JRG LegioTherm Master 1 is connected in series with the individual JRG LegioTherm 2T circulation controllers via an RS 485 communication cable, article no. 3632. This enables a permanent exchange of data between the JRG LegioTherm Master 1 and the JRG LegioTherm 2T circulation controllers. Features of Standard installation option • Allows two calibration temperatures (normal/thermal disinfection) • Programming and control are centrally done on one JRG LegioTherm Master 1 • The process data of the thermal disinfection are logged for each circulation controller • Power cord 2 x 2.5 mm2 and communication cable 2 x 0.5 mm2 to be laid 14

Advanced installation option T sensor WW CW 24 V RS 485 230 V Powerbox Master 2 LAN Switch JRG LegioTherm DATASAVE DIN Text JRG Nr. SIA Advanced installation option The software tool JRG LegioTherm DATASAVE enhances the JRG LegioTherm Master 2 process control and data storage features. The installation is the same as the Stand- ard version. The JRG LegioTherm Master 2 can addition- ally be networked to a computer via USB2 or LAN. Features of Advanced installation option • On-line temperature monitoring • Automatic report on thermal disinfection • Report on building management system • Setting parameters via data upload and download • Configuration of parameter settings 15

Advanced installation option with mixed water application LAN Switch Powerbox Master 3 230 V JRG LegioTherm DATASAVE MW 24 V 230 V RS 485 T sensor 24 V 230 V HW T sensor CW DIN Text JRG Nr. SIA Installation option with mixed water The JRG LegioTherm Master 3 offers the possibility to monitor and control a JRGUMAT mixing valve with regard to the mixed water temperature as well as the thermal disin- fection. The 3-way valve and the circulation pump can also be connected to the JRG LegioTherm Master 3. Further- more, there is the possibility to connect a solenoid valve or a separate relay for an external system. Features of installation option with mixed water • Integration of mixing valve including a 3-way valve and temperature monitoring • Monitored circulation pump 16

X Valve temperature T Target temperature hydraulic calibration (T1) set Target temperature hydraulic calibration (T1) optimized Threshold temperature (T4) Optimized hydraulic calibration Control valves using static calibration temperatures may cause unnecessary energy loss and may reduce comfort in case of temperature fluctuations. JRG LegioTherm DATASAVE °C JRG LegioTherm Masters 2 and 3 come with the software 1 11 1 Current temperaturesat valve 1 tool JRG LegioTherm DATASAVE. This PC tool allows users 62° 1 1 1 1 1 1 to directly access all JRG LegioTherm system components. 1 57° Hydraulic calibrationTemperature pre-set Setting system parameters, monitoring temperatures as well as data logging and storing is made easier thanks to JRG LegioTherm DATASAVE. Current Time Temperature monitoring • Temperature difference 5°C  the calibration valve JRG LegioTherm DATASAVE allows you to monitor all valve remains closed! temperatures and temperature sensors as well as to set • The hydraulic calibration does not fulfil its control their parameters online. Various process settings are function! available for thermal disinfection. Furthermore, tempera- ture values, maximum temperatures and error messages In order to automatically optimize the hydraulic calibra- are logged and stored hourly. JRG LegioTherm DATASAVE tion temperature, the mean value of the recent 24 tem- enables the user to retrieve all data on-line. The tempera- perature values is automatically used as new hydraulic ture data files can be evaluated and visualized in a spread calibration temperature T1. Each calibration temperature sheet at any time. Temperature trends are an essential T1 is individually calculated and hourly updated. factor for assessing drinking water risks. Optimized hydraulic calibration Logging 24 temperature valves • Water temperature at each valve (hourly) °C • Maximum temperature per valve 1 1 1 1 • Thermal disinfection including date, maximum 62° 1 1 1 1 1 Optimized hydraulic 1 1 calibration temperature per valve and TD, duration total/per valve 57° Static calibration • A log file of the thermal disinfection is automatically temperature created as pdf file • Error and alarm management Current Time All data is stored on a computer and can be accessed by the Advantages building management system. • The mean value is calculated once per hour, control • Energy is saved thanks to dynamic calibration temperature • Seasonal fluctuations can be compensated • Less biofilm due to higher flow rates 17

References Temperature monitoring for drinking water installations provides the most important indicator for ensuring drinking water hygiene in the inhabited house. This is particularly important in kindergartens, schools, sports facilities, nursing homes, hotels and hospitals. Hotel Residential building Residential building with hotel Sports facilities 18

19

System components JRG LegioTherm 2T, PN 10 For hot water systems, with thermoelectric actuator d 2 l b 5 2 h d including controller and thermal insulation, outlets 1 3 with male thread BR 1 according to EN ISO 228-1, without screw connection, threaded connection for d d h 1 1 3 drain valve with closure plug 5149, without drain valve, gunmetal housing, seat made of stainless steel, d l l 3 2 3 EPDM seals, PPSU control cone, for water up to 90°C, l 1 maximum working pressure PN 10, free of water pockets design. b 1 Factory setting normal operation 57°C, setting range 30-65°C. h 2 Factory setting thermal disinfection 75°C, l 4 setting range 66-90°C. Catalog No. DN GF Code EAN b1 b2 d1 d2 d3 h1 h2 h3 3600.015 15 643.311 351110100 7613263003928 87.6 37 G ¾ G ½ Rp ¼ 90 113 126 3600.020 20 643.312 351110101 7613263003911 87.6 37 G 1 G ¾ Rp ¼ 95 113 126 Catalog No. DN d dl1 l2 l3 l4 l5 kg 3600.015 15 75 6 23.5 310 88 09 294 23 6 1 0.900 3600.020 20 87 7 24.0 310 88 09 294 21 6 1 0.900 JRG LegioTherm 2T, PN 10, MT d For hot water systems, with thermoelectric actuator including controller and thermal insulation, with JRG Sanipex MT adapter, threaded connection for drain valve with closure plug 5149, without drain valve, gunmetal housing, seat made of stainless steel, EPDM seals, PPSU control cone, for water up to 90°C, maximum working pressure PN 10, free of water pockets design. Factory setting normal operation: 57°C, setting range 30-65°C. Factory setting thermal disinfection: 75°C, setting range 66-90°C. Catalog No. d DN GF Code EAN b1 b2 d1 d2 d3 h1 h2 h3 3602.016 16 12 351110221 7613263003744 87.6 37 16 G ½ Rp ¼ 89.65 113 126 3602.020 20 15 351110090 7613263003942 87.6 37 20 G ½ Rp ¼ 89.65 113 126 3602.026 26 20 351110091 7613263003935 87.6 37 26 G ¾ Rp ¼ 94.80 113 126 Catalog No. d DN l1 l4 l5 z1 z2 kg 3602.016 16 12 115 310 88 28 50 6 1 1.317 3602.020 20 15 122 310 88 27 51 6 1 1.343 3602.026 26 20 152 310 88 27 63 6 1 1.566 20
