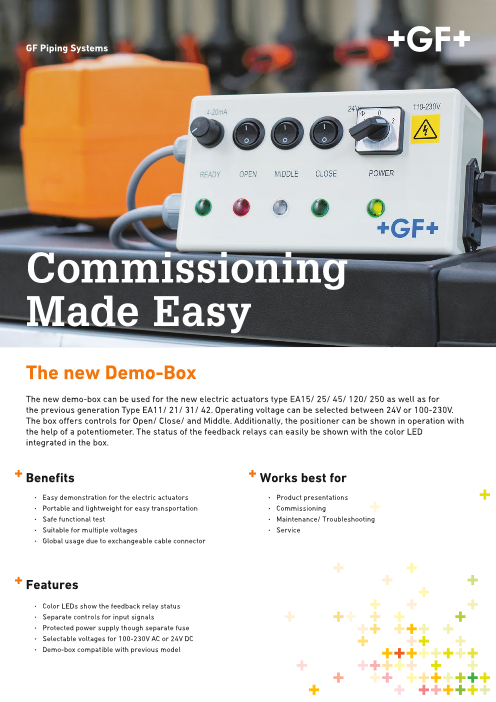

GF Piping Systems Commissioning Made Easy The new Demo-Box The new demo-box can be used for the new electric actuators type EA15/ 25/ 45/ 120/ 250 as well as for the previous generation Type EA11/ 21/ 31/ 42. Operating voltage can be selected between 24V or 100-230V. The box o ers controls for Open/ Close/ and Middle. Additionally, the positioner can be shown in operation with the help of a potentiometer. The status of the feedback relays can easily be shown with the color LED integrated in the box. Benefi ts Works best for • Easy demonstration for the electric actuators • Product presentations • Portable and lightweight for easy transportation • Commissioning • Safe functional test • Maintenance/ Troubleshooting • Suitable for multiple voltages • Service • Global usage due to exchangeable cable connector Features • Color LEDs show the feedback relay status • Separate controls for input signals • Protected power supply though separate fuse • Selectable voltages for 100-230V AC or 24V DC • Demo-box compatible with previous model

Connecting made easy Easy handling of demo-box thanks to pluggable connections Potentiometer for positioner On/ O switch for Voltage selection for demonstration position control global usage Power status display “Ready-to-operate” status feedback to show action in case of “failure” LED feedback for feedback relay Order No: 199.190.607 demonstration The technical data are not binding. They neither constitute expressly warranted characteristics nor guaranteed properties nor a guaranteed durability. They are subject to modifi cation. Our General Terms of Sale apply. Your contact Georg Fischer Piping Systems Ltd Ebnatstrasse 111 8201 Scha hausen Switzerland www.gfps.com GFDO_6459_4 (08.16)
