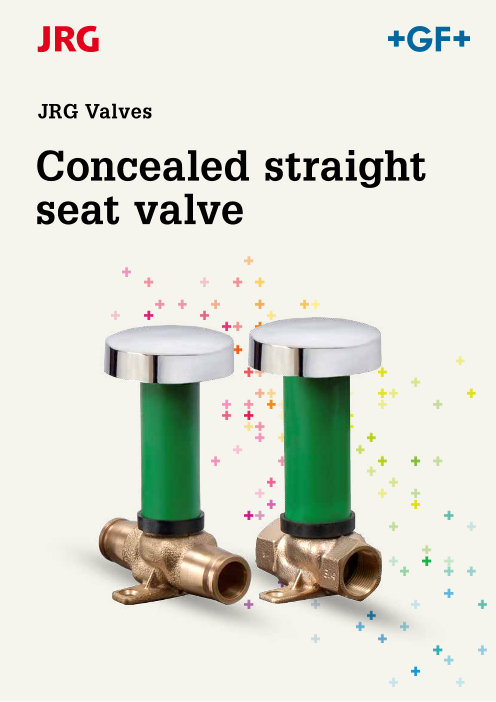

Concealed straight seat valve

JRG Valves Concealed straight seat valve

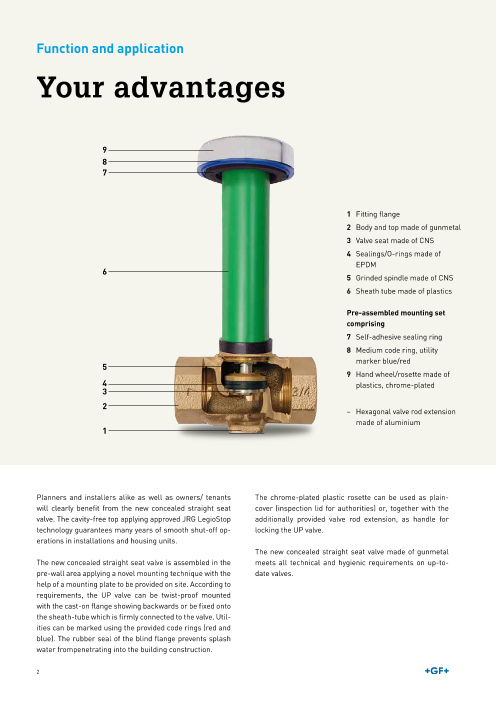

Function and application Your advantages 9 8 7 1 Fitting flange 2 Body and top made of gunmetal 3 Valve seat made of CNS 4 Sealings/O-rings made of EPDM 6 5 Grinded spindle made of CNS 6 Sheath tube made of plastics Pre-assembled mounting set comprising 7 Self-adhesive sealing ring 8 Medium code ring, utility marker blue/red 5 9 Hand wheel/rosette made of 4 plastics, chrome-plated 3 2 – Hexagonal valve rod extension made of aluminium 1 Planners and installers alike as well as owners/ tenants The chrome-plated plastic rosette can be used as plain- will clearly benefit from the new concealed straight seat cover (inspection lid for authorities) or, together with the valve. The cavity-free top applying approved JRG LegioStop additionally provided valve rod extension, as handle for technology guarantees many years of smooth shut-off op- locking the UP valve. erations in installations and housing units. The new concealed straight seat valve made of gunmetal The new concealed straight seat valve is assembled in the meets all technical and hygienic requirements on up-to- pre-wall area applying a novel mounting technique with the date valves. help of a mounting plate to be provided on site. According to requirements, the UP valve can be twist-proof mounted with the cast-on flange showing backwards or be fixed onto the sheath-tube which is firmly connected to the valve. Util- ities can be marked using the provided code rings (red and blue). The rubber seal of the blind flange prevents splash water frompenetrating into the building construction. 2

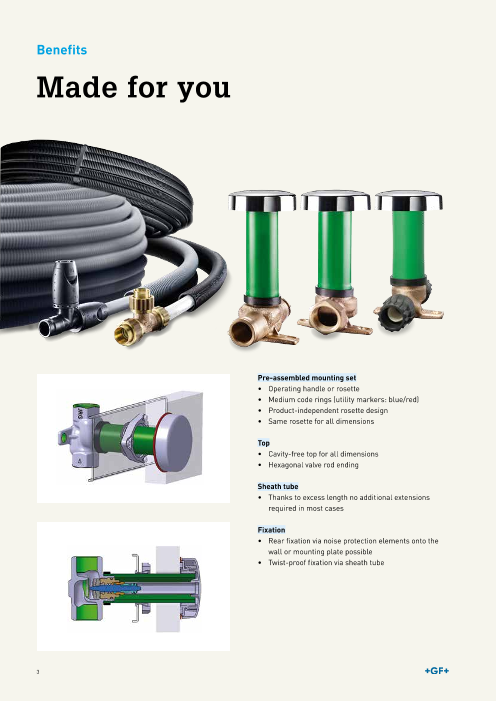

Benefits Made for you Pre-assembled mounting set • Operating handle or rosette • Medium code rings (utility markers: blue/red) • Product-independent rosette design • Same rosette for all dimensions Top • Cavity-free top for all dimensions • Hexagonal valve rod ending Sheath tube • Thanks to excess length no additional extensions required in most cases Fixation • Rear fixation via noise protection elements onto the wall or mounting plate possible • Twist-proof fixation via sheath tube 3

Installation instructions Rear fixation Fixation on the sheath tube With this mounting type the UP valve With this mounting type the UP is fixed to the installation via valve is fixed via sheath tube using a mounting points (observe noise patented clamp. protection). Cut the sheath tube to 30 mm length The mounting plate is to be provided from the finished wall. on site with a thickness of minimum 2 – maximum 3 mm must come with a borehole of 38 mm in diameter. Attach the red or the blue code ring Squeeze the slotted pre-assembled (utility marker) to the blind flange clamping ring; insert it collar first and mount it to the sheath tube. through the borehole until it latches. Put the coupling nut on the tube end and screw it two turns by hand. Then tighten the nut using a wrench until the sealing lies flat and seals smoothly. Check: Properly tightened if a gap of Insert the UP valve through the about 0.5 mm is visible between the clamp from the back. Adjust it ring and the tiles. Trim the sheath tube accordingto the desired length and to be flush with the leading edge of the screw in the three sheet-metal nut. screws fully (screwdriver torx 15). Insert the hexagonal valve rod extension into the sheath tube through the valve rod hexagon all the way to the stop. Mark the extension to be flush with the leading edge of the coupling nut, trim it at right angles, and debur it. Attach the handle rosette to the trimmed valve rod extension. Insert the valve rod extension into the sheath tube through the hexagon of the valve rod until it clips on the blind flange. 4

Range of products JRG Valves ALT NEU JRG Code JRG Code Text Dimension 5800.240 5900.240 ½ 5800.320 5900.320 Concealed straight seat valve with inner thread ¾ 5800.400 5900.400 1 5800.480 – Item is no longer stocked 1¼ 5910.320 Concealed straight seat valve with Mepla connection ¾ 5916.320 Concealed straight seat valve with inner thread ¾ 5820.240 5920.240 ½ Concealed corner straight seat valve with sleeve 5820.320 5920.320 ¾ 5821.240 5921.320 ½ Concealed corner straight seat valve without sleeve 5821.320 5921.320 ¾ 5804.016 5922.016 16 5804.020 5922.020 20 Concealed straight seat valve with MT connection 5804.026 5922.026 26 5804.032 5922.032 32 5924.016 16/20 Concealed straight seat valve with iFit connection 5924.025 25/32 5925.015 15 5925.018 18 Concealed straight seat valve with iFit connection 5925.022 22 5925.028 28 JRG Sanipex ALT NEU JRG Code JRG Code Text Dimension 5445.001 5444.000 Concealed straight seat distributor valve 4-fold ¾-16 5448.001 5444.002 Concealed straight seat distributor valve 4-fold ¾-16 5458.040 5458.045 Shut-off unit without counter ¾ 5458.050 5458.055 Shut-off unit with counter ¾ 5458.058 Compact unit for GIS profile, without counter ¾ 5458.060 5458.065 Compact unit for GIS profile, 1 counter ¾ 5458.070 5458.075 Compact unit for GIS profile, 2 counters ¾ 5459.055 5459.058 Compact unit for Duofix, without counter ¾ 5459.060 5459.065 Compact unit for Duofix, 1 counter ¾ 5459.070 5459.075 Compact unit for Duofix, 2 counters ¾ 5

Accessoires/Spare parts for UP valves NEW JRG Code Text Dimension 5929.001 Fixing set rear, for flange - 5929.002 Fixing set front, for sheath tube - 5995.000 Replacement top M25x1,5 10 620 89 Replacement preassembled mounting set - OLD JRG Code Text Dimension 5980.240 ½ 5980.320 ¾ Protective sleeve 5980.400 1 5980.480 1¼ 5982.240 ½ 5982.320 ¾ Top plate 5982.400 1 5982.480 1¼ 5985.240 ½ 5985.320 OTop 1970 - 2009 ¾ 5985.400 1 5985.480 1¼ 5986.160 20 x 19 Top till 1969 5986.320 32 x 14 6

Products GF JRG Valves Products Concealed straight seat valve JRG LegioStop with female thread, PN16, with upper part free of death traps JRG LegioStop, Gunmetal body, grinded rising valve stem and seat made of stainless steel, EPDM gaskets, plas- tic protection pipe, hand wheel rosette made of plastic chromium plated, for water up to 90°C.Fixing set for the rear for flange see 5929.001, Fixing set for the front for protec- tion pipe see 5929.002 d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   1∕   1∕  2 2 15 5  900.240  351 062 000   0.577 3∕4 3∕4 20 5900.320 351 062 001 0.606 1 1 25 5900.400 351 062 002 0.810               d Rp GN DN d1 d2 d3 h1 h2 h3 h4 l z ⎔1 ⎔2 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   1∕  2 1∕      2 15 39 34   71   18   28   43 ‐ 275   22   65   20   18   27 3∕4 3∕4 20 39 34 71 22 28 43 ‐ 275 22 75 23 18 32 1 1 25 39 34 71 27 28 43 ‐ 275 22 90 28 18 41                               Concealed shut off fitting JRG LegioStop without counter outlet with long bracket, with female thread, PN10 Gunmetal body, upper part JRG Le- gioStop free of death traps, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel / rosette made of chromium plated plastic, for water up to 90°C, Fixing set rear, for flange see 5929.001 d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   3∕   3∕   20  5910.320 3 4 4 55 566 455   0.967               d Rp GN DN d1 d2 d3 h1 h2 h3 h4 l z1 z2 ⎔1 ⎔2 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕  4 3∕  4 20   39   34   71   22   28   43 ‐ 110   24   223   23   170   18   32                                   Concealed shut off fitting JRG LegioStop with counter with female thread, PN10 consisting of: Concealed straight seat valve and - counter case KOAX, Gunmetal body, upper part JRG LegioStop free of death traps, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, Plastic protec- tion pipe, hand wheel / rosette made of chromium plated plastic, Brass blind flange, mounting protection case for water up to 90°C, Qn 1.5 m3/h Fixing set rear, for flange see 5929.001 Counter head can be installed only upwards or sideward, max. pressure test 16 bar suitable to: Mensural saggar KOAX + m Conc. counter see 5456.005 d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   3∕  4 3∕  4 20 5  916.320 3  55 566 470   1.410               d Rp GN DN d1 d2 d3 d4 h1 h2 h3 h4 h5 l l1 z1 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   3∕   20   39   34   71   103   22    4 4 28 43 ‐ 110   24   95   223   130   23                                 d Rp GN DN z2 ⎔1 ⎔2 [inch] [inch] [mm] [mm]   3∕          4 3∕4 20 40 18 32               Concealed corner straight seat JRG LegioStop Inlet with male thread, outlet with female thread, PN16 with free of death traps upper 7 part JRG LegioStop, Gunmetal body, grinded spindle and seat made of stainless steel, EPDM gaskets, with plastic protection pipe, hand wheel rosette made of plastic chromi- um plated, for water up to 90°C. Fixing set for front, for protection pipe see 5929.002 d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   1∕  2 1∕    2 15 5920.240 3  51 062 016   0.465 3∕4 3∕4 20 5920.320 351 062 018 0.533               d Rp GN DN d1 d2 d3 h1 h2 h3 h4 l z1 z2 ⎔1 ⎔2 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   1∕  2 1∕    2 15 39   34   71   35   24   43 ‐ 275   22   33   20   22   18   34 3∕4 3∕4 20 39 34 71 40 27 43 ‐ 275 22 38 23 25 18 42                                 Concealed corner straight seat JRG LegioStop Inlet with male thread, outlet with female thread, PN16 with free of death traps upper part JRG LegioStop, Gunmetal body, grinded grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, for water up to 90°C. d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   1∕   1∕  2 2 15  5921.240 3  51 062 017   0.275 3∕4 3∕4 20 5921.320 351 062 019 0.340               d Rp GN DN d1 h1 h2 h3 l z1 ⎔1 ⎔2 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   1∕   1∕   15          2 2 25 35 29 30 33   20   18   34 3∕4 3∕4 20 25 40 32 30 38 23 18 42

Concealed shut off fitting JRG LegioStop with counter with female thread, PN10 consisting of: Concealed straight seat valve and - counter case KOAX, Gunmetal body, upper part JRG LegioStop free of death traps, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, Plastic protec- tion pipe, hand wheel / rosette made of chromium plated plastic, Brass blind flange, mounting protection case for water up to 90°C, Qn 1.5 m3/h Fixing set rear, for flange see 5929.001 Counter head can be installed only upwards or sideward, max. pressure test 16 bar suitable to: Mensural saggar KOAX + m Conc. counter see 5456.005 d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   3∕   3∕  4 4 20  5916.320 3  55 566 470   1.410               d Rp GN DN d1 d2 d3 d4 h1 h2 h3 h4 h5 l l1 z1 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   3∕   20   39   34   71   103   22   28  4 4 43 ‐ 110   24   95   223   130   23                                 d Rp GN DN z2 ⎔1 ⎔2 [inch] [inch] [mm] [mm]     GF JRG Valves 3∕4 3∕   4 20   40   18   32               Concealed corner straight seat JRG LegioStop Inlet with male thread, outlet with female thread, PN16 with free of death traps upper part JRG LegioStop, Gunmetal body, grinded spindle and seat made of stainless steel, EPDM gaskets, with plastic protection pipe, hand wheel rosette made of plastic chromi- um plated, for water up to 90°C. Fixing set for front, for protection pipe see 5929.002 d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   1∕   1∕        2 2 15 5920.240 351 062 016 0.465 3∕4 3∕4 20 5920.320 351 062 018 0.533               d Rp GN DN d1 d2 d3 h1 h2 h3 h4 l z1 z2 ⎔1 ⎔2 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   1∕   1∕   15   39   34   71   35    2 2 24 43 ‐ 275   22   33   20   22   18   34 3∕4 3∕4 20 39 34 71 40 27 43 ‐ 275 22 38 23 25 18 42                                 Concealed corner straight seat JRG LegioStop Inlet with male thread, outlet with female thread, PN16 with free of death traps upper part JRG LegioStop, Gunmetal body, grinded grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, for water up to 90°C. d Rp GN DN JRG GF Weight [inch] [inch] [mm] Code Code [kg]   1∕    2 1∕2 15 5  921.240 3  51 062 017   0.275 3∕4 3∕4 20 5921.320 351 062 019 0.340               d Rp GN DN d1 h1 h2 h3 l z1 ⎔1 ⎔2 [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   1∕   1∕   15   25   35   29   30   33   20   18  2 2 34 3∕4 3∕4 20 25 40 32 30 38 23 18 42                           Concealed straight seat valve JRG LegioStop With adapters to JRG Sanipex MT, PN10 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosettemade of chromium plated plastic For water up to 90°C. Fixing set rear, for flange see 5929.001 Front fixing set, for protection pipe see 5929.002 d GN DN JRG GF Weight [mm] [mm] [mm] Code Code [kg]   16   16   12  5922.016  351 616 999   0.530 20 20 15 5922.020 351 620 999 0.598 26 26 20 5922.026 351 626 999 0.580 32 32 25 5922.032 351 632 999 0.950               d GN DN d1 d2 d3 h1 h2 h3 h4 l z ⎔ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   16   16   12   39   34   71   15   28   43 ‐ 275   24   108   37   18 20 20 15 39 34 71 18 28 43 ‐ 275 24 120 39 18 26 26 20 39 34 71 22 28 43 ‐ 275 24 137 41 18 32 32 25 39 34 71 27 28 43 ‐ 275 24 172 49 18                             Concealed straight seat valve JRG LegioStop with push connection for stainless steel pipes (DVGW W541) and copper pipes (DIN 8 EN 1057), PN10 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plas- tic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C. Fixing set rear, for flange see 5929.001 Front fixing set, for protection pipe see 5929.002 d GN DN JRG GF Weight [mm] [mm] [mm] Code Code [kg]   15   15   12  5925.015 3  51 062 012   0.300 18 18 15 5925.018 351 062 013 0.350 28 28 25 5925.028 351 062 015 0.950 22 22 20 5925.022 351 062 014 0.580               d GN DN d1 d2 d3 h1 h2 h3 h4 l z ⎔ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   15   15   12   39   34   71   15   28   43 ‐ 275   24   97   25   18 18 18 15 39 34 71 18 28 43 ‐ 275 24 111 26 18 28 28 25 39 34 71 27 28 43 ‐ 275 24 143 30 18 22 22 20 39 34 71 22 28 43 ‐ 275 24 117 28 18

Concealed straight seat valve JRG LegioStop With adapters to JRG Sanipex MT, PN10 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosettemade of chromium plated plastic For water up to 90°C. Fixing set rear, for flange see 5929.001 Front fixing set, for protection pipe see 5929.002 d GN DN JRG GF Weight [mm] [mm] [mm] Code Code [kg]   16   16   12  5922.016 3  51 616 999   0.530 20 20 15 5922.020 351 620 999 0.598 26 26 20 5922.026 351 626 999 0.580 32 32 25 5922.032 351 632 999 0.950               d GN DN d1 d2 d3 h1 h2 h3 h4 l z ⎔ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   16   16   12   39   34   71   15   28   43 ‐ 275   24   108   37   18 20 20 15 39 34 71 18 28 43 ‐ 275 24 120 39 18 26 26 20 39 34 71 22 28 43 ‐ 275 24 137 41 18 GF JRG Valves 32 32 25 39 34 71 27 28 43 ‐ 275 24 172 49 18                            Concealed straight seat valve JRG LegioStop with push connection for stainless steel pipes (DVGW W541) and copper pipes (DIN EN 1057), PN10 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plas- tic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C. Fixing set rear, for flange see 5929.001 Front fixing set, for protection pipe see 5929.002 d GN DN JRG GF Weight [mm] [mm] [mm] Code Code [kg]   15   15   12  5925.015 3  51 062 012   0.300 18 18 15 5925.018 351 062 013 0.350 28 28 25 5925.028 351 062 015 0.950 22 22 20 5925.022 351 062 014 0.580               d GN DN d1 d2 d3 h1 h2 h3 h4 l z ⎔ [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   15   15   12   39   34   71   15   28   43 ‐ 275   24   97   25   18 18 18 15 39 34 71 18 28 43 ‐ 275 24 111 26 18 28 28 25 39 34 71 27 28 43 ‐ 275 24 143 30 18 22 22 20 39 34 71 22 28 43 ‐ 275 24 117 28 18                               Concealed straight seat valve for distribution 4-way JRG LegioStop Inlet from behind with male thread, outlet to JRG Sanipex classic, PN16 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C, for max. 16LU Front fixing set, for protection pipe see 5929.002 d GN JRG GF Weight [mm] [inch] Code Code [kg]   16   3∕  4 5444.000 3  51 062 020   0.725             d GN d1 R d2 d3 d4 h1 h2 h3 h4 l l1 l2 z1 z2 [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   16   3∕   3∕   39   34   71   43  4 4 19   35 ‐ 265   24   136   55   41   51   24                                 d GN ⎔ [mm] [inch]   16   3∕  4 18         Concealed straight seat valve for distribution 4-way JRG LegioStop Inlet sidewise with male thread, outlet to JRG Sanipex classic, PN16 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C, for max. 16LU Front fixing set, for protection pipe see 5929.002 d GN JRG GF Weight [mm] [inch] Code Code [kg]   16   3∕ 5  444.002 3 4 51 062 022   0.780             d GN d1 R d2 d3 d4 h1 h2 h3 h4 l l1 l2 l3 z1 [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   16   3∕  4 3∕    4 39 34   71   30   21   35 ‐ 265   24   136   55   41   51   51                                 9 d GN z2 ⎔ [mm] [inch] [mm]   16   3∕    4 24 18

Concealed straight seat valve for distribution 4-way JRG LegioStop Inlet from behind with male thread, outlet to JRG Sanipex classic, PN16 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C, for max. 16LU Front fixing set, for protection pipe see 5929.002 d GN JRG GF Weight [mm] [inch] Code Code [kg]   16   3∕4 5  444.000 3  51 062 020   0.725             d GN d1 R d2 d3 d4 h1 h2 h3 h4 l l1 l2 z1 z2 [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   16   3∕   3∕   39   34    4 4 71 43   19   35 ‐ 265   24   136   55   41   51   24                                 d GN ⎔ [mm] [inch]   16   3JRG Sanipex ∕   4 18         Concealed straight seat valve for distribution 4-way JRG LegioStop Inlet sidewise with male thread, outlet to JRG Sanipex classic, PN16 with upper part JRG LegioStop free of death traps, gunmetal body, grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C, for max. 16LU Front fixing set, for protection pipe see 5929.002 d GN JRG GF Weight [mm] [inch] Code Code [kg]   16   3∕4 5  444.002 3  51 062 022   0.780             d GN d1 R d2 d3 d4 h1 h2 h3 h4 l l1 l2 l3 z1 [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   16   3∕   3∕   39   34   71   30   21   35 ‐ 265   24   136   55  4 4 41   51   51                                 d GN z2 ⎔ [mm] [inch] [mm]   16   3∕   24  4 18             Shut-off unit JRG LegioStop without counter with female thread, PN10 consisting of: Concealed straight seat valve, outlet for wash- ing basin, pressure plug and noise absorbing plate Gunmetal body, upper part JRG LegioStop free of death traps, grinded spindle and seat made of stainless steel, EPDM gaskets, Plastic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C. SVGW registered. Fixing set rear, for flange see 5929.001 suit- able to: Armature plate for GIS Profile see 5458.000 GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕  4 20  5458.045 3  55 566 411   1.550             GN DN d1 Rp d2 Rp d4 d5 h1 h2 h3 h4 h6 h7 l l1 [inch] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   3∕   1∕  4 4 2 34   71   22   28   43 ‐ 110   22   22   97   368   300                               GN DN z1 z2 z3 ⎔1 ⎔2 [inch] [mm] [mm] [mm] [mm]   3∕  4 20   23   20   15   32   10                 Shut-off unit JRG LegioStop with counter with female thread, PN10 Consisting of: Concealed straight seat valve, counter casing KOAX, outlet for wash- ing basin, pressure plug and noise absorbing plate Gunmetal body, upper part JRG LegioStop free of death traps, grinded spindle and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosette made of chromium plat- ed plastic, Brass blind flange, mounting protection cover for water up to 90°C, Qn 1.5 m3/h. SVGW registered. Fixing set rear, for flange see 5929.001 Counter head can be installed only upwards or side wards, max. testing pressure 16 bar suitable to: Mensural saggar KOAX + m UP-counter see 5456.005 Armature plate for GIS Profil see 5458.000 GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕  4 20  5458.055 3  55 566 466   2.040             GN DN d1 Rp d2 Rp d3 d4 d5 h1 h2 h3 h4 h5 h6 h7 [inch] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3 10 ∕   4 20   3∕  4 1∕  2 103   34   71   22   28   43 ‐ 110   22   100   22   97                               GN DN l l2 l3 z1 z2 z3 ⎔1 ⎔2 [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20  4 368   130   170   23   20   15   32   10

Shut-off unit JRG LegioStop without counter with female thread, PN10 consisting of: Concealed straight seat valve, outlet for wash- ing basin, pressure plug and noise absorbing plate Gunmetal body, upper part JRG LegioStop free of death traps, grinded spindle and seat made of stainless steel, EPDM gaskets, Plastic protection pipe, hand wheel/rosette made of chromium plated plastic, for water up to 90°C. SVGW registered. Fixing set rear, for flange see 5929.001 suit- able to: Armature plate for GIS Profile see 5458.000 GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕    4 20 5458.045 3  55 566 411   1.550             GN DN d1 Rp d2 Rp d4 d5 h1 h2 h3 h4 h6 h7 l l1 [inch] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   3∕   1∕   34   71   22   28   43 ‐ 110   22   22   97   368  4 4 2 300                               GN DN z1 z2 z3 ⎔1 ⎔2 [inch] [mm] [mm] [mm] [mm]   3∕   20   23    JRG Sanipex 4 20 15   32   10                 Shut-off unit JRG LegioStop with counter with female thread, PN10 Consisting of: Concealed straight seat valve, counter casing KOAX, outlet for wash- ing basin, pressure plug and noise absorbing plate Gunmetal body, upper part JRG LegioStop free of death traps, grinded spindle and seat made of stainless steel, EPDM gaskets, plastic protection pipe, hand wheel/rosette made of chromium plat- ed plastic, Brass blind flange, mounting protection cover for water up to 90°C, Qn 1.5 m3/h. SVGW registered. Fixing set rear, for flange see 5929.001 Counter head can be installed only upwards or side wards, max. testing pressure 16 bar suitable to: Mensural saggar KOAX + m UP-counter see 5456.005 Armature plate for GIS Profil see 5458.000 GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕  4 20  5458.055  355 566 466   2.040             GN DN d1 Rp d2 Rp d3 d4 d5 h1 h2 h3 h4 h5 h6 h7 [inch] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   3∕   1∕   103   34   71  4 4 2 22   28   43 ‐ 110   22   100   22   97                               GN DN l l2 l3 z1 z2 z3 ⎔1 ⎔2 [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   368   130   170   23   20   15   32  4 10                       Compact unit JRG LegioStop for GIS Profile, without counter consisting of: 2 Armature plates 5458.000, 2 lockable units without counter 5458.045, drain pipe clamp, pressure plug, fixing clip, noise absorbing plate pre-mounted compact unit suitable to: Geberit System GIS GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕  4 20  5458.058 3  55 566 454   4.020             GN DN b d1 Rp d2 Rp d6 h1 h3 h4 h5 l l1 z1 z3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   141  4 3∕   1∕  4 2 50 ‐ 56   130   97   71   22   368   300   23   15                                 11

JRG Sanipex Compact unit JRG LegioStop for GIS Profil, 1 counter consisting of: 2 Armatur plates 5458.000, 1 shut-off unit without counter 5458.045, 1 shut-off unit with counter 5458.055, drain pipe clamp, Pressure plug, fixing clip, noise absorbing plate pre-mounted compact unit suitable to: Mensural saggar KOAX + m UP- counter see 5456.005 Geberit System GIS GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕  4 20 5  458.065 3  55 566 467   4.500             GN DN b d1 Rp d2 Rp d6 h1 h2 h3 h4 h5 l l2 l3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   141   3∕    4 4 1∕2 50 ‐ 56   130   110   97   71   22   368   130   170                               GN DN z1 z3 [inch] [mm] [mm] [mm]   3∕   20   23  4 15             Compact unit JRG LegioStop for GIS Profil, 2 counters consisting of: 2 Armature plates 5458.000, 2 shut-off units with counter 5458.055, drain pipe clamp, pressure plug, fixing clip, noise absorbing plates pre-mounted compact unit suitable to: Mensural saggar KOAX + m UP-counter see 5456.005 Geberit System GIS GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕      4 20 5458.075 355 566 468   4.905             GN DN b d1 Rp d2 Rp d6 h1 h2 h3 h4 h5 l l2 l3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕  4 20   141   3∕  4 1∕  2 50 ‐ 56   130   110   97   71   22   368   130   170                               GN DN z1 z3 [inch] [mm] [mm] [mm]   3∕  4 20   23   15             Fixing clip for washbasin made of galvanised steel with plastic on threads suitable to: GIS profile d JRG GF Weight [mm] Code Code [kg]   M10 5  566.439 3  55 566 439   0.219           Compact unit JRG LegioStop for Duofix-washing basin element, without counter Consisting of: 2 Armature plates 5459.000, 2 Shut-off units without counter 5458.045 Compact unit not pre-mounted Suitable to: Geberit system Duofix*, 111.426.00.1, 111.475.00.1, 111.470.00.1, 111.492.00.1 * These products are not distributed from us GN DN JRG GF Weight 12 [inch] [mm] Code Code [kg]   3∕  4 20 5  459.058 3  55 566 358   4.140             GN DN b d1 Rp d2 Rp h1 h2 h3 h4 h5 l l2 l3 z1 z3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕   20   153   3∕    4 4 1∕2 130   110   97   63   22   368   130   170   23   15

Fixing clip for washbasin made of galvanised steel with plastic on threads suitable to: GIS profile d JRG GF Weight [mm] Code Code [kg]   JRG Sanipex M10  5566.439 3  55 566 439   0.219           Compact unit JRG LegioStop for Duofix-washing basin element, without counter Consisting of: 2 Armature plates 5459.000, 2 Shut-off units without counter 5458.045 Compact unit not pre-mounted Suitable to: Geberit system Duofix*, 111.426.00.1, 111.475.00.1, 111.470.00.1, 111.492.00.1 * These products are not distributed from us GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕    4 20 5459.058  355 566 358   4.140             GN DN b d1 Rp d2 Rp h1 h2 h3 h4 h5 l l2 l3 z1 z3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕    4 20 153   3∕  4 1∕    2 130 110   97   63   22   368   130   170   23   15                                   Compact unit JRG LegioStop for Duofix-washing basin element, 1 counter Consisting of: 2 Armature plates 5459.000, 1 Shut-off unit without counter 5458.045, 1 Shut-off with counter 5458.055, Compact unit not pre-mounted Suitable to: Geberit System Duofix, 111.426.00.1, 111.475.00.1, 111.470.00.1, 111.492.00.1 * Mensural saggar KOAX + m UP-Zähler see 5456.005 * These products are not distributed from us GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕   20  4 5459.065 3  55 566 361   4.520             GN DN b d1 Rp d2 Rp h1 h2 h3 h4 h5 l l2 l3 z1 z3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕                      4 20 153 3∕4 1∕2 130 110 97 63 22 368 130   170   23   15                                 Compact unit JRG LegioStop for Duofix-washing basin element, 2 counters Consisting of: 2 Armature plates 5459.000, 2 Shut-off units with counter 5458.055, Compact unit not pre-mounted Suitable to: Geberit System Duofix* 111.426.00.1, 111.475.00.1, 111.470.00.1, 111.492.00.1 Mensural saggar KOAX + m UP-counter see 5456.005 * These products are not distributed from us GN DN JRG GF Weight [inch] [mm] Code Code [kg]   3∕    4 20 5459.075 3  55 566 362   4.960             GN DN b d1 Rp d2 Rp h1 h2 h3 h4 h5 l l2 l3 z1 z3 [inch] [mm] [mm] [inch] [inch] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]   3∕  4 20   153   3∕  4 1∕  2 130   110   97   63   22   368   130   170   23   15                                   13

Accessories/Spare parts Fixing set for rear for the mounting of concealed valves with fixing flange consisting of: Noise absorbing plate 60° Shore A, Self tapping fixing screws, washer and dished spring suitable to: 5900, 5909, 5910, 5916, 5922, 5924, 5925, 5458.045, 5458.055 d JRG GF Weight b ⎔ [mm] Code Code [kg] [mm]    M6  5  929.001  3  51 062 088    0.025    60    10                     Fixing set for front for the mounting of concealed valves with protection pipe made of plastic, complete assembled holder with distort safety, suitable to: 5900, 5909, 5910, 5916, 5920, 5922, 5924, 5925, 5444 JRG GF Weight b ø ⎔ Code Code [kg] [mm] [mm]  5  929.002 3   51 062 090    0.032    52    60    15                     Spare prefab set for concealed shut off valves from 2009 consisting of: plastic hand wheel rosette chromium plated, closing nut, wall flange with gasket, media marking blue/red Suitable to: 5900, 5909, 5910, 5916, 5920, 5922, 5925, 5444, 5450.045, 5458.055, 5458.058, 5458.065, 5459.075, 5459.058, 5459.065, 5459.075 JRG GF Weight Code Code [kg]  1  062.089 3   51 062 089    0.050            Spare upper part for concealed shut off valves from 2009 with free of death traps upper part JRG Legio- Stop grinded non-rising valve stem and seat made of stainless steel, EPDM gaskets d GN DN JRG GF Weight h hub max. ⎔1 ⎔2 [mm] [inch] [mm] Code Code [kg] [mm] [mm]    M25 x 1.5    1∕ ‐ 1    15 ‐ 25   5995.000 3   51 062 081    0.112      2 25 7    11    18                                 14

Accessories/Spare parts KOAX assembly wrench for single-pipe connectors of KOAX concealed meter, shut-off and compact units as well as concealed measuring capsule +m KOAX meter JRG GF Weight d1 d2 ⎔ Code Code [kg] [mm] [mm]  5456.009  351 511 299   0.567   89   13   36               15
