V6 Small Animals Ultrasound Imaging System

V6 Small Animals Ultrasound Imaging System

01 V6 Appearance overview

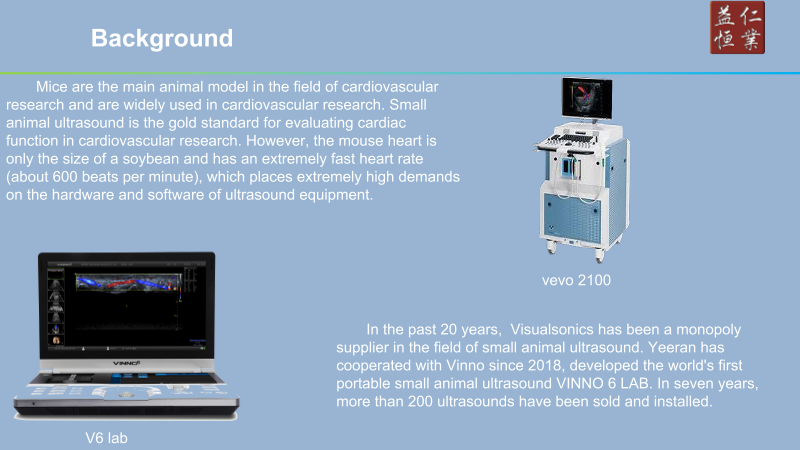

Background Mice are the main animal model in the field of cardiovascular research and are widely used in cardiovascular research. Small animal ultrasound is the gold standard for evaluating cardiac function in cardiovascular research. However, the mouse heart is only the size of a soybean and has an extremely fast heart rate (about 600 beats per minute), which places extremely high demands on the hardware and software of ultrasound equipment. vevo 2100 In the past 20 years, Visualsonics has been a monopoly supplier in the field of small animal ultrasound. Yeeran has cooperated with Vinno since 2018, developed the world's first portable small animal ultrasound VINNO 6 LAB. In seven years, more than 200 ultrasounds have been sold and installed. V6 lab

World-class performance with a thinner and lighter design

Wide-angle Tilting Capability 150° •High resolution flat-panel display with continuously adjustable positioning •Wide viewing angle

Compact Construction Weight: 3.5kg  Thinner and beauty  Easy to carry by integrated handle Probe connector Integrated connector design saves space and adds compatibility across full range of VINNO scanner series Keyboard： Touch-screen QWERTY keyboard

Ergonomic Design • 15.6 inch high resolution LED display • 8-inch touch panel • DICOM 3.0 compatibility 34cm • 2USB ports •Built-in battery for 1 hour independent operation • 250GB SSD provides quick boot up and storage •Supports optional BW or Color printer 38cm 4.7cm Compact, ergonomic design for intuitive workflow

Types of experimental animals Mouse Rat Guinea pig Rabbit Canine Feline Miniature Pig Pig Ovis Equine Others

02 Operat ion interface

New operation mode Traditional operating keyboard  8‘’touch screen  built-in animal measurement packets  one click to select data packet  to improve the consistency of experimental results

User Friendly Interface Intuitive, configurable touch-screen user interface: • 2D mode • CF mode • M Mode • Contrast mode • PW/CW mode • PD mode • Color Doppler mode • Tissue Doppler mode • ECG

Complete functional modules：Cardiac measurement kit

Measurement parameter

03 M a r k e t O v e r v i e w

Market Background V6 sales in the past seven years (Unit) sales 50 45 43 41 40 38 35 35 30 30 25 20 17 15 10 7 5 0 2018 2019 2020 2021 2022 2023 2024 sales 线性 (sales)

Publications α-myosin heavy chain lactylation maintains sarcomeric structure and function and alleviates the development of heart failure CELL RESEARCH 2023.07 44.1 BAF155 promotes cardiac hypertrophy and fibrosis through inhibition of WWP2-mediated PARP1 Cell Discovery 2023.05 38.079 ubiquitination Piezo1-Mediated Neurogenic Inflammatory Cascade Exacerbates Ventricular Remodeling After Myocardial Infarction Circulation 2024.01 37.8 Ultrasound-triggered microbubble destruction enhances the radiosensitivity of glioblastoma by inhibiting PGRMC1-mediated autophagy in vitro and in vivo Military Medical Research 2022.02 34.915 Treatment of infarcted heart tissue via the capture and local delivery of circulating exosomes Nature Biomedical through antibody-conjugated magnetic nanoparticles Engineering 2020.11 29.234

Aadvantages 1. The world's first RF data transmission platform can collect 40 times more original diagnostic data than traditional technology, greatly improving image contrast and resolution. The resolution of the 23MHz probe can reach 75 microns. 2. It is fully functional and can meet the high-resolution imaging and measurement of various parameters of the heart, blood vessels, brain, and abdominal organs. Most of the application functions are free to use. 3. It covers a wide range of animal types. One machine can meet the application needs of all types of experimental animals from mice to dogs and pigs. 4. Data packet operation mode reduces the threshold for use and improves data consistency. 5. Portable model, small footprint/not limited by laboratory environment, and also meets the needs of ultrasound testing in different laboratories. 6. Environmentally friendly, no special room is required, nor does it require special air conditioning and dehumidification systems.

VINNO 6 LAB VS vevo 2100

VINNO 6 LAB VS vevo 2100

VINNO 6 LAB VS vevo 2100
