P L A T U L A R ® W E L D E D P L A T E H E A T E X C H A N G E R S S O L U T I O N S To control your energy, focus on heat transfer Zoé communication • www.zoe.fr

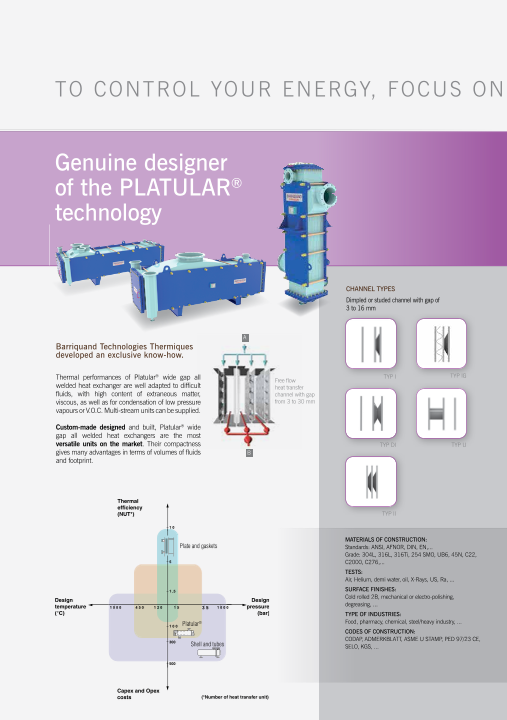

TO CONTROL YOUR ENERGY, FOCUS ON HEAT TRANSFER Genuine designer of the PLATULAR® technology CHANNEL TyPES Dimpled or studed channel with gap of 3 to 16 mm A Barriquand Technologies Thermiques developed an exclusive know-how. Thermal performances of Platular® wide gap all TYP I TYP IG Free flow welded heat exchanger are well adapted to difficult heat transfer fluids, with high content of extraneous matter, channel with gap viscous, as well as for condensation of low pressure from 3 to 30 mm vapours or V.O.C. Multi-stream units can be supplied. Custom-made designed and built, Platular® wide gap all welded heat exchangers are the most versatile units on the market. Their compactness TYP DI TYP U gives many advantages in terms of volumes of fluids B and footprint. Thermal efficiency (NUT*) TYP II 1 0 MATERIALS Of CONSTRUCTION: Plate and gaskets Standards: ANSI, AFNOR, DIN, EN,... Grade: 304L, 316L, 316Ti, 254 SMO, UB6, 45N, C22, 5 C2000, C276,... TESTS: Air, Helium, demi water, oil, X-Rays, US, Ra, ... 1 ,5 SURfACE fINISHES: Design Design Cold rolled 2B, mechanical or electro-polishing, temperature 1 0 0 0 4 5 0 1 52 0 1 5 3 5 1 0 0 0 pressure degreasing, ... (°C) (bar) TyPE Of INDUSTRIES: Platular® Food, pharmacy, chemical, steel/heavy industry, ... 1 0 0 CODES Of CONSTRUCTION: 300 CODAP, ADMERKBLATT, ASME U STAMP, PED 97/23 CE, Shell and tubes SELO, KGS, ... 500 Capex and Opex costs (*Number of heat transfer unit)

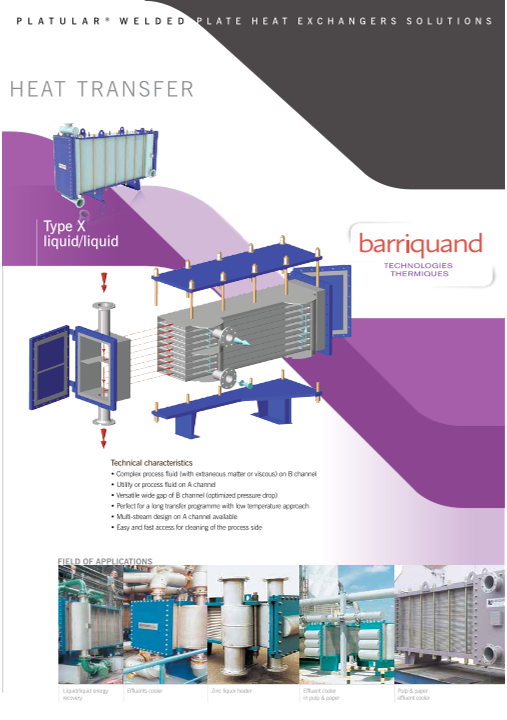

P L A T U L A R ® W E L D E D P L A T E H E A T E X C H A N G E R S S O L U T I O N S TO CONTROL YOUR ENERGY, FOCUS ON HEAT TRANSFER Type X liquid/liquid Technical characteristics • Complex process fluid (with extraneous matter or viscous) on B channel • Utility or process fluid on A channel • Versatile wide gap of B channel (optimized pressure drop) • Perfect for a long transfer programme with low temperature approach • Multi-stream design on A channel available • Easy and fast access for cleaning of the process side FIELD oF appLICatIons Liquid/liquid energy Effluents cooler Zinc liquor heater Effluent cooler Pulp & paper recovery in pulp & paper effluent cooler

TO CONTROL YOUR ENERGY, FOCUS ON HEAT TRANSFER Type X 4 doors liquid/liquid Technical characteristics • Complex process fluid (with extraneous matter or viscous) on B channel • Utility or process fluid on A channel • Versatile wide gap of B channel (optimized pressure drop) • Individual optimization of passes numbers for each stream • Perfect for a long transfer programme with low temperature approach • Multi-stream design on A channel available • Four doors for an easy access on both streams • Easy and fast access for cleaning of the process sides FIELD oF appLICatIons Platulaire® type X 4 doors Platulaire® type X Platulaire® type X 4 doors on distillery vinasses 4 doors on white liquor in pulp & paper

P L A T U L A R ® W E L D E D P L A T E H E A T E X C H A N G E R S S O L U T I O N S TO CONTROL YOUR ENERGY, FOCUS ON HEAT TRANSFER Type X heater / condenser A Technical characteristics • Complex process fluid (with extraneous matter or viscous) on B channel • Condensation of the utility fluid on A channel • Versatile wide gap of B channel (optimized pressure drop) • Individual optimization of passes numbers for each stream • Perfect for a long transfer programme with low temperature approach • Multi-stream design on A channel available • Easy and fast access for cleaning of the process side FIELD oF appLICatIons Low pressure vapour Multi-stream sugar juice heater V.O.C. condenser 6 Platular® on condenser condensation column 15 m high

TO CONTROL YOUR ENERGY, FOCUS ON HEAT TRANSFER Type X condenser B Technical characteristics • Condensation of the process fluid on B channel • Utility fluid on A channel • Versatile wide gap of B channel (optimized pressure drop) • Individual optimization of passes numbers for each stream • Perfect for a long transfer programme with low temperature approach • Multi-stream design on A channel available • Easy and fast access for cleaning of the process sides FIELD oF appLICatIons Solvent condenser Column condenser Condenser on methionine reactor

P L A T U L A R ® W E L D E D P L A T E H E A T E X C H A N G E R S S O L U T I O N S Barriquand Technologies Thermiques is a worldwide leader in Heat transfer technology. Barriquand is able to generate innovative solutions for TO CONTROL YOUR ENERGY, FOCUS ON HEAT TRANSFER customers among many kind of Industries (Chemical, petrochemical, pharmaceutical, Food,…) Barriquand is recognized to provide reliable and versatile heat transfer units since several decades now for a wide range of various applications Type Worldwide expertise IJS / IJMASC in heat transfer for more than 75 years Custom-made design • Heating area: 0.1 to 1,000 m² • Pressure up to 40 bar • Multi-stream available Standard design • Heating area: 0.7 to 14 m² • Design pressure: 12 or 20 bar • Application when fluids can be chemically cleaned only • Horizontal or vertical lay-out • High thermal efficiency • Special design with expansion bellow Applications: compressed gas • chemicals • environment •urban hea- FIELD oF appLICatIons ting • air conditioning • loaded fluids • liquids for human consumption • food processing • refining • petrochemicals • energy • thermodynamics • domestic hot water • paper mills • viscous fluids • condensation • marine • pharma- ceuticals • sugar refining • fluid networks • bitumen • power generation • refrigeration • reheating • evaporation • liquefied gas • fuel oil • distillation … Removable plate-pack for easy access Cryogenic condenser to the process channel

The group With a a total staff of 250 people, the Barriquand group consists of four companies, specialized in specific product lines, all related to heat transfer technologies. Each company has an independent structure, a unique expertise in various fields and offers complementary products to provide top quality answers for our national and international client’s benefit. • Barriquand Technologies Thermiques: Thermal engineering consultancy and services, marketing of heat exchanger solutions. • A SET: design and manufacture of shell & tube heat exchangers • B arriquand Échangeurs: design and manufacture of plate heat exchangers, creator of Platular® heat exchangers • Steriflow Thermal Processing: one of the world’s leading sterilisation companies. Design and manufacture of sterili- sation autoclaves. Head office Export office 9 à 13, Rue Saint-Claude 114, rue C. Demblon F- 42334 ROANNE Cedex B -4630 SOUMAGNE Phone 33 (0)4 77 44 22 20 Phone 32 (0)4 377 42 49 www.barriquand.com/en Fax 33 (0)4 77 44 22 29 Fax 32 (0)4 377 49 74 info@barriquand.com export@barriquand.com Zoé communication • www.zoe.fr
