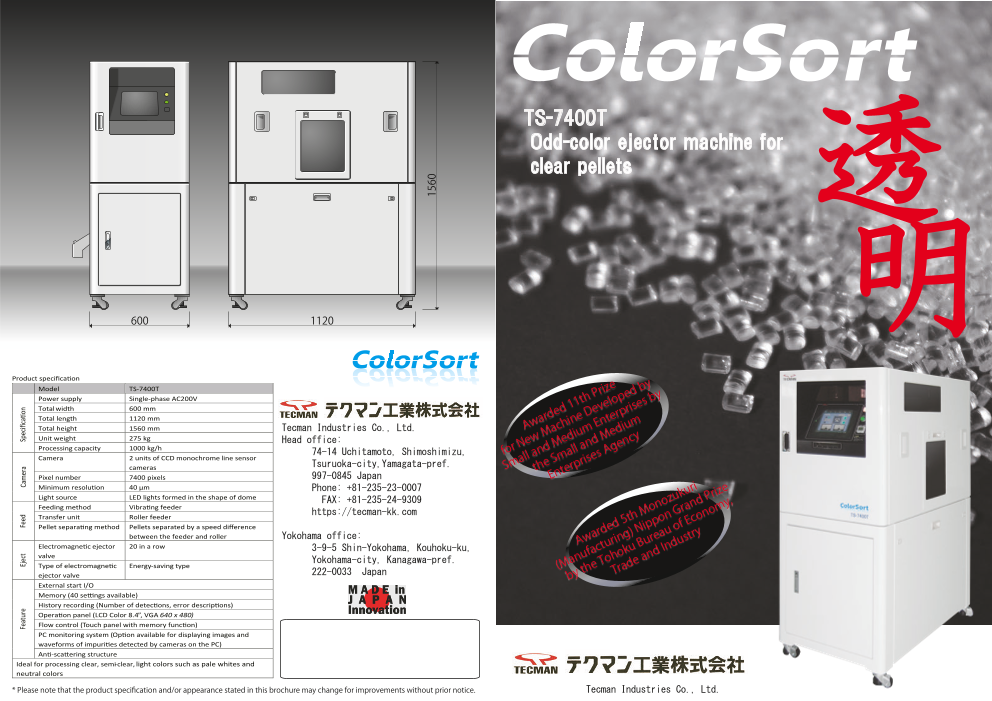

カタログの表紙
カタログの表紙

Download this catalog and see all

Download(1.6Mb)

TS-7400T Color Sorter for transparent and light-colored plastic pellets

Product Catalog
Tecman Industries Co., Ltd.
Contact Us
Phone inquiry

Plastic sorting machine for both clear and white pellets

Features:
-In addition to light-colored resins, this model can also sort out foreign matter from transparent resins, which has been difficult with conventional machines.

-Two cameras detects foreign matter such as burns, black spots, and discoloration on resin pellets and removes them with an air ejector.

-The high-performance cameras with a theoretical resolution of 40 microns can detect even the smallest black spots.

-The maximum processing capacity is 1000 kg/h. Models for 3000 kg/h are also available.

-Our original free-fall method enables sorting of various materials regardless of pellet shape.

-Save space and can be installed either in-line or out-of-line.

-The touch panel allows easy operation such as sensitivity setting.

-The cover and other parts can be removed without tools for easy maintenance.

Sales:
Petrochemical companies, compound manufactures, molding manufactures, recycling companies and so on.

Example of materials that our color sorter can sort:
PA, PBT, PE, PP, POM, LCP, PPS, TPE, ABS, PC, PES, PET, fluororesins, biodegradable resins, recycled pellets, PET flakes, crushed products, marble etc.

Uses:
*Petrochemical companies and compounders
-Installed in processing lines that produce easily combustible pellets to prevent contamination by defective pellets.

*Molding manufactures
-Installed in front of the molding machine to prevent molding defects caused by raw materials and improve yield.

*Recycle companies
-Improves quality by sorting out foreign matter such as label fragments from PET flakes.

We also offer sorting performance tests using actual equipment.
For details, please contact us directly through the inquiry box on our website.

Tecman Industries WEB site
https://tecman-kk.com/en/top/

Contact page for sorting machines
https://tecman-kk.com/en/contact/

Movie

Document Information

Document Title TS-7400T Color Sorter for transparent and light-colored plastic pellets
Document Type Product Catalog
File size 1.6Mb
Category
Company Tecman Industries Co., Ltd. (Documents List)

Documents related to this company

この企業の関連カタログの表紙
TS-7400L Color Sorter for white and natural-colored plastic pellets
Product Catalog

Tecman Industries Co., Ltd.

この企業の関連カタログの表紙
General Catalog of Color Sorters
Product Catalog

Tecman Industries Co., Ltd.

Document Contents

Page1

7400T-表 - コピー

TS-7400T Odd-color ejector machine for clear pellets Product specifica�on Model TS-7400T Priz e d by Power supply Single-phase AC200V 1th lope s by Total width 600 mm ed 1 Deve prise Total length 1120 mm ard ine nter m Total height 1560 mm Tecman Industries Co., Ltd. Aw Mac h ium E ediu Unit weight 275 kg Head office: New Med M r and genc y Processing capacity 1000 kg/h 　　　74-14 Uchitamoto, Shimoshimizu, fo nd all A Camera 2 units of CCD monochrome line sensor all a Sm rises cameras 　　　Tsuruoka-city,Yamagata-pref. Sm the terp Pixel number 7400 pixels 　　　997-0845 Japan En Minimum resolu�on 40 μm Phone: +81-235-23-0007 uri ze Light source LED lights formed in the shape of dome k ri 　　　 FAX: +81-235-24-9309 ozu d P , Feeding method Vibra�ng feeder on Gran omy Transfer unit Roller feeder https://tecman-kk.com M ded 5th Nipp on of Ec on Pellet separa�ng method Pellets separated by a speed difference u between the feeder and roller Yokohama office: war ring) urea ustry Electromagne�c ejector 20 in a row A 3-9-5 Shin-Yokohama, Kouhoku-ku, factuu oku B valve d Ind Yokohama-city, Kanagawa-pref. an oh an Type of electromagne�c Energy-saving type (M e T ade ejector valve 　　　222-0033　Japan by th Tr External start I/O Memory (40 se�ngs available) History recording (Number of detec�ons, error descrip�ons) Opera�on panel (LCD Color 8.4”, VGA 640 x 480) Flow control (Touch panel with memory func�on) PC monitoring system (Op�on available for displaying images and waveforms of impuri�es detected by cameras on the PC) An�-sca�ering structure Ideal for processing clear, semi-clear, light colors such as pale whites and neutral colors * Please note that the product specification and/or appearance stated in this brochure may change for improvements without prior notice. 　　　Tecman Industries Co., Ltd. Feature Eject Feed Camera Specifica�on
Page2

7400T-裏_Ocs2 - コピー

TS-7400T Perfect for screening 100% clear plastic pellets! Dome-shaped LEDs + Roller pushing pellets straight down User friendly interface ●　LED lights formed in a dome shape minimize optical refraction. ●　LED lights having a longer life are fitted. ●　 ● The auto-setting screen lets you set Since the roller pushes pellets straight down, they are not affected by hardly any 　 detection sensitivity as you like 　 　friction, regardless of the material. ●　 　 (1 to 255). SUS304 is used for areas that come in contact with the pellets (possible to apply ● The screening condition screen allows 　　 hardening treatment) ●　 Auto-setting screen Screening condition screen 　 you to store 40 different conditions. Pellets can be discharged to the right, left or straight down through a chute. ● The last 32 detections can be reviewed on the history screen. ● The last 19 errors can be reviewed on the error history screen. History screen Error history screen Design to process clear and pale white pellets Structure diagram ●Ideal for screening not only clear pellets but also pale whites and neutral colors Feed hopper Good　　　Reject Good　　　Reject Roll feeder Vibrating feeder Line sensor camera Good　　　Reject Good　　　Reject Line sensor camera Air ejector Reject Good　　　Reject Good　　　Reject Good
