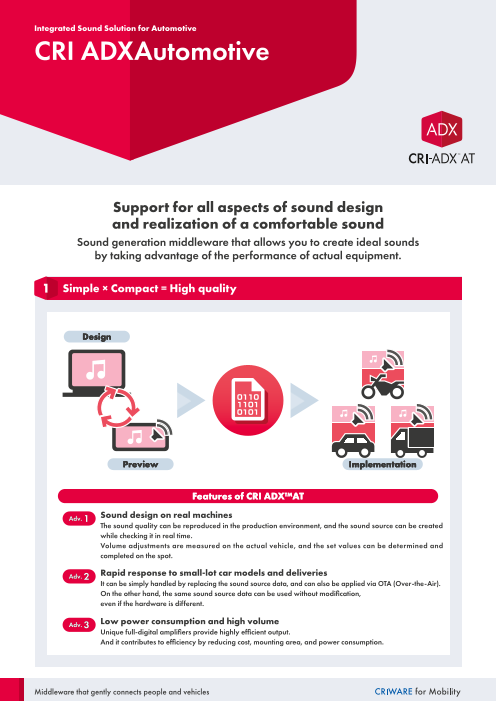

Integrated Sound Solution for Automotive
CRI ADXAutomotive
Support for all aspects of sound design
and realization of a comfortable sound
Sound generation middleware that allows you to create ideal sounds
by taking advantage of the performance of actual equipment.
1 Simple × Compact = High quality
Design
0110
1101
0101
Preview Implementation
Features of CRI ADX™AT
Adv. 1 Sound design on real machines
The sound quality can be reproduced in the production environment, and the sound source can be created
while checking it in real time.
Volume adjustments are measured on the actual vehicle, and the set values can be determined and
completed on the spot.
Adv. 2 Rapid response to small-lot car models and deliveries
It can be simply handled by replacing the sound source data, and can also be applied via OTA (Over-the-Air).
On the other hand, the same sound source data can be used without modification,
even if the hardware is different.
Adv. 3 Low power consumption and high volume
Unique full-digital amplifiers provide highly efficient output.
And it contributes to efficiency by reducing cost, mounting area, and power consumption.
Middleware that gently connects people and vehicles
2 Support at all stages of audio production
Comprehensive support for mobility sound development — from planning to tuning — backed by deep expertise.
We collaborate closely with clients to deliver optimal sound, with speed and flexibility at every stage.
Sound Design Sound Adjustment Integration Output Adjustment
Specification creation support Data creation support Software development support Sound quality improvement support
Helping shape Based on the design and We support customization We help create the ideal
next-generation vehicle sound specifications, the sound according to each device sound environment
with a focus on source is tuned and imported, and its requirements, by fine-tuning volume
safety and user experience the behavior is set up, and the and support and enhancing sound quality
and technical complexity. data is created and tested. middleware embedding. on real devices and vehicles.
3 Output with only a SoC & an H-bridge circuit
The patented technology "CRI D-Amp Driver™" is middleware that directly drives speakers in full digital, without
the need for a DAC or amplifier, operating solely with an H-bridge circuit to enable high-volume playback.
Efficiency
CRI D-AMP
Class A B
Audio Switching Driver
with Load Diagnostics (U.D.)
DFN2323-8 VPS-8 NA1150 Series
Output
• Enables loud playback without a DAC. • Compact design with fewer external components
• Low cost thanks to fewer components. • Reliable and space-saving for sound and voice
• No power consumption when idle, minimal heat loss. applications
Improved User Experience with CRI Glassco™
By creating interfaces that link video and sound with
CRI Glassco, information about the vehicle can be
conveyed to the user faster and more accurately.
Case studies Safety & Compliance Further Info
Meter cluster panel ISO26262 compliance
Electronic toll system on-board equipment Automotive SPICE compliance
Acoustic Vehicle Alerting System Coming soon
As of July 2025
