ED400R3GG-160A

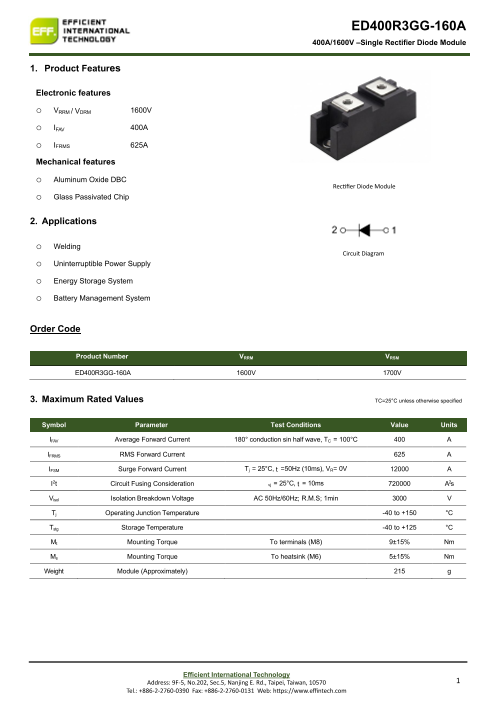

ED400R3GG-160A 400A/1600V –Single Rectifier Diode Module 1. Product Features Electronic features o VRRM / VDRM 1600V o IFAV 400A o IFRMS 625A Mechanical features o Aluminum Oxide DBC Rectifier Diode Module o Glass Passivated Chip 2. Applications o Welding Circuit Diagram o Uninterruptible Power Supply o Energy Storage System o Battery Management System Order Code Product Number VRRM VRSM ED400R3GG-160A 1600V 1700V 3. Maximum Rated Values TC=25°C unless otherwise specified Symbol Parameter Test Conditions Value Units IFAV Average Forward Current 180° conduction sin half wave, TC = 100°C 400 A IFRMS RMS Forward Current 625 A IFSM Surge Forward Current Tj = 25°C, t =50Hz (10ms), VR= 0V 12000 A I2t Circuit Fusing Consideration vj = 25°C, t = 10ms 720000 A2s Visol Isolation Breakdown Voltage AC 50Hz/60Hz; R.M.S; 1min 3000 V Tj Operating Junction Temperature -40 to +150 °C Tstg Storage Temperature -40 to +125 °C Mt Mounting Torque To terminals (M8) 9±15% Nm Ms Mounting Torque To heatsink (M6) 5±15% Nm Weight Module (Approximately) 215 g Efficient International Technology Address: 9F-5, No.202, Sec.5, Nanjing E. Rd., Taipei, Taiwan, 10570 1 Tel.: +886-2-2760-0390 Fax: +886-2-2760-0131 Web: https://www.effintech.com

ED400R3GG-160A 400A/1600V –Single Rectifier Diode Module 4. Thermal Characteristics Symbol Parameter Test Conditions Value Units Rth(j-c) Thermal Impedance, max Junction to Case (Per Diode) 0.075 °C/W Rth(c-s) Thermal Impedance, max Case to Heatsink 0.05 °C/W 5. Electrical Characteristics Value Symbol Parameter Test Conditions Units Min Typ. Max. VFM Forward Voltage Drop, max. T=25°C, IF=1200A - - 1.60 V Tj =25°C, VR = VRRM - - 0.1 mA IRRM Repetitive Peak Reverse Current, max Tj =150°C, VR = VRRM - - 20 mA Threshold Voltage, for power loss calculation VT0 Tj =125°C 0.90 V only Slope Resistance, for power loss calculation rT Tj =125°C 0.60 mΩ only Efficient International Technology Address: 9F-5, No.202, Sec.5, Nanjing E. Rd., Taipei, Taiwan, 10570 2 Tel.: +886-2-2760-0390 Fax: +886-2-2760-0131 Web: https://www.effintech.com

ED400R3GG-160A 400A/1600V –Single Rectifier Diode Module 6. Performance Curve Efficient International Technology Address: 9F-5, No.202, Sec.5, Nanjing E. Rd., Taipei, Taiwan, 10570 3 Tel.: +886-2-2760-0390 Fax: +886-2-2760-0131 Web: https://www.effintech.com

ED400R3GG-160A 400A/1600V –Single Rectifier Diode Module 7. Package Outline Dimensions in mm Efficient International Technology Address: 9F-5, No.202, Sec.5, Nanjing E. Rd., Taipei, Taiwan, 10570 4 Tel.: +886-2-2760-0390 Fax: +886-2-2760-0131 Web: https://www.effintech.com
